4G LTE & Calls - 2000m2 (TIM/Claro/Oi/Algar) Cell Phone Signal Booster
Enhanced 4G LTE & Calls
Our booster optimizes signal for 4G LTE and voice calls, enabling clear communication on both 900MHz and 1800MHz frequencies. Experience seamless connectivity with major Brazilian carriers like TIM, Claro, Oi, and Algar, ensuring uninterrupted calls and swift data transfer.
Expansive Coverage Area
Covering up to 2,000 m², this high-performance booster is ideal for large homes, offices, and even production warehouses. Ensure that every corner of your space maintains excellent signal strength for all users, no matter their mobile network.
Dual Band Support
This versatile dual band booster operates on both 900MHz and 1800MHz frequencies, enhancing coverage for GSM networks simultaneously. Perfectly suited for households with multiple users across different mobile networks, ensuring everyone stays connected.
Clear Voice & Reliable Connections
Never miss an important call again! Our booster eliminates dropped calls while enhancing voice clarity. It also offers a rock-solid 4G LTE connection, allowing for smoother video calls and seamless downloads.
Comprehensive Installation Kit
The booster kit comes complete with all necessary components for easy installation. Enjoy a hassle-free setup process with everything included: external and internal antennas, cables, and a power adapter — all in one price.
Upgrade Options Available
Customize your signal boosting experience with upgrade options available for external cables, antennas, and surge protectors. Enhance performance further based on your specific needs, ensuring the best possible signal reception and protection.
It boost 4G LTE and Calls signal on 900MHz, 1800MHz frequencies, the frequencies used in Brazil used by mobile networks to deliver their mobile services: 2G (also known as GSM) and 4G. It work on both 900Mhz (Band 8) & 1800Mhz (Band 3) frequencies mainly used for improving TIM, Claro, Oi and Algar mobile carrier Voice Calls, Text and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use voice calls and text. It is a high-performance booster, boost indoor signal cover an area up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
The booster enhances cell signals is a low-cost amplifier that wirelessly enhances cell signals for cellular devices (smartphones, tablets, Kindle, etc). It provides stronger signals, longer battery life, and clear connections to your phone. This device will boost mobile providers' 2G 900MHz, and 2G and 4G LTE 1800MHz (Band 8/3) network signal.
This system is compatible with all GSM mobile phone networks, will provide coverage on both 900MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
No Miss Important Calls
Wow 2G/4G Calls
Eliminates Dropped Calls
SMS Text Messages Quickly
Consistent Connection
Reliable 4G/LTE Data
Reception Up to 2,000 sq.m.
4G/LTE Internet
Faster Uploads & Downloads
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G/LTE & Calls] (Band 8/3) |
| Country | Brazil |
| Boost All On | TIM (4G & 2G) Claro (4G & 2G) Oi (4G & 2G) Algar (4G & 2G) Nextel (4G) Vivo (4G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 8 & 3 |
| Frequency | 900 & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 890~915 MHz; 1710~1785 MHz |
| Down-link | 935~960 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

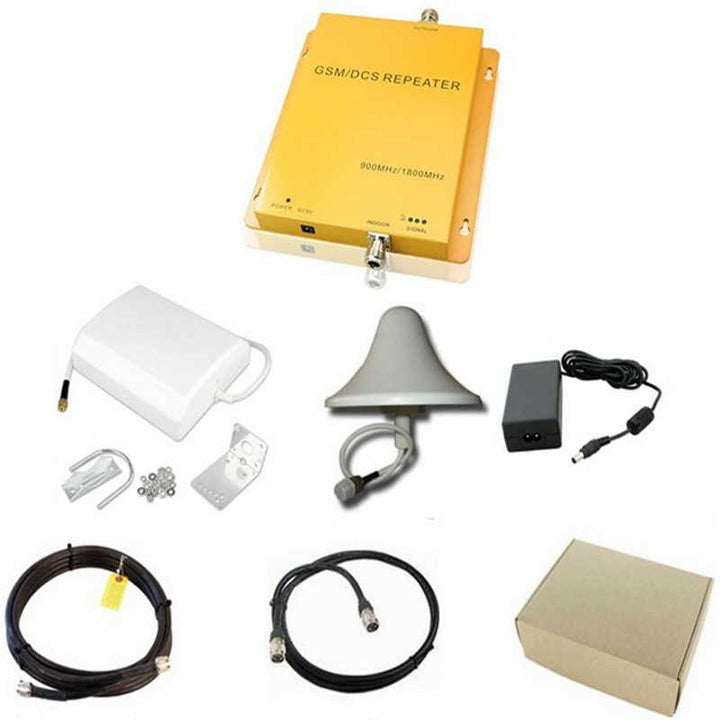

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE cell phone signal booster? - A 4G LTE cell phone signal booster is a device that helps improve your phone's signal strength. It works like a magic box that takes weak signals from outside and makes them stronger inside your home or office. This means you can make clearer calls, send text messages faster, and enjoy better internet connection.
- Will the booster work for all mobile networks? - Yes, this booster is compatible with all GSM mobile networks in Brazil, including TIM, Claro, Oi, and Algar. It can enhance signal for both 2G and 4G connections. So, if different people in your home use different providers, this booster can help everyone!
- How much area can the booster cover? - This signal booster can cover an area of up to 2,000 square meters. That's like making sure your entire big house, office, or even a hotel has good phone signal! So whether you're working or relaxing, you can stay connected.
- Do I need a special phone for the booster to work? - If your phone is 4G-ready or supports 4G Calling (also known as VoLTE), you will benefit the most from this booster. Even if you're not in a 4G area, you can still make voice calls and send texts.
- Can I install the booster myself? - Yes! The booster kit comes with everything you need for installation, including antennas and cables. You just need to follow the instructions, and you can set it up without needing professional help.
- What if there’s no signal outside? - The booster needs some signal from outside to work. If there is zero signal from your mobile network, the booster won’t be able to help. You may need to check in a place where there is at least a little signal.
- What is the Band Checker and how do I use it? - The Band Checker helps you find out the frequency your phone uses, which is important for knowing if the booster will work for you. For iPhone users, dial *3001#12345#* and check 'Freq Band Indicator' to find out if it shows Band 8 or 3.
- What comes in the booster kit? - The booster kit includes a booster unit, an outdoor antenna, an indoor antenna, a power adapter, and cables needed for installation. Everything you need is in one package, making it easy to set up!
- Can I upgrade the equipment that comes with the booster? - Absolutely! You can upgrade to longer cables or a higher gain antenna for better performance if your signal is weak indoors. There are also options for lightning surge protectors to keep your equipment safe.
- How does a signal booster help with battery life? - By boosting the signal strength, the booster helps your phone connect better with networks. This means your phone doesn't have to work as hard to find a signal, which can lead to longer battery life.
