4G LTE - 300m2 (Celcom/Maxis/DiGi/Tune Talk) Mobile Signal Booster
Boost Your 4G LTE Signal
Experience enhanced connectivity with our 4G LTE mobile signal booster, designed specifically for the 1800MHz frequency. Perfect for Celcom, Maxis, DiGi, and Tune Talk networks, it boosts 4G signals effectively across a range of up to 300m², ensuring smooth internet usage in homes, cafes, and small businesses.
Reliable and Consistent Connection
Say goodbye to dropped calls and slow internet speeds. Our mobile signal booster ensures a reliable 4G LTE data connection that you can depend on, allowing for fast uploads, downloads, and seamless streaming, whether you're working from home or enjoying a movie.
Complete Kit for Easy Installation
The 4G LTE signal booster kit comes with everything you need for a hassle-free installation. Included in the package are the external aerial, booster base unit, internal antenna, cables, and power adapter, all for one price. Simply follow our easy installation guide and enjoy stronger signals in no time.
Customized Options for Your Needs
Personalize your booster setup with optional upgrades for longer external cables and higher-gain antennas. Tailor your installation to achieve optimal performance based on your specific signal strength and coverage requirements, ensuring the best connection in every corner of your space.
Supports Multiple Users Simultaneously
Designed to cater to the needs of busy households or small businesses, this mobile signal booster can support up to 30 users simultaneously. Enjoy fast and efficient communication without worrying about connectivity issues, no matter how many devices are connected.
Lightweight and Compact Design
Our mobile signal booster not only delivers powerful performance but also features a sleek and compact design that fits seamlessly into your environment. Its unobtrusive presence allows it to blend into various settings, making it an excellent addition to any home or office.
It boost 4G LTE signal on 1800MHz frequency, the frequency used in Malaysia used by mobile networks to deliver their mobile services: 4G. It work on 1800Mhz (Band 3) frequency for improving Celcom, Maxis, DiGi and Tune Talk mobile carrier networks 4G LTE signal. It is the best suitable for medium size, boost indoor signal areas up to 300 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 300 sq.m.

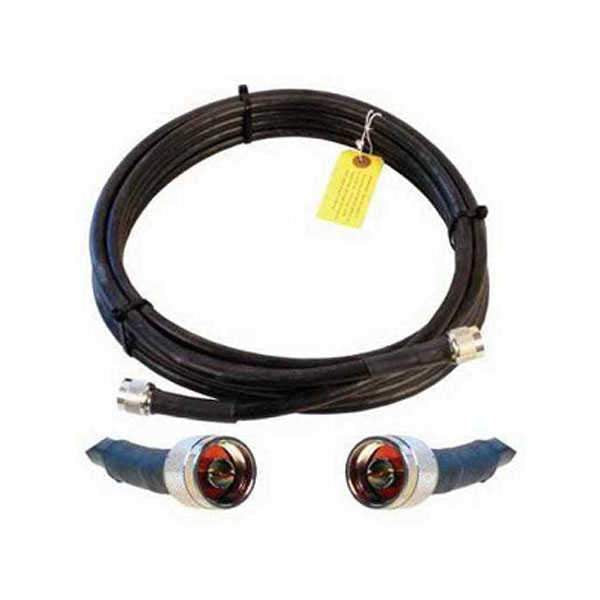

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G LTE] (Band 3) |
| Country | Malaysia |
| Boost All On | Celcom (4G) Maxis (4G) DiGi (4G) Tune Talk (4G) |
| Users Supporting | 30 Simultaneously |
| Band | Single Band 3 |
| Frequency | 1800MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 1710~1785 MHz |
| Down-link | 1805~1880 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

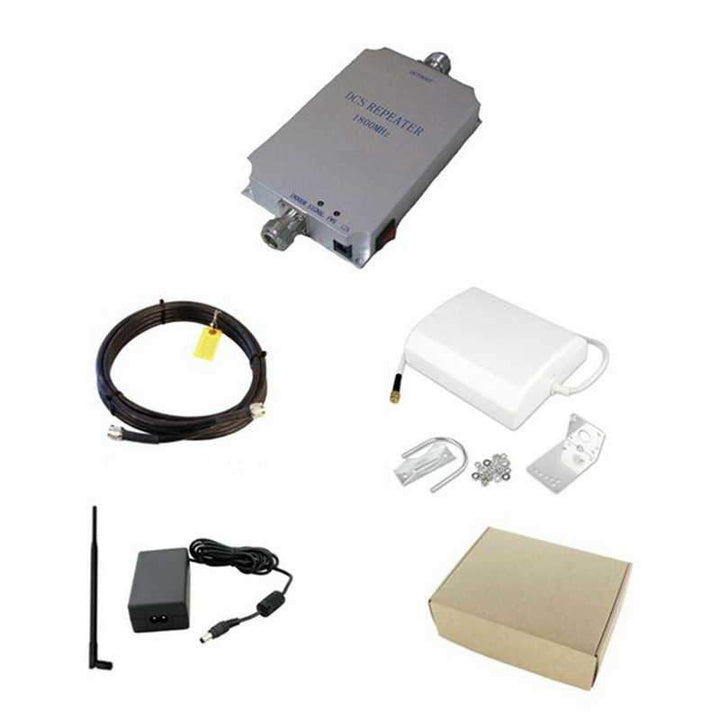

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

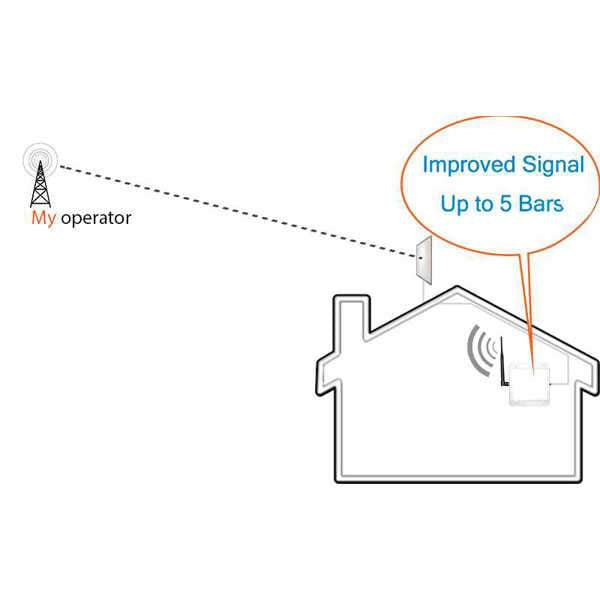

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a Mobile Signal Booster? - A mobile signal booster is a device that helps improve weak mobile signals. It does this by taking the existing signal from outside, boosting it, and then redistributing it inside your home or office. This is great for places with a poor signal, allowing you to make calls and use the internet more reliably.
- How does the 4G LTE Mobile Signal Booster work? - The 4G LTE Mobile Signal Booster works by amplifying the mobile signals from your provider (like Celcom, Maxis, DiGi, and Tune Talk). It specifically boosts signals on the 1800MHz frequency, which is commonly used for 4G services in Malaysia. However, it's important to note that it can only enhance existing signals and cannot create a signal if there isn't one available outside.
- How much area does the booster cover? - The 4G LTE Mobile Signal Booster can cover an area of up to 300 square meters. This makes it perfect for medium-sized spaces like homes, cafes, restaurants, and even offices. With this booster, you can enjoy better mobile signals throughout the specified area.
- Can I install the booster myself? - Yes, the installation of the mobile signal booster is designed to be user-friendly. The kit includes all necessary components, and you can follow simple steps for installation. It's recommended to do a "loose" installation first to find the best locations for the antennas and cables before securing everything in place.
- What if I have no signal outside? - If there is no mobile signal outside your home, the booster won't be able to help you. The device amplifies existing signals, so it's essential to have a weak signal available outside to boost it indoors. You can check your signal strength outside before purchasing the booster.
- Is the mobile signal booster compatible with all networks? - The 4G LTE Mobile Signal Booster is specifically designed to work with the Celcom, Maxis, DiGi, and Tune Talk networks in Malaysia. If you are using a different mobile provider, it’s important to check if this particular model is compatible with your network before purchasing.
- What is included in the booster kit? - The mobile signal booster kit comes complete with all the items you need for installation. It includes an external antenna, an indoor antenna, cables, the booster base unit, and a power adapter. This means you won't have to buy anything else separately.
- How can I test my signal strength? - You can test your mobile signal strength by using your phone. Dial *3001#12345#* and hit the call button. Then, select 'Serving Cell Info' to see your 'Freq Band Indicator'. Alternatively, you can use apps like CellMapper or Network Signal Info Pro to check the signal strength.
- What if I need longer cables? - If the standard 10-meter external cable included in the kit isn't long enough for your needs, you have the option to upgrade to longer cables. You can select from options like 20 meters, 30 meters, 40 meters, or even 50 meters during your purchase.
- What is a lightning surge protector? - A lightning surge protector is an accessory that helps protect your signal booster from damage that can occur due to lightning strikes. It safeguards the equipment from high amperage surges, ensuring your booster remains functional even during storms. You can opt to add this to your order for extra protection.
