4G LTE & Calls - 1000m2 (Ooredoo/Vodafone) Mobile Signal Booster
Enhanced 4G Connectivity
Experience unparalleled connectivity with our 4G LTE & Calls mobile signal booster. It operates on both 800MHz and 1800MHz frequencies, significantly enhancing Ooredoo and Vodafone services. Enjoy high-speed data and crystal-clear voice calls even in low-signal areas.
Wide Coverage Range
With the ability to cover an impressive area of up to 1,000 m², our booster is perfect for large homes, offices, hotels, and warehouses. Ensure that every corner of your space enjoys a strong and reliable mobile signal.
Dual Band Functionality
Our device is specially designed as a Dual Band booster, effectively amplifying signals for both 4G and 2G networks. This means that regardless of your mobile network provider, everyone in your household can enjoy a stable connection.
Easy Installation
The booster kit comes complete with all necessary components, including an external aerial, cables, and an indoor unit. Simple installation allows you to start enjoying improved signal strength in no time!
Versatile Compatibility
Not only does our booster enhance your existing signal, but it also offers support for 100 simultaneous users, making it ideal for busy households or workplaces where multiple devices need reliable connectivity.
Upgrade Options Available
For tailored solutions, we provide upgrade options such as longer external cables and lightning surge protectors. Ensure your booster performs optimally in all conditions while safeguarding your equipment from surges.
It boost 4G LTE and Calls signal on 800MHz, 1800MHz frequency, the frequencies used in Qatar used by mobile networks to deliver their mobile services: 4G and 2G (also known as GSM). It work on both 800Mhz (Band 20) & 1800Mhz (Band 3) frequencies for improving Ooredoo and Vodafone mobile carrier networks 4G LTE, Voice Calls and Texts signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. The booster is a high-performance booster, boost indoor signal cover an area of up to 1,000 m2, great for large house, offices, hotel, warehouse and more.
The system is designed for universal 4G coverage. Unlike other kits this device will boost ALL mobile providers' 4G LTE, the solution will provide coverage on on both 800MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 4G/LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 1,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

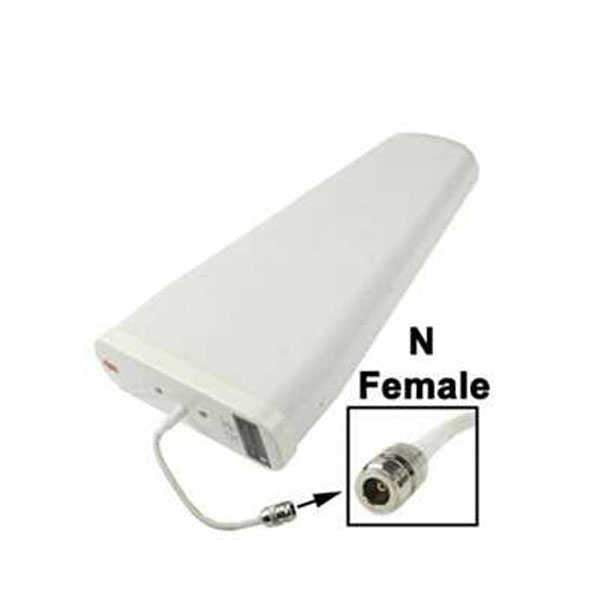

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE & Voice Calls] (Band 20, 3) |
| Country | Qatar |
| Boost All On | Ooredoo (4G & 2G) Vodafone (4G & 2G) |
| Users Supporting | 100 Simultaneously |
| Band | Dual Band 20 & 3 |
| Frequency | 800MHz & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz; 1710~1785 MHz |
| Down-link | 791~821 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

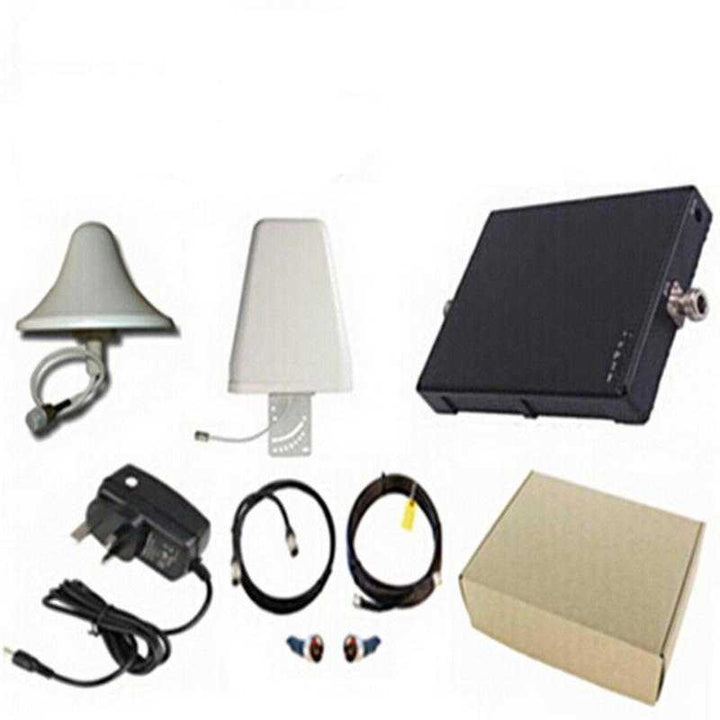

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE & Calls Booster? - A 4G LTE & Calls booster is a device that strengthens your mobile signal. It helps improve 4G LTE services, which means you can make clearer calls, send texts faster, and enjoy better internet on your phone. This particular booster works with mobile networks in Qatar, mainly Ooredoo and Vodafone, and covers a large area of up to 1,000 square meters.
- How does the booster work? - The booster captures weak signals outside and amplifies them inside your home or office. It works with two frequencies—800MHz and 1800MHz—allowing it to boost signals from different mobile providers at the same time. It’s like having a friend helping your phone to hear better, making sure you don’t miss important calls.
- Who can benefit from using this booster? - This mobile signal booster is great for anyone who struggles with weak signals at home. If you have family members or colleagues using different mobile networks, this device will help improve their signals too. It's ideal for large spaces like homes, offices, hotels, and warehouses, ensuring everyone stays connected.
- Can I install the booster myself? - Yes, you can easily install the booster yourself! The kit comes with all the parts you need, including antennas and cables. As long as you follow the instructions provided, you should have no trouble setting it up. Just keep in mind that you need a cell signal outside for the booster to work.
- What is a band checker, and how do I use it? - A band checker is a simple tool to see what frequency your mobile phone is using. You can check if it’s using Band 20 or Band 3, which are important for the booster to work best. For iPhone users, there’s a special code to dial. You can also use apps like 'CellMapper' to find this information.
- What should I do if the booster doesn’t work? - If the booster isn't working, the first thing to check is whether there's a signal outside. The booster amplifies existing signals; it can't create one. If there’s no signal outside, the booster won't help. Make sure your outdoor antenna is placed correctly to receive the best signal possible.
- What accessories can I upgrade with this booster? - You can upgrade components like the external cables if the standard length isn’t enough for your area. There's also an option for a lightning surge protector to protect your equipment from storms. These upgrades help ensure your booster works well and lasts longer.
- How many users can connect to the booster at once? - The 4G LTE & Calls booster can support up to 100 users simultaneously. This means that if you have a large family or office, everyone can enjoy improved signal strength without any issues!
- Is there a warranty or guarantee for the product? - Most mobile signal boosters come with a warranty that protects against defects and ensures you get a working device. It's important to check the specific terms and conditions when you purchase to understand what is covered.
- What do the numbers dBm refer to in the specifications? - The dBm numbers tell you how strong the signal is, with lower numbers indicating a better signal. For example, a signal of -90 dBm is stronger than -110 dBm. This information helps you know how effective the booster will be based on your current signal.
