4G LTE & Calls - 2000m2 (Ooredoo/Vodafone) Mobile Signal Booster
Enhanced Connectivity
Experience crystal-clear voice calls and lightning-fast data speeds with our 4G LTE mobile signal booster. It strengthens signals on both 800MHz and 1800MHz frequencies, ensuring seamless communication and internet access for Ooredoo and Vodafone users alike. Say goodbye to dropped calls and hello to uninterrupted conversations.
Spacious Coverage
Cover an expansive area of up to 2,000 m² with our high-performance booster. Perfect for large homes, offices, or commercial spaces, it guarantees a strong signal in every corner, ensuring that everyone stays connected without compromising quality or speed.
Dual Band Functionality
Our innovative dual band booster optimally amplifies signals for all mobile networks simultaneously. This means whether you're connected to Ooredoo or Vodafone, you will experience robust performance without the hassle of compatibility issues.
User-Friendly Installation
Effortlessly install your signal booster with our complete kit, which includes everything you need. From the external antenna to the power adapter, enjoy a straightforward set-up process allowing you to boost your signal promptly and efficiently.
Robust Build & Safety Features
Our signal booster kit comes with the option to add a Lightning Surge Protector. This vital accessory safeguards your equipment against high voltage surges from lightning strikes, providing you peace of mind and ensuring long-lasting performance.
SMS & MMS Support
Not just for calls and internet, our signal booster also ensures that you can send and receive SMS and MMS messages efficiently. Experience a consistent, reliable text messaging service even in previously weak signal areas.
It boost 4G LTE and Calls signal on 800MHz, 1800MHz frequency, the frequencies used in Qatar used by mobile networks to deliver their mobile services: 4G and 2G (also known as GSM). It work on both 800Mhz (Band 20) & 1800Mhz (Band 3) frequencies for improving Ooredoo and Vodafone mobile carrier networks 4G LTE, Voice Calls and Texts signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. The booster is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
The system is designed for universal 4G coverage. Unlike other kits this device will boost ALL mobile providers' 4G LTE, the solution will provide coverage on on both 800MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 4G/LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.

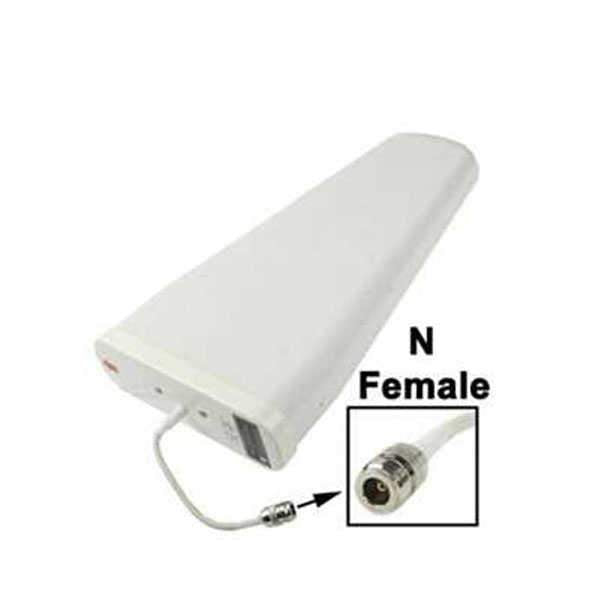

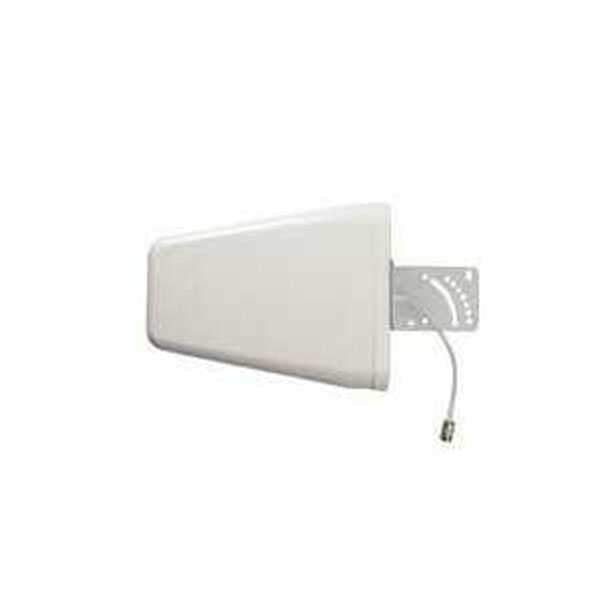

About External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE & Voice Calls] (Band 20, 3) |
| Country | Qatar |
| Boost All On | Ooredoo (4G & 2G) Vodafone (4G & 2G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 20 & 3 |
| Frequency | 800MHz & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz; 1710~1785 MHz |
| Down-link | 791~821 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |
| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE Mobile Signal Booster? - A 4G LTE mobile signal booster is a device that strengthens the mobile phone signal in your home or office. It works by capturing the weak signal outside and amplifying it, allowing you to have clearer calls and faster internet within a certain area.
- How does the booster improve calls and data? - This booster improves calls and data by making the weak signals stronger. It lets you make clearer voice calls using the 4G network and enhances your ability to send and receive text messages quickly.
- Does it work with all mobile networks? - Yes! This booster is designed to boost signals from all mobile providers that use 4G LTE. So whether you have Ooredoo or Vodafone, it will work to improve your service.
- How large of an area can the booster cover? - The booster covers an area of up to 2,000 square meters, making it perfect for large homes, offices, hotels, or warehouses where many people might need a strong signal.
- Can this booster work if there’s no signal outside? - Unfortunately, the signal booster can only amplify an existing signal, meaning if there's no signal outside, it cannot create one. It works best where there is some weak signal to begin with.
- What is the 'Band Checker' and how do I use it? - The Band Checker helps you find out what frequency band your mobile phone is using. You can dial *3001#12345#* on your iPhone, then click 'Serving Cell Info' to see the frequency. It's a great tool to ensure you have the right equipment for your network.
- How easy is it to install the booster? - The kit comes with everything you need for installation. It's designed for easy setup, so you don't need to be tech-savvy. Just follow the instructions, and you’ll have stronger signals in no time!
- What additional accessories can I get for the booster? - You can upgrade your setup with longer external cables if needed and a lightning surge protector. The surge protector safeguards your equipment from damage caused by lightning strikes.
- How can I check if my phone will work with 4G Calling? - To check if your phone supports 4G Calling (VoLTE), look for the option in your phone settings or consult your mobile provider. Many modern phones support this feature, which will allow you to make clearer voice calls.
- What frequencies does the booster support? - The booster works on both 800MHz (Band 20) and 1800MHz (Band 3) frequencies, which are commonly used by mobile networks in Qatar for both 4G LTE and 2G services.
