3G & Calls - 2000m2 (Ooredoo/Vodafone) Mobile Signal Booster
Enhance 3G & Call Signals
Experience crystal-clear voice calls and reliable 3G data with our mobile signal booster. Operating on 900MHz and 2100MHz frequencies, it effectively boosts signals for Ooredoo and Vodafone networks, ensuring you stay connected in Qatar's bustling environment.
Wide Coverage Area
Our high-performance signal booster covers an expansive indoor area of up to 2,000 m². Perfect for large homes, offices, hotels, and warehouses, you'll enjoy improved connectivity across all your spaces without interruption.
Simultaneous Dual Band Support
This dual-band booster can amplify signals on both frequencies (Band 8 and Band 1) simultaneously. It's perfect for households where multiple carriers are used, ensuring everyone enjoys uninterrupted service, no matter their network.
Comprehensive Installation Kit
Everything you need for a seamless installation is included in the kit—external aerial, booster unit, internal aerial, cables, and power adapter. One convenient price means no hidden extras when boosting your signal!
Upgrade Options Available
Need more coverage? Our signal booster offers optional upgrades like higher gain antennas and external cables, allowing you to customize your setup for optimal performance based on your environment.
Reliable Performance
Prevent dropped calls and ensure smooth communication with enhanced voice clarity and efficient SMS sending/receiving capabilities. With faster upload and download speeds, our booster guarantees consistent connectivity, keeping you in touch at all times.
It boost 3G and Calls signal on 900MHz, 2100MHz frequencies, the frequencies used in Qatar used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It work on both 900Mhz (Band 8) & 2100Mhz (Band 1) frequencies for improving Ooredoo and Vodafone mobile carrier networks 3G, Voice Calls and Text signal. It is a high-performance booster, boost indoor signal cover an area up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
This system is compatible with all 3G mobile phone networks, will provide coverage on both 900MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G Data and Voice Calls] (Band 8, 1) |
| Country | Qatar |
| Boost All On | Ooredoo (3G & 2G) Vodafone (3G & 2G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 8 & 1 |
| Frequency | 900 & 2100MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 890~915 MHz; 1930~1990 MHz |
| Down-link | 935~960 MHz; 2110~2180 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

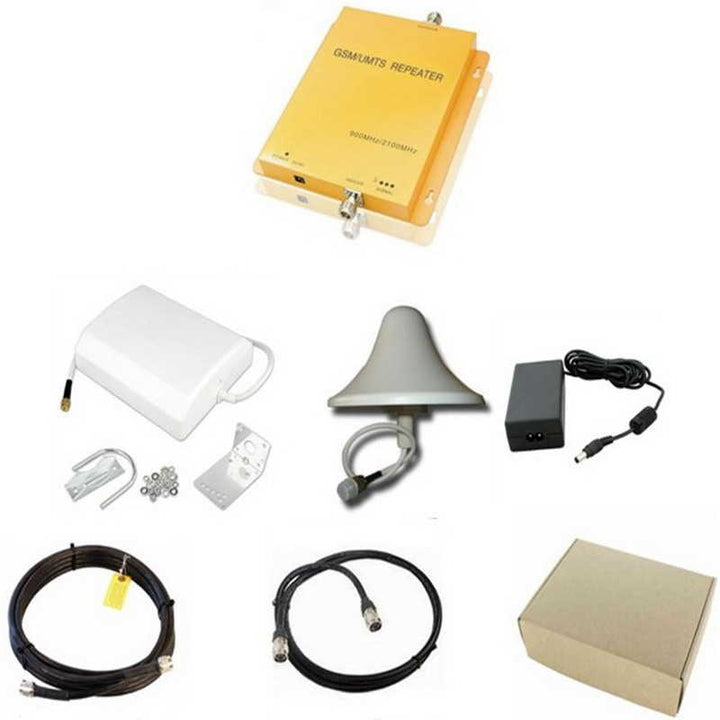

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a Mobile Signal Booster? - A mobile signal booster is a device that helps improve the strength of your mobile phone signal when you are in places with weak reception. It collects the existing signal from outside, enhances it, and then rebroadcasts it inside your home, office, or another location, allowing you to make calls and use mobile data more effectively.
- How does this booster work? - The 3G & Calls booster works by receiving signals from mobile networks on specific frequencies (900MHz and 2100MHz). It amplifies these signals and sends them throughout a designated area, covering spaces up to 2,000 square meters. This way, everyone inside can enjoy clearer calls and faster mobile internet.
- Who can benefit from using this signal booster? - This signal booster is ideal for anyone in areas where the mobile phone signal is weak. It is particularly beneficial for families with multiple members using different networks, businesses in large buildings, hotels, and even warehouses, ensuring that everyone stays connected.
- Can I use this booster with any mobile phone provider? - Yes! The 3G & Calls booster is compatible with all 3G mobile phone networks. It works simultaneously on both 900MHz and 2100MHz frequencies, making it an excellent choice for users of Ooredoo and Vodafone in Qatar.
- What do I need to do if I have no signal outside? - If there is no signal outside, the booster won’t work, as it amplifies existing signals rather than creating new ones. You may need to find a location where there is a stronger external signal before your booster can enhance it indoors.
- How can I check which frequency band my phone uses? - To check the frequency band your phone uses, you can dial *3001#12345#* and press the Call button on your iPhone. After that, tap 'Serving Cell Info' and look at the 'Freq Band Indicator' to see if your phone uses Band 8 or Band 1.
- What does the kit include? - The booster kit includes everything you need for installation—a booster unit, outdoor antenna, indoor antenna, power adapter, and both 10-meter outdoor and 5-meter indoor cables. This convenient all-in-one package makes it easy to get started.
- Are there upgrade options available? - Yes! You can upgrade to higher gain antennas for better performance or enhance your outdoor cables if the standard ones aren’t long enough for your space. Additionally, you can add a lightning surge protector to keep your equipment safe from electrical surges.
- What is the coverage area of the booster? - The 3G & Calls booster can provide coverage for areas up to 2,000 square meters. This makes it suitable for large homes, offices, hotels, and more, ensuring everyone within the area has a strong mobile signal.
- Is it easy to install the signal booster? - Yes, installing the booster is straightforward. The kit comes with all the necessary equipment and clear instructions, so you can set it up without needing professional help. Just follow the guidelines provided in the manual.
