4G LTE & Calls - 2000m2 (MTS/Beeline/MegaFon/Tele2 Rostelecom/Win Mobile) Mobile Signal Booster
Enhanced 4G LTE & Call Quality
Experience superior mobile connectivity with our booster that enhances 4G LTE and call signals on both 800MHz and 1800MHz frequencies. Ideal for major Russian carriers like MTS, Beeline, MegaFon, and Tele2, it allows improved voice clarity and swift text messaging. Enjoy seamless conversations and dependable data transfer, making missed calls a thing of the past!
Wide Coverage Area
Our powerful signal booster ensures that you stay connected across a vast area of up to 2,000 square meters. Whether you are in a large home, corporate office, or hotel, this robust device guarantees comprehensive cell coverage, allowing multiple users to benefit from enhanced mobile signals without interruption.
Dual Band Simultaneous Boost
This dual band booster is specifically designed to improve 4G signals across both Band 20 (800MHz) and Band 3 (1800MHz) at the same time. This unique feature ensures that multiple network users can connect effortlessly, maximizing the potential for all devices in a household to receive optimal service.
Easy Installation Kit
The all-inclusive kit comes with everything needed for quick installation: an external antenna, cables, a booster unit, internal antenna, and power adapter. With straightforward instructions, setting up increased signal strength in your space has never been easier!
Surge Protection Upgrade
Enhance your booster’s longevity and functionality with our Lightning Surge Protector. Designed to shield your equipment from high amperage surges caused by lightning strikes, it offers peace of mind and effortless installation, keeping your connection safe and reliable.
High Gain Antenna
For optimal performance, the system includes a high gain Yagi antenna aimed at boosting outdoor signals. Ideal for areas with weak reception, this addition ensures your devices can connect even in challenging environments, particularly if your mobile phone typically shows only 1 or 2 signal bars.
It boost 4G LTE and Calls signal on 800MHz, 1800MHz frequency, the frequencies used in Russian Federation used by mobile networks to deliver their mobile services: 4G and 2G (also known as GSM). It work on both 800Mhz (Band 20) & 1800Mhz (Band 3) frequencies for improving MTS, Beeline, MegaFon, Tele2 Rostelecom, Win Mobile, Motiv, Sotovaja and Tattelecom mobile carrier networks 4G LTE, Voice Calls and Texts signal. It also boost Yota, Krymtelecom and SMARTS mobile carrier Voice Calls and Texts signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. The booster is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
The system is designed for universal 4G coverage. Unlike other kits this device will boost mobile providers' 4G LTE, the solution will provide coverage on on both 800MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 4G/LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

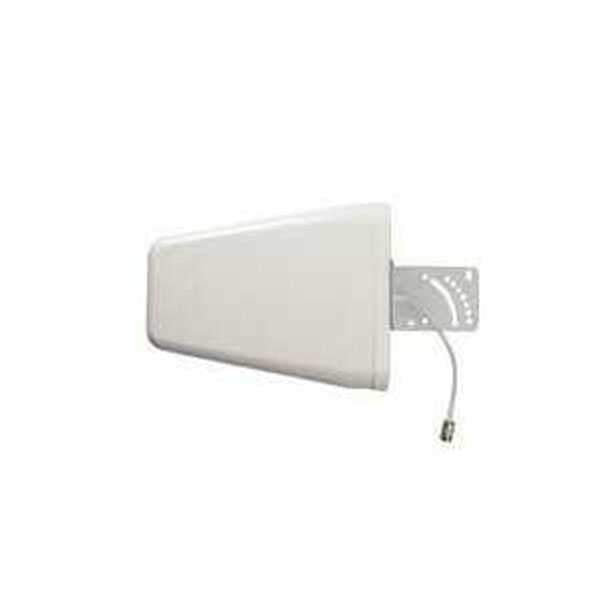

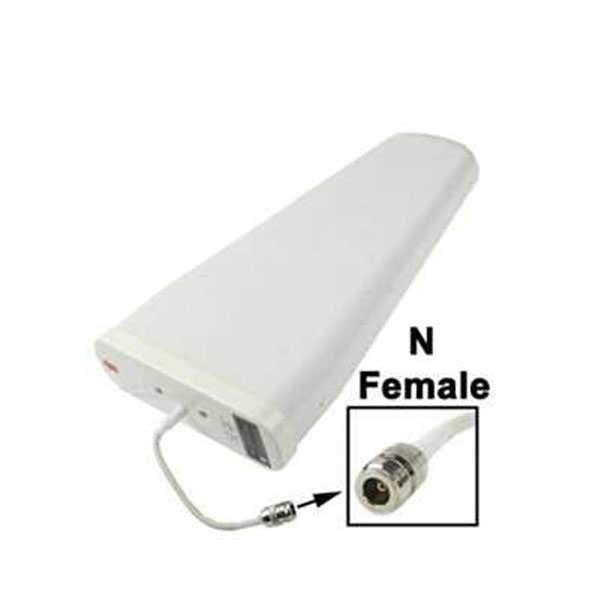

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE & Voice Calls] (Band 20, 3) |
| Country | Russian Federation |
| Boost All On | MTS (4G & 2G) Beeline (4G & 2G) MegaFon (4G & 2G) Yota (2G) Tele2 Rostelecom (4G & 2G) Krymtelecom (2G) Win Mobile (4G & 2G) SMARTS (2G) Motiv (4G & 2G) Sotovaja (4G & 2G) Tattelecom (4G & 2G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 20 & 3 |
| Frequency | 800MHz & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz; 1710~1785 MHz |
| Down-link | 791~821 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

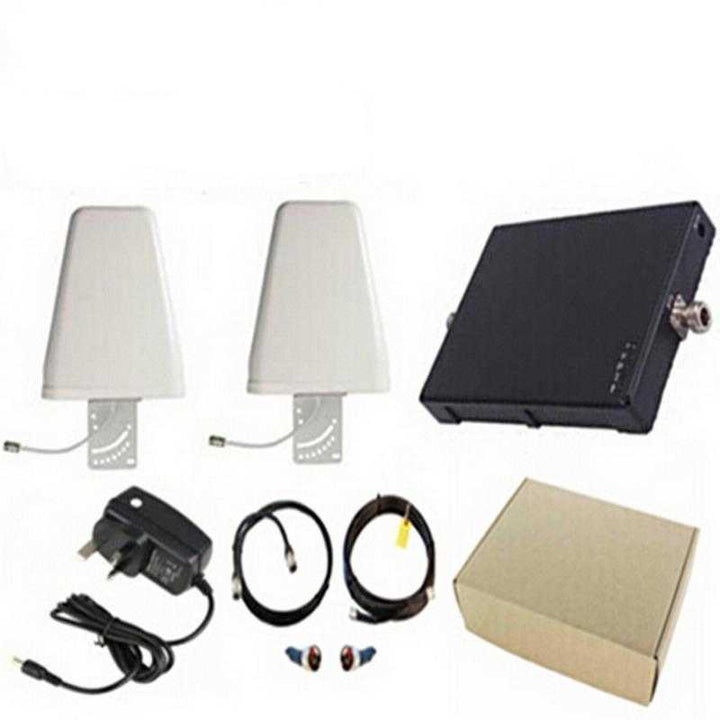

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is the 4G LTE & Calls Booster? - The 4G LTE & Calls Booster is a device designed to improve mobile phone signals, especially for 4G and voice calls, in large areas up to 2,000 square meters. It works on specific frequencies used by mobile networks in the Russian Federation, such as MTS, Beeline, MegaFon, and others. This booster helps ensure that you can make clear calls and have good internet connectivity in places like homes, offices, and hotels.
- How does the signal booster work? - The signal booster takes the existing mobile signal from the outside and amplifies it, helping to improve the signal strength inside your home or office. However, it’s important to note that if there’s no signal outside, the booster can’t create one. It simply makes a weak signal stronger so that you can enjoy better voice calls, faster internet, and send and receive messages without interruptions.
- Can I use the booster with different mobile networks? - Yes! The 4G LTE & Calls Booster is designed to work with various mobile networks in Russia, including MTS, Beeline, and MegaFon, among others. It supports both 4G LTE and 2G signals on the 800MHz and 1800MHz frequencies, making it effective for households where different family members use different mobile service providers.
- What if I have a large area to cover? - The booster is capable of covering up to 2,000 square meters, which makes it suitable for extra-large spaces, like big homes or offices. If your area is even larger, you can opt for longer external cables to ensure that the signal reaches every corner of your space effectively.
- Is it easy to install? - Yes, the kit comes with everything needed for installation, including the booster, antennas, cables, and the power adapter. You can set it up by following the included instructions, making it simple even for those who are not tech-savvy.
- What is a Dual Band booster? - A Dual Band booster is a device that can amplify two different frequency bands at the same time. In this case, the 4G LTE & Calls Booster enhances signals on both the 800MHz (Band 20) and 1800MHz (Band 3) frequencies, providing comprehensive coverage for different mobile providers.
- How can I check my phone's frequency band? - To see which frequency band your phone is using, you can dial *3001#12345#* and press the call button. Then, look for 'Serving Cell Info' and check the 'Freq Band Indicator'. Alternatively, you can use apps like 'CellMapper' or 'Network Signal Info Pro'.
- What should I do if I have lightning in my area? - If you experience lightning storms, it’s a smart idea to protect your signal booster. You can purchase a Lightning Surge Protector which is designed to shield your equipment from electrical surges caused by nearby lightning strikes. This helps keep your device safe and functional.
- Can I boost the signal for SMS and internet too? - Absolutely! The 4G LTE & Calls Booster not only improves voice calls but also enhances your ability to send and receive SMS text messages quickly. Additionally, it allows for faster uploads and downloads, providing better overall internet connectivity.
- What mobile networks does this booster support? - The 4G LTE & Calls Booster supports a variety of mobile networks, including MTS, Beeline, MegaFon, Tele2 Rostelecom, Yota, and several others. It works for both 4G LTE and 2G networks, making it a versatile solution for different users.
