3G & Calls - 500m2 (E-Plus/O2/Telekom/Vodafone) Mobile Signal Booster

3G & Calls - 500m2 (E-Plus/O2/Telekom/Vodafone) Mobile Signal Booster

£365.49

  • In Germany this booster works with:
  • Upgrade External Cable To Metres: No

    No
    20 M
    30 M
    40 M
    50 M

    Upgrade External Aerial: No

    No
    Yes

    Upgrade Protector: No

    No
    Yes

    paypalvisamasteramerican expressdiscover
    Description

    It boost All 3G & All Calls signal on 900MHz, 2100MHz frequencies, the frequencies used in Germany used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It can boost all networks on E-Plus, O2, Telekom, Vodafone, Aldi Talk, Ay yildiz, Blau, Blauworld, NettoKOM, Ortel, WhatsApp SIM etc ALL operators for improving 3G signal. It also can boost all network operators for improving Voice Calls & Text signal. It is a high-performance booster, boost indoor signal cover an area up to 500 m2, perfect for medium houses, offices, warehouse and more.

    This system is compatible with all 3G mobile phone networks, will provide coverage on both 900MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!


    Wow 3G Calls
    Eliminates Dropped Calls
    Clear Voice
    No Miss Important Calls
    Consistent Connection
    Reliable 3G Data
    Send/Receive SMS
    SMS Text Messages Quickly
    3G Internet
    Faster Uploads & Downloads
    Signal Wider Coverage
    Reception Up to 500 sq.m.

    Upgrade External Cables

    If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
    mobile phone signal booster cables

    Upgrade External Aerial

    Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:
    2G (GSM) -76 to -90 dBm
    3G (UMTS) -80 to -94 dBm
    4G (LTE) -97 to -105 dBm
    How shown dBm reading on phone, can refer Quick Start Guide
    mobile phone signal booster higher gain yagi antenna

    Upgrade Protector

    Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
    mobile phone signal booster surge protector

    Specification

    Application & Bands [3G Data and Voice Calls] (Band 8, 1)
    Country Germany
    Boost All On E-Plus (2G & 3G)
    O2 (2G & 3G)
    Telekom (2G & 3G)
    Vodafone (2G & 3G)
    Aldi Talk (2G & 3G)
    Ay yildiz (2G & 3G)
    Blau (2G & 3G)
    Blauworld (2G & 3G)
    Callmobile (2G & 3G)
    Congstar (2G & 3G)
    Debitel Light (2G & 3G)
    Edeka Mobil (2G & 3G)
    ExpressMobil (2G & 3G)
    Fonic (2G & 3G)
    Fyve (2G & 3G)
    Hellomobil (2G & 3G)
    HTP mobil (2G & 3G)
    Ja Mobil (2G & 3G)
    Kabel Deutschland (2G & 3G)
    Klarmobil Mobile (2G & 3G)
    Lebara Mobile (2G & 3G)
    Lidl Connect (2G & 3G)
    Lycamobile (2G & 3G)
    MobilCom-Debitel (2G & 3G)
    NettoKOM (2G & 3G)
    NetzClub (2G & 3G)
    Ortel Mobile (2G & 3G)
    Otelo (2G & 3G)
    Penny Mobil (2G & 3G)
    WhatsApp SIM (2G & 3G)
    Users Supporting 50 Simultaneously
    Band Dual Band 8 & 1
    Frequency 900 & 2100MHz
    Gain(dB) Gp≥60; Downlink Gp≥65
    Up-link 890~915 MHz; 1930~1990 MHz
    Down-link 935~960 MHz; 2110~2180 MHz
    Export Power(Po) ≥20dBm
    Power Adapter Input: AC 100V~240V 50/60Hz;
    Output: DC 5V

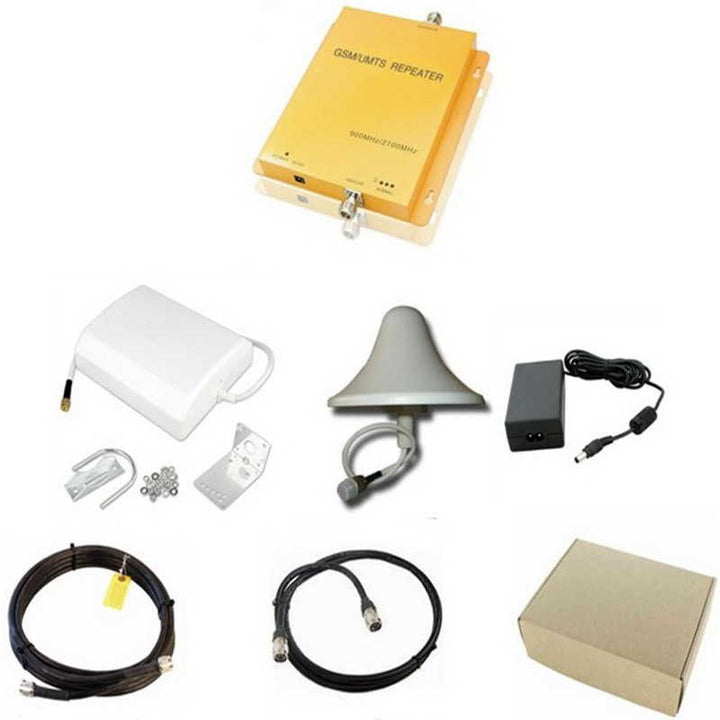

    Kit Includes 1 x Booster
    1 x Outdoor Antenna
    1 x Indoor Antenna
    1 x EU Power Adapter
    1 x 10 Meters Outdoor Cable
    1 x 5 Meters Indoor Cable
    Warming Tips:
  • Band Confirmation: This booster can boost signals on Band 8, Band 1, please check the band of your devices firstly.
  • For iPhone: Dial *3001#12345#* → Press call button → Click 'Serving Cell Info' → Check 'Freq Band Indicator'.
  • For Android: Download 'LTE Discovery' APP → Click ‘SIGNALS’ → Check 'EARFCN'. More refer to Quick Start Guide .
  • External Signal Needed: The signal booster can only amplify signal but can't create signal. If there is no signal outside, it won't work, please make sure you get 1-2 bars signal outside.

  • Expandable coverage by adding a second indoor antenna if the outside signal is strong.



    2 Indoor Antennas

    3 Indoor Antennas

    4 Indoor Antennas

    10 Indoor Antennas

    How It Works


    how mobile phone signal booster work for home office

    1

    Receives signal
    The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster

    2

    Boosts signal
    The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

    3

    Broadcasts signal
    Your devices get increased cell reception, and calls and data are fed through the booster back to the network.


    Get stronger signal


    Installation

    1. Connect the indoor antenna to the MS port.
    2. Connect the outdoor antenna to the BS Port.
    3. Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
    4. Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
    5. Power on the booster and check the signal strength.
    6. Adjust the outdoor antenna until you get the best signal strength.

    IMPORTANT NOTE:
    DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.

    Read more about User Manual Documentation.

    mobile phone signal booster signal coverage

    Application Scenarios



    Home

    Office

    Garage

    Metal Buildings
