It boost 4G LTE and All Calls signal on 1800MHz frequency, the frequency used in Austria used by mobile networks to deliver their mobile services: 2G (also known as GSM) and 4G. It can boost all networks on A1, Three, T-Mobile, HoT, Telering, Vectone for improving 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It also can boost all networks for improving Voice Calls & Text signal. It is a high-performance booster, boost indoor signal cover an area up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
Band Checker: Check frequency band is 3 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.
No Miss Important Calls
Wow 2G/4G Calls
Eliminates Dropped Calls
SMS Text Messages Quickly
Consistent Connection
Reliable 4G/LTE Data
Reception Up to 2,000 sq.m.
4G/LTE Internet
Faster Uploads & Downloads

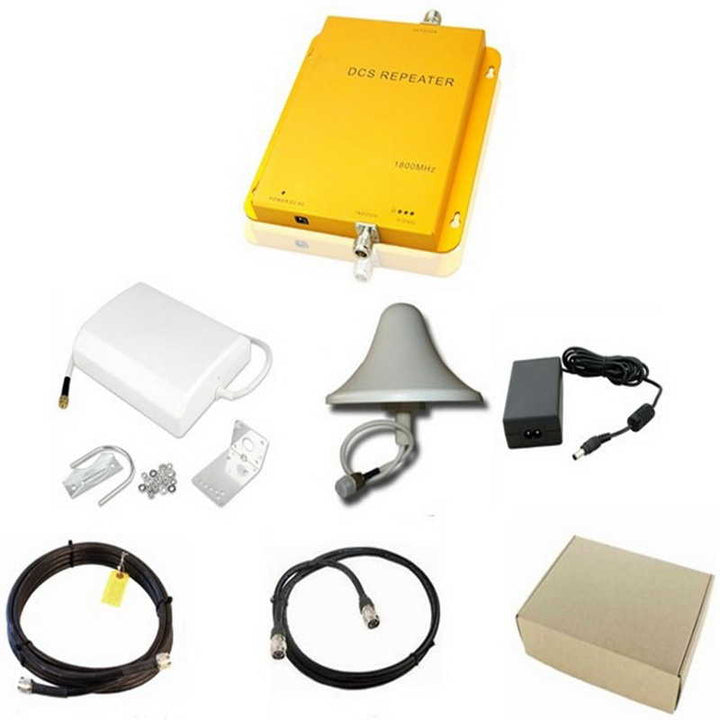

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G/LTE & Calls] (Band 3) |
| Country | Austria |
| Boost All On | A1 (2G & 4G) Three (2G & 4G) T-Mobile (2G & 4G) HoT (2G & 4G) Telering (2G & 4G) Vectone (2G & 4G) |
| Users Supporting | 200 Simultaneously |
| Band | Single Band 3 |
| Frequency | 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 1710~1785 MHz |
| Down-link | 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| Kit Includes | 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable |
Example Installation
