3G & Calls - 250m2 (Optus/Virgin Mobile) Mobile Signal Booster
SAY GOODBYE TO DROPPED CALLS, POOR CALL QUALITY, AND SLOW INTERNET.
It boost 3G and Calls signal on 900MHz, 2100MHz frequencies, the frequencies used in Australia used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It work on both 900Mhz (Band 8) & 2100Mhz (Band 1) frequencies for improving Optus and Virgin Mobile carrier networks 3G, Voice Calls and Text signal. It is the best suitable for medium size, boost indoor signal areas up to 250 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
The booster enhances cell signals is a low-cost amplifier that wirelessly enhances cell signals for cellular devices (smartphones, tablets, Kindle, etc). It provides stronger signals, longer battery life, and clear connections to your phone. This device will boost mobile providers' 3G - 900MHz and 2100MHz (Band 8/1) networks signal.
Band Checker: Check frequency band is 8 or 1 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.
WHO IS THIS FOR?
You're at your desk or cubicle and need reliable signal for 3G. With this signal booster, get much faster 3G. Perfect for people needing fast uploads and downloads for streaming apps such as Google Chrome, Safari browser, YouTube, Netflix, Pandora, Spotify, and other data-heavy apps. For best results, it's recommended to stay within 1.5 metres-2.5 meters feet of the amplifier or within the room. Get the signal you deserve to get the job done and leave work where it belongs.
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 250 sq.m.

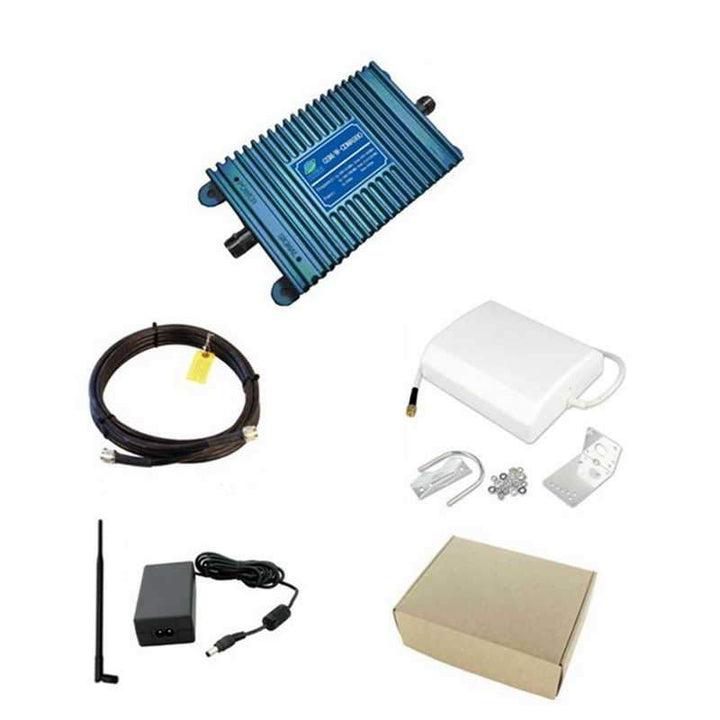

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G Data and Voice Calls] (Band 8, 1) |
| Country | Australia |
| Boost All On | Optus (3G & 2G) Virgin Mobile (3G & 2G) |
| Users Supporting | 25 Simultaneously |
| Band | Dual Band 8 & 1 |
| Frequency | 900 & 2100MHz |
| Gain(dB) | Uplink Gp≥50; Downlink Gp≥55 |
| Up-link | 890~915 MHz; 1930~1990 MHz |
| Down-link | 935~960 MHz; 2110~2180 MHz |
| Export Power(Po) | -70~-40 dBm/FA(1.23MHz) |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| Kit Includes | 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable |
Example Installation
