Calls & 3G & 4G LTE - 500m2 (TIM/Claro/Oi/Algar) Cell Phone Signal Booster

Calls & 3G & 4G LTE - 500m2 (TIM/Claro/Oi/Algar) Cell Phone Signal Booster

£647.83

Upgrade External Cable To Metres: No

No
No
20 M
30 M
40 M
50 M

Upgrade External Aerial: No

No
No
Yes

Upgrade Protector: No

No
No
Yes
Description

It boost Calls and 3G and 4G LTE signal on 900MHz, 1800MHz and 2100MHz frequencies, the frequencies used in Brazil used by mobile networks to deliver their mobile services: 2G (also known as GSM), 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It work on both 900Mhz (Band 8) & 1800Mhz (Band 3) & 2100Mhz (Band 1) frequencies mainly used for improving TIM, Claro, Oi and Algar mobile carrier Voice Calls, Text, 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use voice calls, text and 3G. It is a high-performance booster, boost indoor signal cover an area up to 500 m2, perfect for medium houses, offices, warehouse and more.

The booster enhances cell signals is a low-cost amplifier that wirelessly enhances cell signals for cellular devices (smartphones, tablets, Kindle, etc). It provides stronger signals, longer battery life, and clear connections to your phone. This device will boost mobile providers' 2G 900MHz, 3G 2100MHz, and 2G and 4G LTE 1800MHz (Band 8/3/1) network signal.

The system unlike other kits, this device will boost ALL networks including 2G, 3G, 4G and 4G Calling, is designed for universal mobile voice calls, 3G and 4G coverage. The solution will provide coverage on all 900MHz, 1800MHz, 2100MHz networks simultaneously.

Band Checker: Check frequency band is 8 or 3 or 1 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.


Clear Voice
No Miss Important Calls
Wow 2G/3G/4G Calls
Eliminates Dropped Calls
Battery Life
Get Longer On Your Phone
Send/Receive SMS
SMS Text Messages Quickly
Consistent Connection
Reliable 3G/4G Data
Seamless Switching
Back to Normal Network
Signal Wider Coverage
Reception Up to 500 sq.m.
3G/4G Internet
Faster Uploads & Downloads
Multiple Users
50 Simultaneously

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.

Upgrade External Cables

If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
mobile phone signal booster cables

Upgrade External Aerial

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
mobile phone signal booster higher gain yagi antenna

Upgrade Protector

Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
mobile phone signal booster surge protector

Specification

Application & Bands [Voice Calls & 3G & 4G LTE] (Band 8, 3, 1)
Country Brazil
Boost All On TIM (4G & 3G & 2G)
Claro (4G & 3G & 2G)
Oi (4G & 3G & 2G)
Algar (4G & 3G & 2G)
Users Supporting 50 Simultaneously
Band Tri Band 8 & 3 & 1
Frequency 900 & 1800 & 2100MHz
Gain(dB) Uplink Gp≥55; Downlink Gp≥60
Up-link 890~915 MHz; 1710~1785 MHz; 1930~1990 MHz
Down-link 935~960 MHz; 1805~1880 MHz; 2110~2180 MHz
Export Power(Po) ≥23dBm
Power Adapter Input: AC 100V~240V 50/60Hz; Output: DC 5V

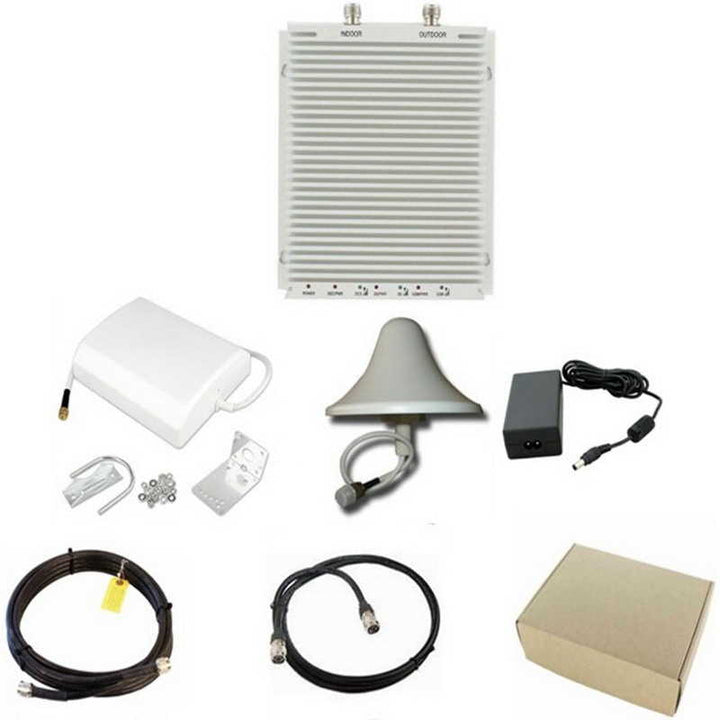

Kit Includes 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable
Installation

  • Test your outdoor signal in various places until you find a location of 4-5 mobile bars (full bar) or if not, then the best call quality you can get. This is the best place to mount an external antenna.
  • Be sure that the external antenna is a reasonable distance from other antennas like TV, if it is too close the signals from external antennas will interact with each other.
  • Select a convenient indoor place to install the booster and the interior antenna. We recommend the center of the ceiling in a room that needs a boosted signal so that the signal can cover each corner.
  • Always isolate the external and interior antennas from floors or walls, be sure they are not too close. If they are too close that causes breaks in the voice signals or calls cannot in or out.
  • The External antenna via cable connects to "BS" from the booster and interior whip antenna to "MS". Double check each connector, including connector below external antenna.
  • Mount base unit at place with good ventilation, if too hot not good for it work. More detailed installation information can be found at: https://www.ukmobilebooster.com/pages/install. If you have any questions, please don't hesitate let us know.
  • Example Installation
