3G - 250m2 (Vivo/TIM/Claro/Oi/Nextel/Algar/Sercomtel) Cell Phone Signal Booster
It boost 3G signal on 850MHz, 2100MHz frequency, the frequencies used in Brazil used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G). It work on both 850Mhz (Band 5) & 2100Mhz (Band 1) frequencies mainly used for improving Vivo, TIM, Claro, Oi, Nextel, Algar and Sercomtel mobile carrier 3G signal. The booster is the best suitable for medium size, boost indoor signal areas up to 250 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
The booster enhances cell signals is a low-cost amplifier that wirelessly enhances cell signals for cellular devices (smartphones, tablets, Kindle, etc). It provides stronger signals, longer battery life, and clear connections to your phone. This device will boost mobile providers' 3G 850MHz and 2100MHz (Band 5/1) network signal.
The system is designed for universal 3G coverage. The solution will provide coverage on on both 850MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Band Checker: Check frequency band is 5 or 1 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.
Eliminates Dropped Calls
Reliable 3G Data
Reception Up to 250 sq.m.

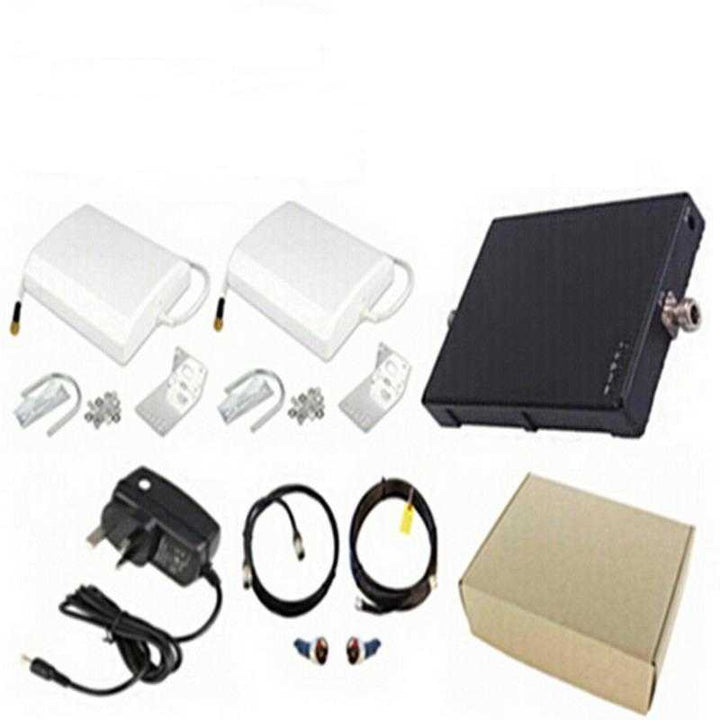

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G Data] (Band 5, 1) |
| Country | Brazil |
| Boost All On | Vivo (3G) TIM (3G) Claro (3G)Oi (3G) Nextel (3G) Algar (3G) Sercomtel (3G) |
| Users Supporting | 25 Simultaneously |
| Band | Dual Band 5 & 1 |
| Frequency | 850MHz & 2100MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 824~849 MHz; 1920~1980 MHz |
| Down-link | 869~894 MHz: 2110~21700 MHz |
| Export Power(Po) | ≥17dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| Kit Includes | 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable |
