Europe 4G LTE - 2000m2 (800MHz) Mobile Phone Signal Booster
Enhanced 4G/LTE Signal Boost
Boost your mobile phone's 4G/LTE signal effectively at 800MHz, the standard frequency used by European mobile networks. This booster ensures you enjoy seamless connectivity for data and phone calls, particularly if you are in an area with weak mobile signal.
Wide Coverage Area
Experience remarkable reception across expansive spaces with a coverage area of up to 2,000 m². Perfect for large homes, offices, hotels, and industrial sites, this booster guarantees enhanced connectivity wherever you need it.

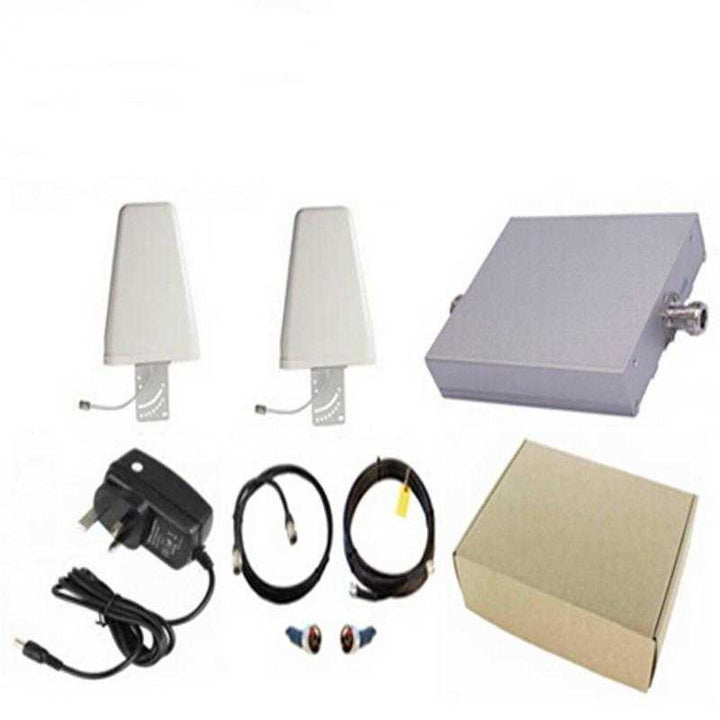

User-Friendly Installation Kit
The complete package includes everything needed for a hassle-free installation— external aerial, cables, the booster base unit, an internal aerial, and a power adapter. Enjoy reliable performance and a quick setup under one price!
Optimized 4G Calling
If your mobile device supports VoLTE, this booster allows for clearer voice calls over 4G networks. Take advantage of high-quality voice communications even in low-signal areas.
Lightning Surge Protection
Safeguard your equipment with an optional Lightning Surge Protector. Designed to handle up to 18KA of current surge, this accessory helps protect your system from unexpected lightning strikes.

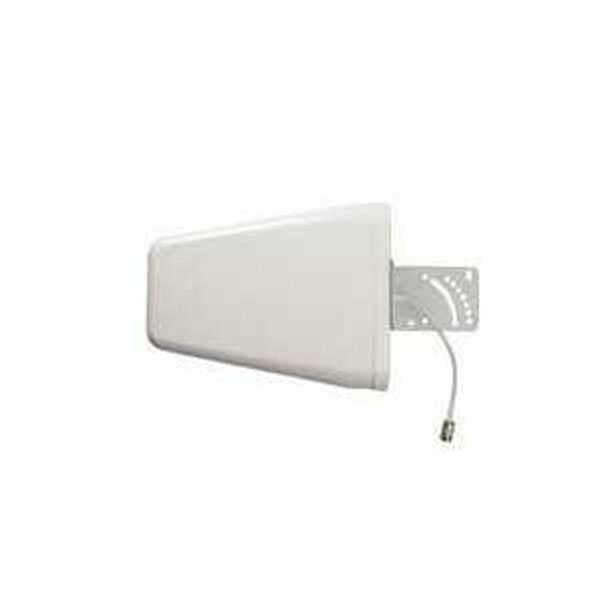

High Gain Yagi Antenna
Included in the kit, this high-performance antenna ensures superior reception even when your device displays only one or two signal bars. It's essential for achieving optimal performance, especially in challenging signal environments.
It boost 4G/LTE signal on 800MHz frequency, the frequency used in Europe used by mobile networks to deliver their 4G mobile services. It work on 800Mhz (Band 20) frequency for improving Europe mobile carrier networks 4G/LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE] (Band 20) |
| Country | Europe |
| Boost All On | 800MHz Networks Download and Install APP "Network Signal Pro" |
| Users Supporting | 200 Simultaneously |
| Band | Single Band 20 |
| Frequency | 800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz |
| Down-link | 791~821 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |
| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE signal booster? - A 4G LTE signal booster is a device that helps improve your mobile phone signal, especially in areas where the signal is weak. It works by picking up the existing weak signal from outside and amplifying it, making it stronger inside your home or office.
- How does the booster work? - The booster captures a weak mobile signal from outside, enhances it, and then transmits the improved signal inside your space. It's important to note that the booster cannot create a signal; it can only make a weak signal stronger.
- How big of an area does this booster cover? - This specific booster can cover an area of up to 2,000 square meters. That's about the size of a big house, an office, or even a hotel! It's perfect for any large spaces where mobile signal is needed.
- What frequency does this booster support? - This booster supports the 800 MHz frequency, which is commonly used in many European countries for 4G LTE services. If your phone uses this frequency, the booster can help improve your signal.
- Can I use the booster if there's no signal outside? - Unfortunately, no. The booster needs a weak signal from outside to start working. If there’s no signal at all, the booster won’t be able to help you.
- Is the installation of the booster complicated? - Not at all! The kit comes with everything you need and is designed for easy installation. You will find clear instructions on how to set it up, even if you’re not very tech-savvy.
- What accessories come with the booster? - The booster kit includes an outdoor antenna, an indoor antenna, a power adapter, and all necessary cables. Everything you need for installation is included in one package!
- Can I upgrade the cables if needed? - Yes! If the standard 10-meter outdoor cable isn’t long enough for your needs, you can upgrade to a longer length to ensure the best performance.
- What is a lightning surge protector? - A lightning surge protector is an accessory that helps protect your booster from sudden surges in electricity caused by lightning strikes. It ensures your device remains safe and functional during storms.
- How can I check if my phone is compatible with the booster? - You can check whether your phone supports the 800MHz frequency band, which is needed for this booster. You can do this by dialing a code on your phone or using a mobile app like 'Network Signal Info Pro'.
