3G & 4G LTE - 100m2 (EE/O2/Vodafone/Three) Mobile Signal Booster
It boost 3G and 4G LTE signal on 800MHz, 2100MHz frequency, the frequencies used in UK by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It can boost UK Three, EE, O2, Vodafone etc ALL mobile network operators for improving 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use 3G. Boost indoor signal cover an area up to 100 m2, is ideal for small apartments or offices.
This system is compatible with all 4G and 3G mobile phone networks, will provide coverage on both 800MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
No Miss Important Calls
Reliable 3G/4G LTE Data
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 100 sq.m.

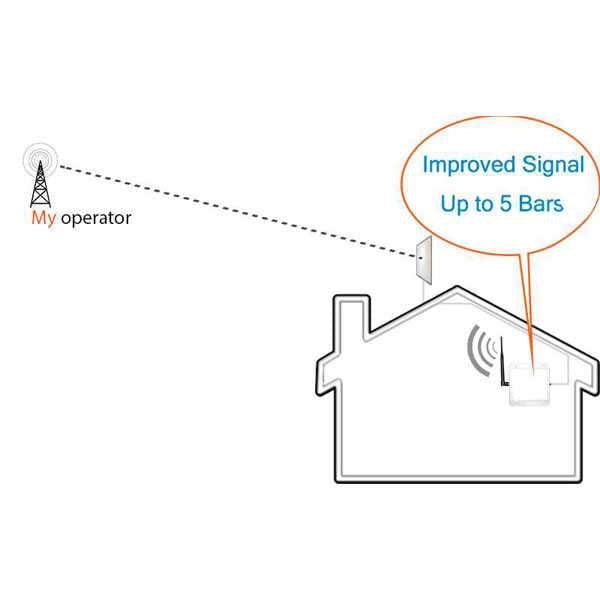

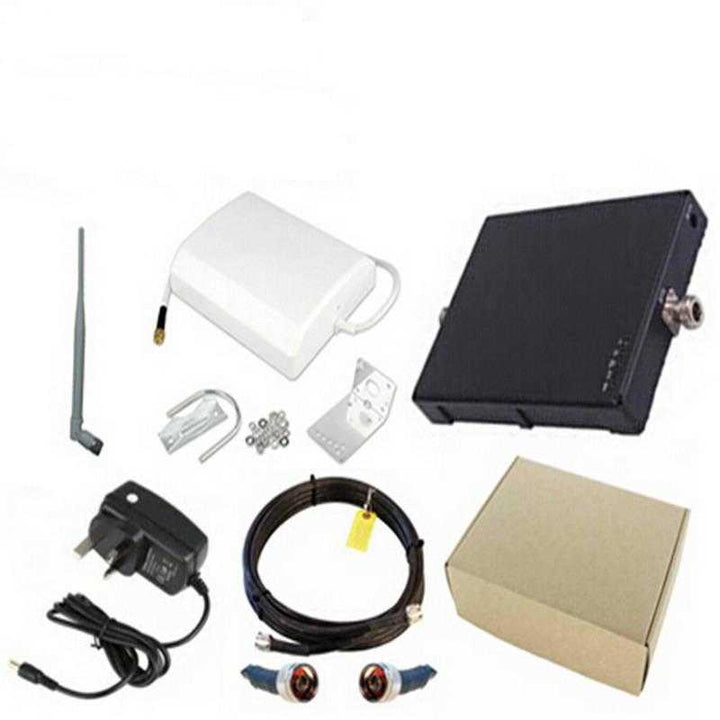

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
1. We recommend doing a "loose" install first, so that you can test where best to place your cables and antennas.
2. Install the outdoor panel antenna in a location where there is good mobile signal. (usually this is your roof).
3. Using the supplied 10m cable, run it down inside your house to the booster.
4. Run cable from external antenna to booster. Attach this cable to the repeater.
5. Then attach the indoor antenna to the repeater.
6. Plug in the power supply.

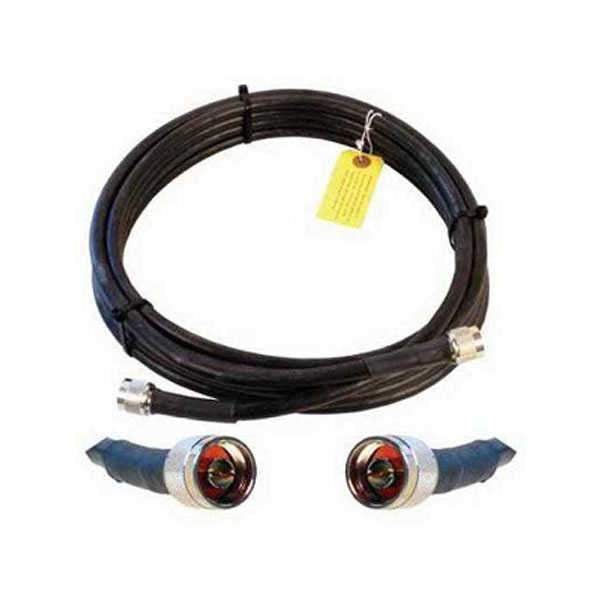

Upgrade External CablesIf our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External AerialHigher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade ProtectorLightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
|Application & Bands||[3G & 4G/LTE Data] (Band 20, 1)|
|Boost All On||EE (3G & 4G)
O2 (3G & 4G
Vodafone (3G & 4G)
Three (3G & 4G)
Asda (3G & 4G)
BT (3G & 4G)
Freedom Pop (3G & 4G)
Giffgaff (3G & 4G)
iD Mobile (3G & 4G)
Lycamobile (3G & 4G)
Talkmobile (3G & 4G)
Orange (3G & 4G)
Plusnet Mobile (3G & 4G)
Sky Mobile (3G & 4G)
Smarty Mobile (3G & 4G)
Tesco (3G & 4G)
The People's Operator (3G & 4G)
T-Mobile (3G & 4G)
Virgin (3G & 4G)
|Users Supporting||10 Simultaneously|
|Band||Dual Band 20 & 1|
|Frequency||800MHz & 2100MHz|
|Gain(dB)||Uplink Gp≥45; Downlink Gp≥50|
|Up-link||832~862 MHz; 1930~1990 MHz|
|Down-link||791~821 MHz; 2110~2180 MHz|
|Power Adapter||Input: AC 100V~240V 50/60Hz; Output: DC 5V|
|Kit Includes||1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable|
