3G & 4G LTE - 500m2 (EE/O2/Vodafone/Three) Mobile Signal Booster
✓ Compatible with multiple users and devices
✓ Complete kit: all parts included
✓ Simpler Install and Maintenance
Enhance your indoor mobile signal coverage effortlessly with the Mobile Signal Booster for 3G, 4G LTE on EE, O2, Vodafone, Three networks in the UK. This dual-band booster improves cellular signal strength, ensuring seamless connectivity.
Frequently Bought Together
Boost4U CW500 3G & 4G LTE Dual-Band Flagship UK — Band 20 (800MHz) + Band 1 (2100MHz), EE/O2/Vodafone/Three 4G Data + 3G Calls, 500m², 50 Users, Yagi Included, £485.00
The Boost4U CW500 is the flagship Band 20+1 dual-band booster: it amplifies 4G LTE data on Band 20 (800 MHz) and 3G UMTS data, calls and SMS on Band 1 (2100 MHz) for EE, O2, Vodafone and Three in one box, with ≥60 dB uplink and ≥65 dB downlink gain, ≥20 dBm output, a high-gain Yagi directional aerial included in the full kit, a 3 dBi whip indoor antenna, a 10 m outdoor plus 5 m indoor low-loss coax and an AC 100–240V to DC 5V UK adapter, covering up to 500 m² for up to 50 users, expandable to up to 3 indoor antennas, at £485.00 GBP.
The Boost4U CW500 is the Band 20 (800 MHz) + Band 1 (2100 MHz) dual-band FDD mobile signal booster priced at £485.00 GBP that delivers 4G LTE data on Band 20 plus 3G UMTS data, voice calls and SMS on Band 1 across EE, O2, Vodafone and Three from one device, with ≥60 dB uplink gain, ≥65 dB downlink gain and ≥20 dBm maximum output power, across up to 500 m² (large detached house / villa / small office or warehouse) for up to 50 simultaneous users. Unlike the CW100, CW200 and CW250, the CW500 ships a high-gain Yagi directional aerial included in the full kit (no separate Yagi upgrade), plus a 3 dBi whip indoor antenna, a 10 m outdoor plus 5 m indoor low-loss coaxial cable (outdoor upgradeable to 20/30/40/50m) and an AC 100–240V 50/60Hz UK Type plug feeding DC 5V. On Band 20 (800MHz) it boosts EE/O2/Vodafone/Three 4G LTE data; on Band 1 (2100MHz) it boosts 3G UMTS data, calls and SMS for all four networks and their MVNOs. The CW500 does not boost 2G GSM voice (Band 8 900MHz / Band 3 1800MHz) and does not boost 5G; calls run over 3G Band 1 or 4G VoLTE where available. It is UKCA/CE/RoHS certified, Ofcom licence-exempt, ships at 3.0 kg, installs plug-and-play in 10–15 minutes with no tools, ships free to 15 European countries in 10–15 working days after 1–2 days handling, and carries a 365-day money-back guarantee. Upgrade options: 20/30/40/50m outdoor cable and 18KA surge protector; when outdoor donor is strong it expands to up to 3 indoor antennas via a 3-way splitter and extra cable.
Product Identity & Pricing
| Product Name | Boost4U CW500 — 3G & 4G LTE, 500m² (EE/O2/Vodafone/Three) Mobile Signal Booster, Yagi Included |
| Model / MPN | CW500 / MBCW500gb |
| SKU | MBCW500gb |
| GTIN-13 / EAN | 6920702763512 |
| Brand | Boost4U (vendor UKMobileBooster.com) |
| Category | CW Dual-Band 3G/4G Mobile Signal Boosters |
| Base Price | £485.00 GBP (full kit, high-gain Yagi directional aerial included) |
| Upgrade Options | External cable 20M/30M/40M/50M; 18KA lightning surge protector (Yagi aerial already included — no separate Yagi upgrade) |
| Indoor Coverage | Up to 500 m² (about 5,382 ft²) — large detached house / villa / small office / warehouse |
| Simultaneous Users | Up to 50 |
| Shipping Weight | 3.0 kg |
| Installation | Plug-and-play, 10–15 minutes, no tools |
| Published / Updated | Updated 2026-10-21 |
Frequency Bands, Gain, Output & Electrical Specifications
| Parameter | Value (compact spec table — authoritative) |
|---|---|
| Frequency Band | Dual Band 20 & 1 (800 & 2100 MHz) FDD — Band 20+1 ONLY (not Band 3) |
| Uplink — Band 20 | 832 – 862 MHz (800 MHz) |
| Downlink — Band 20 | 791 – 821 MHz (800 MHz) |
| Uplink — Band 1 | 1930 – 1990 MHz (2100 MHz 3G) |
| Downlink — Band 1 | 2110 – 2180 MHz (2100 MHz 3G) |
| Supported Services | 4G LTE data (Band 20) + 3G UMTS data / voice calls / SMS (Band 1, EE/O2/Vodafone/Three); VoLTE where available |
| Uplink Gain (Gp) | ≥ 60 dB |
| Downlink Gain (Gp) | ≥ 65 dB |
| Max Output Power (Po) | ≥ 20 dBm per band (Ofcom licence-exempt) |
| Noise Figure | ≤ 5 dB |
| Operating Temperature | -10°C to +55°C |
| Ports | BS (outdoor Yagi donor antenna), MS (indoor server whip) |
| Unsupported Bands | No 2G GSM voice (Band 8 900MHz / Band 3 1800MHz); no 5G NR on any band |
Antennas, Cable & Mounting
| Outdoor Antenna | High-gain Yagi directional aerial — INCLUDED in the £485.00 full kit (unlike CW100/CW200/CW250 where Yagi is a paid upgrade); aimed at the nearest mast for weak fringe signal |
| Indoor Antenna | Whip antenna, 3 dBi, placed indoors to re-broadcast boosted 4G and 3G; expandable to up to 3 indoor antennas via a 3-way splitter |
| Cable Included | 10 m outdoor low-loss coax + 5 m indoor low-loss coax; outdoor upgrade options 20M / 30M / 40M / 50M for a remote roof or long run |
| Mounting | Outdoor Yagi on a clear roof/wall spot with mounting bracket aimed at the mast; indoor whips in covered rooms; plug-and-play, no tools |
| Outdoor Donor Signal Required | At least 1–2 bars of usable outdoor Band 20/Band 1 signal at the Yagi point; the directional Yagi pulls a much weaker fringe donor than an omni |
High-Gain Yagi — Included
The included directional Yagi aims at the nearest mast and pulls a weak rural donor that an omni could not; reviewers report going from 1 bar to full bars after fitting it.
3 dBi Indoor Whip
The 3 dBi whip re-broadcasts boosted 4G data and 3G calls across the 500m² home; up to 3 whips via a 3-way splitter reach far rooms and floors when donor is strong.
Power Supply, Certification & Installation
| Power Adapter | Input AC 100V–240V 50/60Hz (UK Type plug); output DC 5V |
| Certification | UKCA / CE / RoHS; Ofcom licence-exempt (mobile repeater class) |
| Installation Time | 10–15 minutes, plug-and-play, no tools |
| 5G NR Support | No — 5G is not boosted on any band |
| 2G GSM Support | No — Band 8 (900MHz) / Band 3 (1800MHz) 2G voice is not boosted; calls run over 3G Band 1 or 4G VoLTE |
| Warranty / Returns | 365-day money-back guarantee; return shipping deducted from refund |
| Delivery | Free shipping; handling 1–2 working days, UK transit 10–15 working days; 15 destination countries |
UK Network Compatibility Matrix
| Carrier / MVNO | Service Boosted | Notes |
|---|---|---|
| EE | 4G LTE (Band 20) + 3G UMTS calls/data (Band 1) | Both 4G data and 3G fallback boosted; no EE 2G Band 3 voice |
| O2 | 4G LTE (Band 20) + 3G UMTS calls/data (Band 1) | 4G data plus 3G calls; O2 2G Band 8 voice is not boosted |
| Vodafone | 4G LTE (Band 20) + 3G UMTS calls/data (Band 1) | 4G data plus 3G calls; Vodafone 2G Band 8 voice is not boosted |
| Three | 4G LTE (Band 20) + 3G UMTS calls/data (Band 1) | 4G data plus 3G fallback across Band 20 and Band 1 |
| Asda / BT / Freedom Pop / giffgaff / iD / Orange / Plusnet / Sky / Smarty / Tesco / T-Mobile / Virgin / TPO / Lycamobile / Talkmobile | 3G + 4G (networked on Band 20 / Band 1) | 4G data and 3G per their host network; 2G not boosted |
| Lebara / TalkTalk | 3G only (Band 1) | 3G calls/data boosted; no 4G data on this unit |
What's in the Box
| CW500 Booster Unit | 1 × dual-band Band 20+1 amplifier with status LED indicators |
| Outdoor Antenna | 1 × high-gain Yagi directional donor antenna — INCLUDED in the full kit (not a paid upgrade) |
| Indoor Antenna | 1 × 3 dBi whip indoor antenna |
| Outdoor Cable | 1 × 10 m low-loss coaxial cable (20/30/40/50m upgrade optional) |
| Indoor Cable | 1 × 5 m low-loss coaxial cable for the indoor whip |
| Power Adapter | 1 × AC 100–240V UK Type plug adapter outputting DC 5V |
| Mounting & Docs | Mounting bracket, English quick-start guide and support card |
Complete Kit — Yagi Included
Everything for a DIY fit arrives in one box: Yagi directional aerial, amplifier, whip, 10m outdoor + 5m indoor coax, UK DC5V adapter and mounting bracket; longer outdoor cable and surge protector are the only optional add-ons.
Pros & Cons
Pros
- Flagship Band 20+1 combo at £485.00: 4G LTE data on Band 20 plus 3G UMTS calls/data/SMS on Band 1 for EE, O2, Vodafone AND Three from one box; the CG500 covers O2/Vodafone 2G voice instead and the CD500 is 4G-only.
- High-gain Yagi directional aerial INCLUDED in the full kit — no paid Yagi upgrade like the CW100/CW200/CW250 — pulling weak rural donor that an omni could not.
- ≥60 dB uplink / ≥65 dB downlink gain with ≥20 dBm output, the highest in the CW series (about double the radiated power of the CW250's ≥17dBm), spreading boosted 4G and 3G across 500m² with ≤5 dB noise figure.
- Up to 50 simultaneous phones or devices share boosted 4G data and 3G calls across a large detached house, villa, family home, office, café or warehouse, with 3G fallback when 4G dips.
- Expandable to up to 3 indoor antennas via a 3-way splitter and extra cable when the outdoor donor is strong, covering far rooms and floors.
- 10m outdoor cable upgradeable to 20/30/40/50m plus a 5m indoor cable; 18KA surge protector available; AC 100–240V to DC 5V UK adapter, UKCA/CE/RoHS, Ofcom licence-exempt, plug-and-play in 10–15 minutes with no tools.
- 365-day money-back guarantee and free shipping to 15 European countries (handling 1–2 days, transit 10–15 days).
Cons
- Coverage is 500m² (large detached house / villa / small office or warehouse), not an estate, multi-building site or very large manor; that needs a multi-unit system.
- No 2G GSM voice on Band 8 (900MHz) or Band 3 (1800MHz); 2G-only fallback callers need the Band 20+8 CG500.
- No 5G NR on any band; calls run over boosted 3G Band 1 or 4G VoLTE where offered.
- It cannot solve a location with no donor outside; even the included Yagi needs at least 1–2 bars of usable signal at the mounting point.
- Premium flagship price of £485.00 is not entry-level; longer cable and surge protector are paid add-ons.
- Up to 50 connected devices; beyond that shared RF capacity thins out.
- Free delivery takes 10–15 working days after 1–2 days handling — not next-day; no LCD signal-strength meter.
- Splitter expansion only helps with a strong outdoor donor; splitting weakens each branch, so 3 antennas still need a solid donor.
Where the CW500 Helps
Steady 4G + 3G Bars
Band 20 lifts 4G data and Band 1 keeps 3G calls as a fallback, so bars stay up across a large home where a 4G-only unit would drop.
Plug-and-Play Install
Mount the included Yagi on the 10m cable aimed at the mast, place the whip inside over the 5m lead and plug the DC5V adapter in — done in 10–15 minutes, no tools.
Where the CW500 Works — 5 Scenarios
1. Large Detached House / Villa
The 500m² footprint fits a large detached house or villa across multiple floors and rooms; the included Yagi pulls a weak rural donor and up to 50 residents keep 4G data plus 3G calls on EE, O2, Vodafone or Three, with 3 indoor whips via splitter reaching far rooms.
2. O2/Vodafone Large Family Home
A large family using O2 or Vodafone gets Band 20 4G data and Band 1 3G calls across shared phones, tablets, laptops and home-office devices; where 4G is weak, boosted 3G keeps everyday calls and messages going around the multi-storey home.
3. Rural Weak-Signal Large Home / Holiday Cottage
In a Devon or Wales large home with only 1 bar, the included directional Yagi focuses on the nearest mast and the 50m outdoor cable upgrade reaches a remote roof; 3 indoor antennas cover downstairs and upstairs, with 3G fallback keeping calls alive.
4. Small Office / Café / Shop / Warehouse
Up to 50 staff, customers' devices and tills share boosted 4G and 3G for video calls and guest Wi-Fi back-up, with 3G+4G redundancy when one band dips; the 3-antenna split reaches a back office, store room or warehouse floor.
5. Multi-Room Coverage / Large Garage Workshop
Across a large home with thick walls and a metal garage workshop, the Yagi sits on the roof and up to 3 indoor whips pull 4G/3G through walls and metal over the 5m leads, keeping phones and machine monitoring connected across the whole 500m².
Custom Your Solution — Expand to Three Zones
Expandable coverage by adding indoor antenna, splitter, cable if the outside signal is strong.
- Check the outdoor donor. With the included Yagi aimed at the mast, when outside signal is strong (roughly -70 to -90 dBm, 3–4+ bars), extra indoor antennas can split and extend coverage; a weak donor does not multiply by splitting.
- Map up to three zones. Identify the main room covered by the whip plus far rooms, upstairs bedrooms or a back office/warehouse; feed up to 3 indoor antennas total from the booster through a 3-way passive splitter.
- Add indoor antennas + 3-way splitter + cable. Add extra whips and run additional coaxial cable from the 3-way splitter to each for even coverage across three zones; remember splitting reduces power per branch, so keep antennas reasonably close to the booster.
- Choose cable length. The 10m outdoor + 5m indoor standard suits a normal roof; add 20/30/40/50m outdoor for a remote roof or longer runs to the second and third antennas.
- Add protection. A 18KA surge protector shields the Yagi-mounted unit on an exposed roof or mast; cable and surge upgrades are chosen at order time.
- Keep separation. Maintain the gap between outdoor Yagi and indoor whips to prevent feedback, and test bars in all three zones before fixing.
Frequently Asked Questions — Real UK 3G+4G Band 20+1 User Questions
How does the CW500 differ from the CW250, the CG500 (Band 20+8) and the CD500 (Band 20+3) at £485.00?
The CW500 is the flagship Band 20+1 all-network 3G+4G unit: ≥60 dB uplink / ≥65 dB downlink gain, ≥20 dBm output, 500m² coverage, 50 users, up to 3 indoor antennas via a 3-way splitter, and a high-gain Yagi directional aerial included in the full kit, for £485.00. The CW250 is the smaller 250m²/25-user/≥17dBm model with a standard omni. The CG500 at the same £485.00 pairs Band 20 with Band 8 (900MHz) for O2/Vodafone 4G plus 2G voice; the CD500 pairs Band 20 with Band 3 (1800MHz) for EE+O2/Vodafone 4G only. Choose CW500 when you want 4G data plus 3G fallback across EE, O2, Vodafone and Three across a large 500m² home or office with the Yagi already included.
What is the difference between Band 20 (800MHz) 4G data and Band 1 (2100MHz) 3G on the CW500?
Band 20 (800 MHz) carries EE, O2, Vodafone and Three 4G LTE data over long rural distances; Band 1 (2100 MHz) carries 3G UMTS data, voice calls and SMS across the same four networks and acts as fallback when 4G drops. The CW500 amplifies both at once, so a phone keeps 4G data where available and reverts to boosted 3G calls in areas without 4G, rather than falling dead.
How much does "up to 500m²" cover, and what does it fit?
Up to 500 m² (about 5,382 ft²) covers a large detached house or villa, a large multi-storey family home, a rural large home or holiday cottage, a small office/café/shop/warehouse, or multi-room coverage across a large garage workshop. The included Yagi and up to 3 indoor whips spread boosted 4G and 3G around that footprint; an estate or multi-building site needs a multi-unit system.
How do 50 simultaneous users work on the CW500?
The CW500 supports up to 50 phones or data devices connected at the same time, sharing boosted Band 20 4G data and Band 1 3G capacity across a large family home, small office, café or warehouse. Beyond 50 active devices the shared RF capacity thins out; it is connected capacity, not a guaranteed 50 separate high-speed lines at once.
What do 60dB uplink, 65dB downlink gain and the ≥20dBm output mean on the CW500?
Gain in dB measures how much the amplifier strengthens the incoming signal: 60 dB uplink lifts the phone's signal back to the mast and 65 dB downlink lifts the mast's signal to the phone. Output in dBm measures final radiated strength; ≥20 dBm is 3 dBm more (about double the radiated power) than the CW250's ≥17dBm and 10 dBm more than the CW200's ≥10dBm, which spreads boosted 4G and 3G further across the larger 500m² footprint within Ofcom licence-exempt limits.
The Yagi directional aerial — is it really included, and why does that matter?
Yes. Unlike the CW100, CW200 and CW250, which ship a 5 dBi omni as standard and offer the high-gain Yagi as a paid upgrade, the CW500 full kit already includes the high-gain Yagi directional aerial. The Yagi aims at the nearest mast and pulls a much weaker fringe donor than an omni, which is why reviewers in Devon, Wales and Norfolk report going from 1 bar to full bars — especially useful in rural weak-signal locations.
Does the CW500 boost 2G voice (Band 8 900MHz or Band 3 1800MHz)?
No. The CW500 covers Band 20 (4G) and Band 1 (3G) only; it does not amplify 2G GSM voice on Band 8 (900MHz) for O2/Vodafone or Band 3 (1800MHz) for EE. Calls work over boosted 3G Band 1 or over 4G VoLTE where the handset and network offer it; if you specifically need O2/Vodafone 2G voice fallback, the Band 20+8 CG500 at the same £485.00 is the correct choice.
Expandable coverage — can I add up to 3 indoor antennas via splitter?
Expandable coverage by adding indoor antenna, splitter, cable if the outside signal is strong. When the outdoor donor is strong, a 3-way passive splitter splits the indoor feed to up to 3 whips on far rooms, floors or zones using extra coaxial cable; splitting weakens each branch, so it only helps with a strong donor, and keep outdoor-indoor separation to prevent feedback.
What upgrades are available (cable, surge protector) and how much donor is needed?
The full kit ships with the high-gain Yagi on a 10m outdoor cable plus a 5m indoor cable; upgrade the outdoor cable to 20/30/40/50m for a remote roof or long run, and add a 18KA lightning surge protector on an exposed mount. You still need at least 1–2 bars of usable outdoor Band 20/Band 1 signal at the Yagi point; a booster cannot create signal where none exists.
Does the CW500 support VoLTE, and will it boost 5G? What about returns and delivery?
The CW500 boosts 4G LTE data (Band 20) and 3G UMTS data/calls/SMS (Band 1); calls over 4G work when the handset and network offer VoLTE. It does not boost 5G NR on any band and it does not boost 2G GSM. It carries a 365-day money-back guarantee with free shipping (handling 1–2 working days, UK transit 10–15 working days; return shipping deducted from refund), covering 15 European countries.
Learn More: CW500 Guides & Comparisons
Best 3G+4G Signal Booster UK (500m² Flagship) — 2026 Guide
How to choose a Band 20+1 500m² booster giving EE/O2/Vodafone/Three 4G data and 3G calls at £485.00 with the Yagi included for large homes and offices.
CW500 vs CW250 vs CG500
Honest UK comparison of Band 20+1 (500m² 50-user ≥20dBm Yagi-included) against CW250 (250m² omni) and Band 20+8 O2/Vodafone 2G voice at £485.00.
Mobile Booster Installation Guide (500m²)
Yagi mast aiming, 10m+5m cable routing, 3-way splitter 3-antenna expansion, 50-user testing and troubleshooting for UK large homes.
Band 20+1: 4G & 3G All-Networks Explained
Why 4G rides Band 20 (800MHz) and 3G fallback rides Band 1 (2100MHz), and how the CW500 flagship dual-band matrix delivers both across 500m².
Enhanced Coverage
Experience seamless connectivity with the 3G & 4G LTE Mobile Signal Booster, designed to cover up to 500m². Perfect for homes, offices, and warehouses, it ensures that every corner of your space receives a strong signal, eliminating dead zones.
Multi-Network Compatibility
This booster is compatible with major UK networks including EE, O2, Vodafone, and Three. No matter which provider you use, enjoy improved signal strength and reliability for all your devices, making it ideal for households with multiple users.
Easy Installation
Setting up the mobile signal booster is a breeze. The complete kit includes all necessary components, and with straightforward instructions, you can have it up and running in no time, ensuring you stay connected without hassle.
High Performance
With dual-band support for 800MHz and 2100MHz frequencies, this booster enhances both 3G and 4G LTE signals. Enjoy faster data speeds, clearer voice calls, and a more reliable connection, whether you're streaming, browsing, or working from home.
Support for Multiple Users
Designed to support up to 50 simultaneous users, this booster is perfect for families or small offices. Everyone can enjoy a stable connection without interruptions, making it an essential addition to any shared space.
Durable and Reliable
Built to last, the 3G & 4G LTE Mobile Signal Booster is designed for durability and consistent performance. Say goodbye to dropped calls and slow internet speeds, and enjoy a reliable connection that keeps you connected when it matters most.
3 Steps to Full Bars
1. Place the Outdoor Antenna
Mount the antenna where you get the best signal.
2. Connect the Booster Inside
Plug in the booster and connect to the antenna.
3. Enjoy Full Bars Everywhere
Clear calls, fast data, and no more dead zones.
Mobile Signal Booster 3G 4G LTE EE O2 Vodafone Three Indoor Coverage Dual Band Booster Improve Mobile Signal UK Mobile Networks Cellular Signal Amplifier
It boost 3G and 4G LTE signal on 800MHz, 2100MHz frequency, the frequencies used in UK by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It can boost UK Three, EE, O2, Vodafone etc ALL mobile network operators for improving 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use 3G. The booster is a high-performance booster, boost indoor signal cover an area of up to 500 m2, perfect for medium houses, offices, warehouse and more.
This system is compatible with all 4G and 3G mobile phone networks, will provide coverage on both 800MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G/4G LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 500 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Full kits already include it, no matter outdoor your phone best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide

Specification
| Application & Bands | [3G & 4G/LTE Data] (Band 20, 1) |
| Country | United Kingdom |
| Boost All On | EE (3G & 4G) O2 (3G & 4G Vodafone (3G & 4G) Three (3G & 4G) Asda (3G & 4G) BT (3G & 4G) Freedom Pop (3G & 4G) Giffgaff (3G & 4G) iD Mobile (3G & 4G) Lycamobile (3G & 4G) Lebara (3G) TalkTalk (3G) Talkmobile (3G & 4G) Orange (3G & 4G) Plusnet Mobile (3G & 4G) Sky Mobile (3G & 4G) Smarty Mobile (3G & 4G) Tesco (3G & 4G) The People's Operator (3G & 4G) T-Mobile (3G & 4G) Virgin (3G & 4G) |
| Users Supporting | 50 Simultaneously |
| Band | Dual Band 20 & 1 |
| Frequency | 800MHz & 2100MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 832~862 MHz; 1930~1990 MHz |
| Down-link | 791~821 MHz; 2110~2180 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| What’s Included | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x UK Type Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Custom your solution
Expandable coverage by adding indoor antenna if the outside signal is strong.

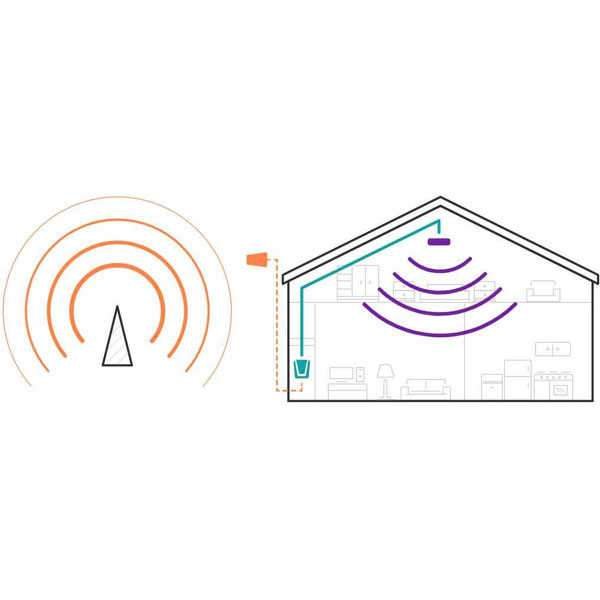

How It Works

1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.

Application Scenarios

Home

Office

Garage

Metal Buildings
CW500 3G+4G signal booster UK Band 20 Band 1 500m²; CW500 EE O2 Vodafone Three 4G data plus 3G calls dual-band booster 50 users; Band 20 800MHz Band 1 2100MHz dual-band home repeater 500m² 60/65dB 20dBm Yagi included; £485.00 all-network 3G 4G booster 50 users UK Yagi directional included 3 antennas; large detached house villa office warehouse 4G+3G booster CW500
buy EE O2 Vodafone Three dual band 3G 4G booster UK large home 500m²; EE 4G data plus 3G calls signal booster 500m² 50 users Yagi included; O2 Vodafone Three 4G and 3G fallback booster rural large home 500m²; giffgaff Sky Tesco Lyca O2/EE network 4G plus 3G booster large family house; small office cafe shop warehouse 3G+4G booster 50 simultaneous users; Boost4U CW500 price £485.00 MBCW500gb Yagi included full kit; Band 20+1 Yagi included weak donor cable 50m surge protector 3-way splitter 3 antennas; rural village 4G 3G all-network booster UK order 500m² large house
what is a Band 20 Band 1 dual band 3G 4G booster for EE O2 Vodafone Three; why does 4G use Band 20 800MHz and 3G fallback Band 1 2100MHz; how does a 3G+4G booster keep calls connected Ofcom licence exempt UK; how far does a 500m² booster cover vs a 250m² or multi-unit system; do signal boosters need outside donor bars to work; what do 60dB 65dB gain and 20dBm output mean for a large home repeater; why is the Yagi directional aerial included on the CW500 full kit; can I add up to 3 indoor antennas via 3-way splitter and extra cable
CW500 vs CW250 Band 20+1 250m² 25-user 17dBm omni booster; CW500 vs CG500 Band 20+8 O2/Vodafone 2G voice booster; CW500 vs CD500 Band 20+3 EE O2/Vodafone 4G booster; Band 20+1 vs Band 20+8 vs Band 20+3 which dual band should you buy £485.00; CW500 vs cheap Amazon booster that did nothing; 500m² large detached house vs 250m² three-bed vs multi-unit system sizing; CW500 Yagi included vs CW250 paid Yagi upgrade value; 3G fallback vs 2G voice fallback which do you need UK large home
Why You'll Love It
Powerful Signal Boost
Easy Installation
Networks Supported
Fast Speeds
Crystal Clear Calls
Wide Coverage Area
Award-Winning Signal Booster
2026 Winner
Smart Features, Made Simple
Easy Setup
Smart Technology
Energy Efficient
Reliable Performance
24/7 Support
Secure & Safe
- Choosing a selection results in a full page refresh.
