It boost 3G and Voice Calls signal on 2100MHz, 1800MHz frequency, the frequencies used in Europe by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It work on both 1800Mhz (Band 3) & 2100Mhz (Band 1) frequencies for improving Europe mobile carrier networks 3G & Voice Calls signal. If you have a 3G ready phone, but you’re not in a 3G area, you’ll still be able to use voice calls. The booster is a high-performance booster, boost indoor signal cover an area of up to 500 m2, perfect for medium houses, offices, warehouse and more.
This system is compatible with 3G and Voice Calls mobile phone networks, will provide coverage on both 1800MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
No Miss Important Calls
Reliable 3G Data
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 500 sq.m.

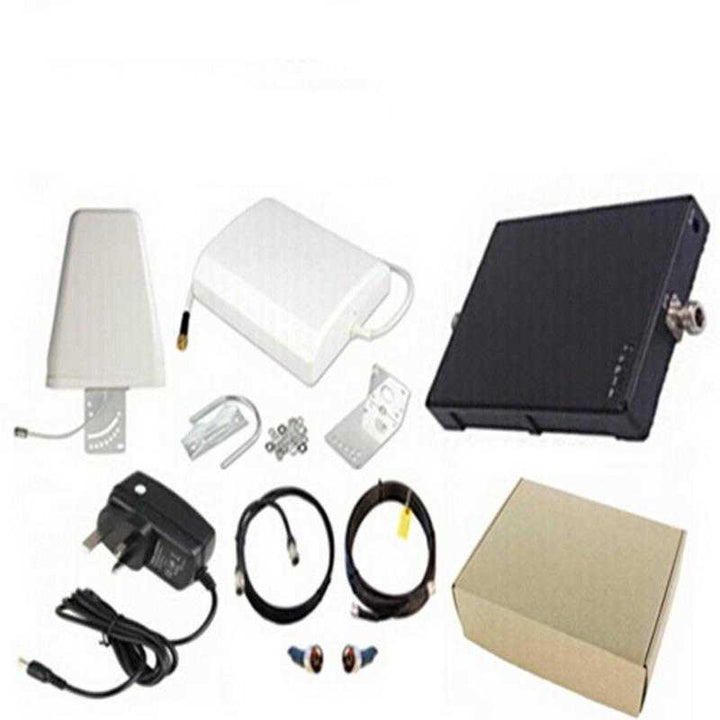

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
1. We recommend doing a "loose" install first, so that you can test where best to place your cables and antennas.
2. Install the outdoor panel antenna in a location where there is good mobile signal. (usually this is your roof).
3. Using the supplied 10m cable, run it down inside your house to the booster.
4. Run cable from external antenna to booster. Attach this cable to the repeater.
5. Then attach the indoor antenna to the repeater.
6. Plug in the power supply.
Upgrade External CablesIf our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade ProtectorLightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.

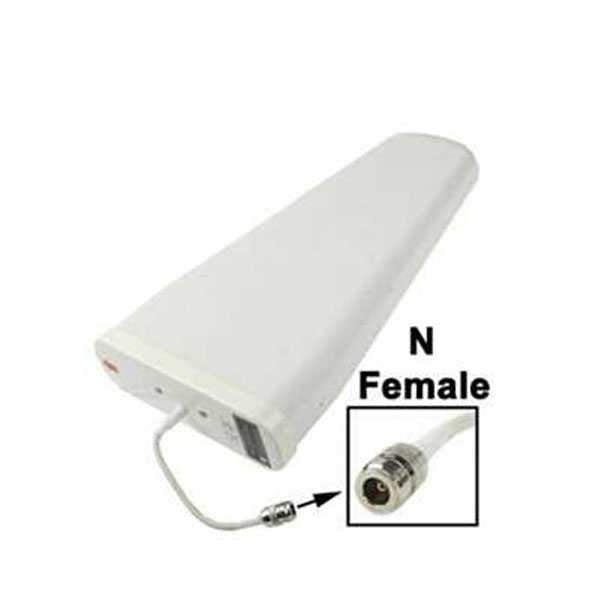

About External AerialHigher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Full kits already include it, no matter outdoor your phone best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
|Application & Bands||[3G Data & Voice Calls] (Band 3, 1)|
|Boost All On||1800MHz 2100MHz Networks
Download and Install APP "Network Signal Pro"
|Users Supporting||50 Simultaneously|
|Band||Dual Band 3 & 1|
|Frequency||1800MHz & 2100MHz|
|Gain(dB)||Uplink Gp≥60; Downlink Gp≥65|
|Up-link||1710~1785 MHz; 1930~1990 MHz|
|Down-link||1805~1880 MHz; 2110~2180 MHz|
|Power Adapter||Input: AC 100V~240V 50/60Hz; Output: DC 5V|
|Kit Includes||1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable|
