Calls - 500m2 (Vodafone/Orange Mobinil) Mobile Phone Signal Booster
Enhanced Call Clarity
Experience crystal-clear voice calls without interruptions. Our mobile phone signal booster enhances the 900MHz frequency used by Vodafone and Orange Mobinil, ensuring that you enjoy every conversation without missing a beat.
Quick SMS Sending & Receiving
Stay connected with reliable SMS functionality. The booster significantly improves the text message transmission speed, allowing you to send and receive messages swiftly even in areas with weak reception.
Broad Coverage Area
Transform your space with up to 500m² of boosted coverage. This feature is perfect for medium-sized homes and offices, ensuring that everyone within the area has access to a strong mobile signal.
Upgrade Options for Better Performance
Take your signal experience to the next level with our upgrade options, including enhanced external cables and higher gain antennas. Perfect for areas with challenging signal conditions, optimizing your coverage even further.
Lightning Surge Protection
Protect your investment with our built-in lightning surge protector. This essential feature safeguards your booster against unexpected surges, ensuring uninterrupted service during stormy weather.
User-Friendly Installation Guide
Setting up our mobile phone signal booster is a breeze! With a straightforward installation guide, you can easily connect and optimize the system for immediate signal improvement in your home or office.
It boost Calls signal on 900MHz frequency, the frequency used in Egypt used by mobile networks to deliver their mobile services: 2G (also known as GSM). It work on 900Mhz (Band 8) frequency for improving Vodafone and Orange Mobinil mobile carrier networks Voice Calls & Text signal. The booster is a high-performance booster and boost indoor signal coverage up to 500 m2, perfect for medium houses, offices, warehouse and more.
No Miss Important Calls
SMS Text Messages Quickly
Reception Up to 500 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | Voice Calls & Text (Band 8) |
| Country | Egypt |
| Boost All On | Vodafone (2G) Orange Mobinil (2G) |
| Users Supporting | 50 Simultaneously |
| Band | Single Band 8 |
| Frequency | 900MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 890~915 MHz |
| Down-link | 935~960 MHz |
| Export Power(Po) | ≥10dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

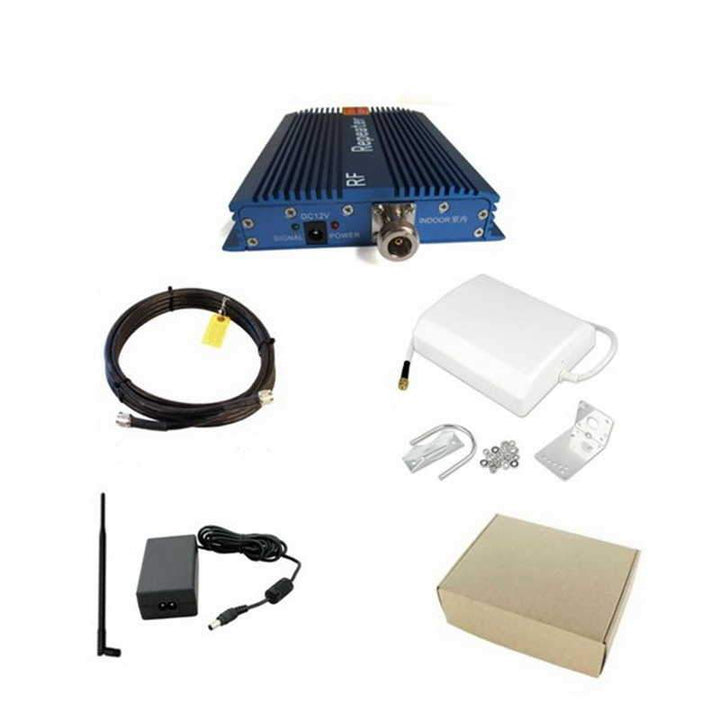

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a mobile phone signal booster? - A mobile phone signal booster is a device that helps improve the reception of mobile signals in areas where they are weak. It works by picking up signals from outside, amplifying them, and then broadcasting the stronger signals to your mobile devices inside your home or office.
- How does the 500m2 mobile signal booster work? - The 500m2 mobile signal booster receives weak mobile signals from outside, boosts them, and then sends the stronger signals to your phones or devices. This means you'll have clearer calls and faster text messages when you're indoors.
- Who can use this signal booster? - This signal booster is designed for Vodafone and Orange Mobinil users in Egypt. It can support up to 50 users at the same time, making it great for homes, offices, and more.
- What is the coverage area of this booster? - The 500m2 mobile signal booster can cover an area of up to 500 square meters. This makes it suitable for medium-sized houses, offices, and other places needing better mobile reception.
- Do I need good signal outside for the booster to work? - Yes, you need to have at least a weak signal outside. If there's no signal outside your building, the booster won’t be able to amplify anything. You should have at least 1 or 2 bars of signal outside.
- Can I install the booster myself? - Yes, you can install the booster yourself! Just follow the provided instructions. You will need to place the outdoor antenna where it can get a good signal and connect it to the indoor unit.
- What upgrades can I make to the antenna? - You can upgrade the outdoor antenna to a higher gain Yagi Antenna for better performance, especially if you have weak signals outside. This can help you get a stronger signal, improving call and text quality.
- What kind of maintenance does the booster need? - The mobile signal booster requires very little maintenance. Ensure the outdoor antenna is clean and unobstructed, and check the connections from time to time to make sure they are secure.
- What if my booster stops working? - If your booster stops working, first check all the connections to ensure they're secure. Then, check for any weak outside signals. If problems persist, refer to the user manual or contact customer support for help.
- Is it safe to use a mobile signal booster? - Yes, using a mobile signal booster is safe. It complies with regulations and does not harm your devices or health. However, it is important to install it according to the guidelines to ensure optimal performance.
