Calls - 2000m2 (Vodafone/Orange Mobinil/Etisalat) Mobile Phone Signal Booster
It boost Calls signal on 900MHz, 1800MHz frequencies, the frequencies used in Egypt used by mobile networks to deliver their mobile services: 2G (also known as GSM). It work on both 900Mhz (Band 8) & 1800Mhz (Band 3) frequencies for improving Vodafone, Orange Mobinil and Etisalat mobile carrier networks Voice Calls and Text signal. It is a high-performance booster, boost indoor signal cover an area up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
This system is compatible with all GSM mobile phone networks, will provide coverage on both 900MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Band Checker: Check frequency band is 8 or 3 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.
No Miss Important Calls
SMS Text Messages Quickly
Reception Up to 2,000 sq.m.

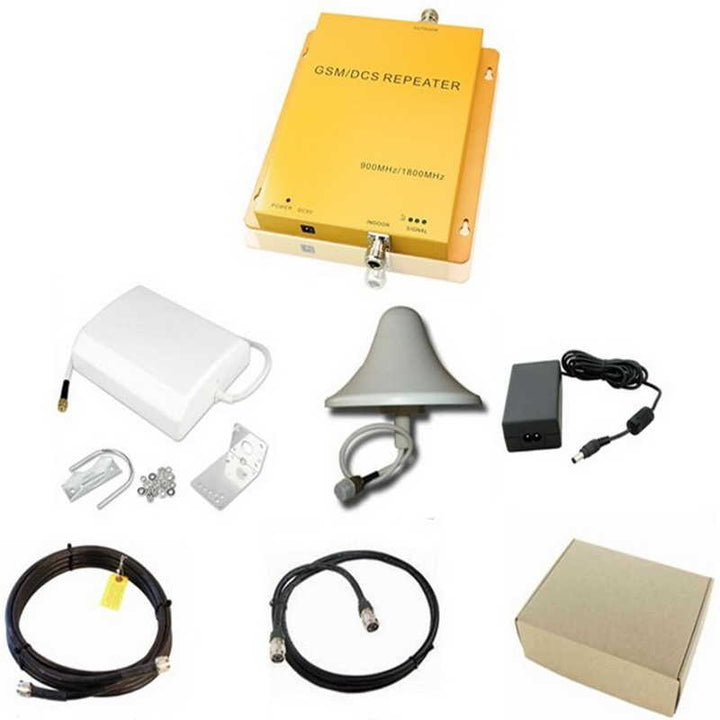

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [Voice Calls] (Band 8, 3) |
| Country | Egypt |
| Boost All On | Vodafone (2G) Orange Mobinil (2G) Etisalat (2G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 8 & 3 |
| Frequency | 900 & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 890~915 MHz; 1710~1785 MHz |
| Down-link | 935~960 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| Kit Includes | 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable |

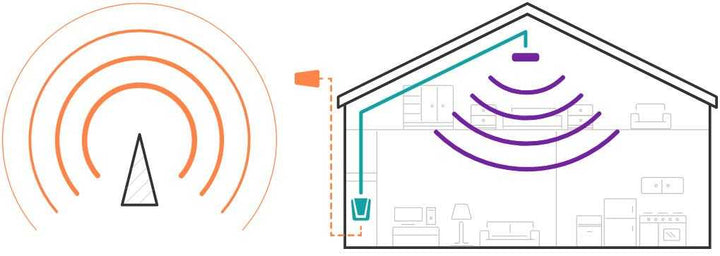

Example Installation
