3G - 500m2 (Vodafone/Orange Mobinil/Etisalat) Mobile Phone Signal Booster
Enhanced 3G Signals
Experience crystal-clear calls and uninterrupted data with our powerful 3G signal booster designed specifically for Vodafone, Orange Mobinil, and Etisalat networks. Operating at 2100MHz, it significantly amplifies the 3G coverage in your space, ensuring you stay connected without disruptions.
Coverage for Large Spaces
With an impressive coverage area of up to 500 square meters, this booster is ideal for medium-sized homes, offices, and warehouses. Say goodbye to weak signals and enjoy strong and reliable connectivity throughout your entire space.
Simultaneous User Support
Our advanced booster supports up to 50 simultaneous connections, making it perfect for both family homes and bustling office environments. Whether for personal or professional use, everyone can enjoy enhanced signal strength without interference.
Easy Installation Process
Setting up your mobile signal booster is straightforward and hassle-free. Simply connect the indoor and outdoor antennas, point the external antenna towards the cell tower, power up the device, and enjoy stronger signals without technical complexity.
Robust Signal Gain
Equipped with significant amplification capabilities, our booster achieves uplink gains of over 60 dB and downlink gains of 65 dB. This ensures that your signal is not only stronger but also more reliable, enhancing your calling and internet experience further.
Custom Upgrade Options
For even better performance, consider our upgrade options like high-gain antennas and lightning surge protectors. Tailor your booster setup to meet your specific needs and deal with any geographical challenges to maximize your signal strength and reliability.
It boost 3G signal on 2100MHz frequency, the frequency used in Egypt used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G). It work on 2100Mhz (Band 1) frequency can boost Vodafone, Orange Mobinil and Etisalat mobile carrier networks for improving 3G signal. It is a high-performance booster, boost indoor signal cover an area up to 500 m2, perfect for medium houses, offices, warehouse and more.
Eliminates Dropped Calls
Reliable 3G Data
Reception Up to 500 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G] (Band 1) |
| Country | Egypt |
| Boost All On | Vodafone (3G) Orange Mobinil (3G) Etisalat (3G) |
| Users Supporting | 50 Simultaneously |
| Band | Single Band 1 |
| Frequency | 2100MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 1930~1990 MHz |
| Down-link | 2110~2180 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

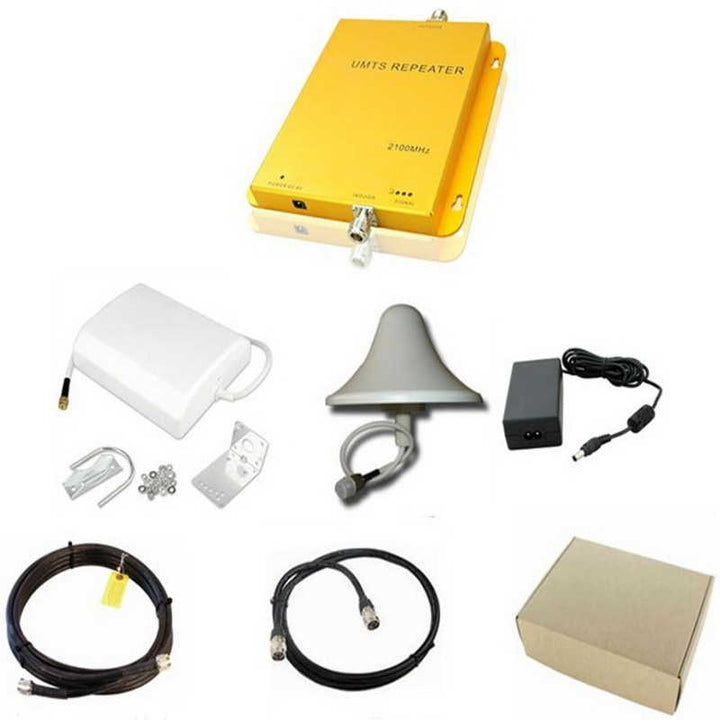

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 3G Signal Booster? - A 3G signal booster is a device that helps improve your mobile phone signal inside your home or office. It makes calls clearer and speeds up your internet by boosting the weak signals from the outside.
- How does the 3G Signal Booster work? - The booster works in three steps: first, it receives weak signals from outside using an antenna. Then, it amplifies these signals. Finally, it broadcasts the stronger signals inside your home, letting your phone connect better.
- Can the booster help with dropped calls? - Yes! By increasing the signal strength, the 3G signal booster can help eliminate dropped calls. This means you can talk without interruptions and stay connected.
- What area can the booster cover? - This particular booster can cover an area up to 500 square meters. It's suitable for medium-sized homes or offices where people need reliable mobile service.
- Which networks does the signal booster support? - The signal booster works with major networks in Egypt like Vodafone, Orange Mobinil, and Etisalat. It boosts 3G signals on the 2100MHz frequency, commonly used by these networks.
- What if I don't have signal outside? - The booster needs some signal to work. If there is no signal outside, it won't be able to amplify anything. Make sure you have at least 1-2 bars of signal outside before using it.
- How many users can connect to the booster at once? - The 3G signal booster can support up to 50 users at the same time. This is great for busy homes or offices where many devices are connected.
- Can I upgrade the antenna for better performance? - Yes! You can upgrade to a higher gain antenna if your indoor signal is weak. This can help improve the performance of the booster, especially if your phone shows only 1 or 2 signal bars.
- Is it easy to install the booster? - Yes, installing the booster is quite simple. You'll need to connect the indoor and outdoor antennas, make sure they are positioned correctly, and power it on. A full installation guide is available for help.
- What safety features does the booster have? - The booster comes with a lightning surge protector. This means it can protect your devices from power surges caused by lightning strikes, ensuring they stay safe while in use.
