4G LTE - 2000m2 (free) Mobile Phone Signal Booster

It boost 4G LTE signal on 2600MHz frequency, the frequency used in France used by mobile networks to deliver their 4G mobile services. It work on 2600Mhz (Band 7) frequency for improving Orange, Bouygues, SFR, free etc ALL mobile carrier networks (except Le French, Lebara and Lycamobile) 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area of up to 2,000 m², great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.

Note: This booster improve operators' 4G LTE signal only on Band 7 - 2600MHz frequency, you can purchase it directly if you sure your phone worked on this frequency. If unsure, firstly double check frequency 2600MHz in your area is used for 4G network.

Upgrade External Cables

If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.

---

Upgrade Protector

Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.

---

About External Aerial

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Full kits already include it, no matter outdoor your phone best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide

---

Specification

Application & Bands	[4G/LTE] (Band 7)
Country	France
Boost All On	Orange (4G) Bouygues (4G) SFR (4G) free (4G) Cellhire (4G) La Poste Mobile (4G) NRJ (4G) Prixtel (4G) Reglo Mobile (4G) SOSH (4G) Transatel (4G) Virgin Mobile (4G)
Users Supporting	200 Simultaneously
Band	Single Band 7
Frequency	2600MHz
Gain(dB)	Uplink Gp≥70; Downlink Gp≥75
Up-link	2500~2570 MHz
Down-link	2620~2690 MHz
Export Power(Po)	≥27dBm
Power Adapter	Input: AC 100V~240V 50/60Hz; Output: DC 5V

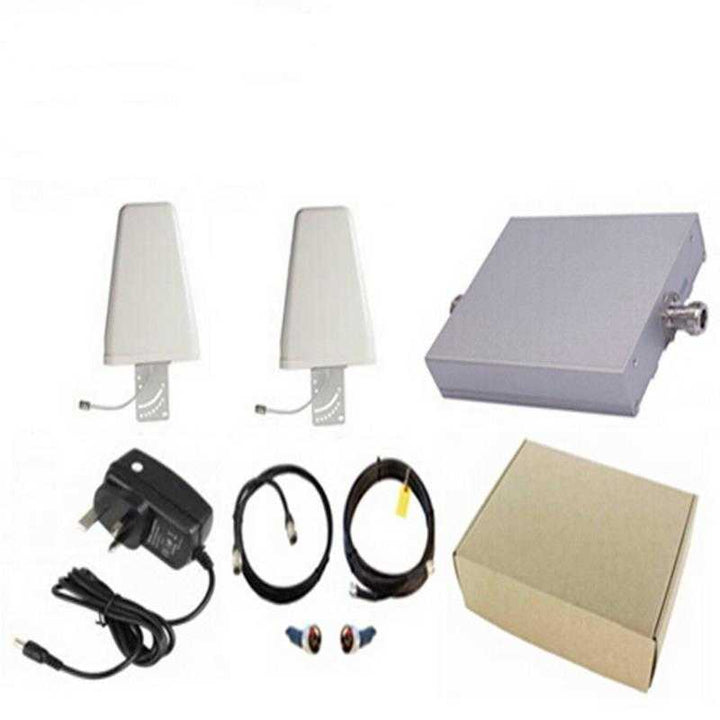

Kit Includes	1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x EU Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable

Warming Tips:

Band Confirmation: This booster can boost signals on Band 7, please check the band of your devices firstly.

For iPhone: Dial *3001#12345#* → Press call button → Click 'Serving Cell Info' → Check 'Freq Band Indicator'.

For Android: Download 'LTE Discovery' APP → Click ‘SIGNALS’ → Check 'EARFCN'. More refer to Quick Start Guide .

External Signal Needed: The signal booster can only amplify signal but can't create signal. If there is no signal outside, it won't work, please make sure you get 1-2 bars signal outside.

Expandable coverage by adding a second indoor antenna if the outside signal is strong.

2 Indoor Antennas

3 Indoor Antennas

4 Indoor Antennas

10 Indoor Antennas

Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

How It Works

1

Receives signal
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster

2

Boosts signal
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3

Broadcasts signal
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.

Get stronger signal

Normal Cell Coverage

Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.

Signal Coverage with our booster

Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.

Installation

1. Connect the indoor antenna to the MS port.
2. Connect the outdoor antenna to the BS Port.
3. Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
4. Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
5. Power on the booster and check the signal strength.
6. Adjust the outdoor antenna until you get the best signal strength.

IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.

Read more about User Manual Documentation.

Application Scenarios

Home

Office

Garage

Metal Buildings
