3G & Calls - 250m2 (Three/Vodafone/Eir/Teso/Virgin) Mobile Signal Booster

It boost All 3G & Calls signal on 900MHz, 2100MHz frequencies, the frequencies used in Ireland used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It can boost all network on Three (O2), Vodafone, Eir Mobile (eMobile), Meteor, Virgin Mobile, Tesco, 48 Months, BlueFace, Lycamobile and Post Mobile for improving 3G signal. It also can boost all network operators for improving Voice Calls & Text signal. It is the best suitable for medium size, boost indoor signal areas up to 250 m², perfect for home, cafes, restaurants, pubs, clubs and more.

This system is compatible with all 3G mobile phone networks, will provide coverage on both 900MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!

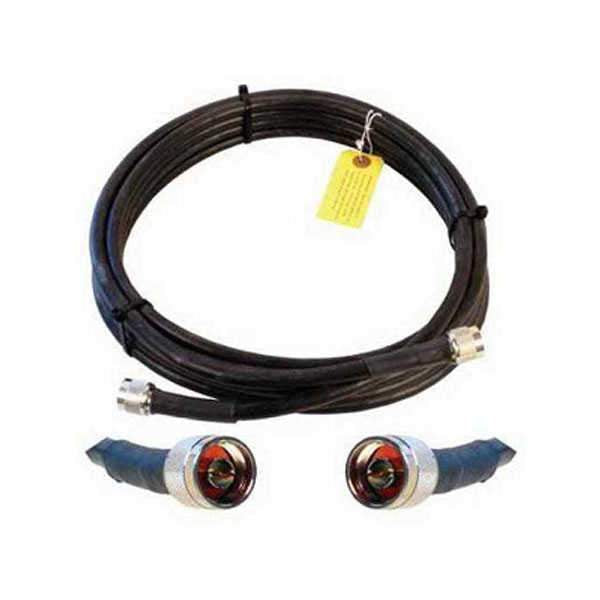

Upgrade External Cables

If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.

---

Upgrade External Aerial

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide

---

Upgrade Protector

Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.

---

Specification

(scroll to view all)

Application & Bands	[3G Data and Voice Calls] (Band 8, 1)
Country	Ireland
Boost All On	Three (2G & 3G) Vodafone (2G & 3G) Eir Mobile (2G & 3G) Meteor (2G & 3G) 48 Months (2G & 3G) BlueFace (2G & 3G) eMobile (2G & 3G) Lycamobile (2G & 3G) O2 (2G & 3G) Post Mobile (2G & 3G) Tesco Mobile (2G & 3G) Virgin Mobile (2G & 3G)
Users Supporting	25 Simultaneously
Band	Dual Band 8 & 1
Frequency	900 & 2100MHz
Gain(dB)	Uplink Gp≥50; Downlink Gp≥55
Up-link	890~915 MHz; 1930~1990 MHz
Down-link	935~960 MHz; 2110~2180 MHz
Export Power(Po)	-70~-40 dBm/FA(1.23MHz)
Power Adapter	Input: AC 100V~240V 50/60Hz; Output: DC 5V

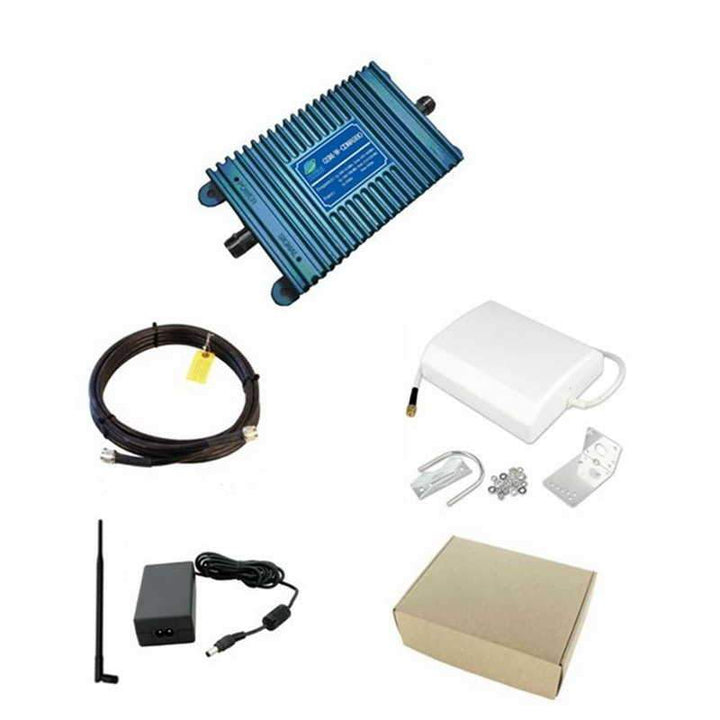

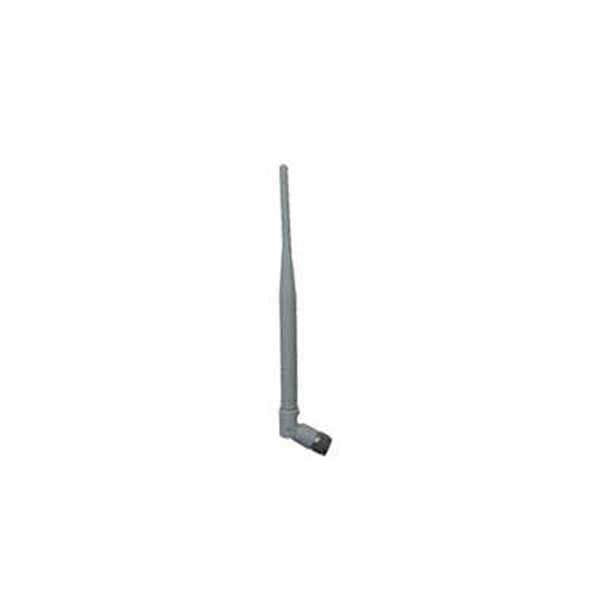

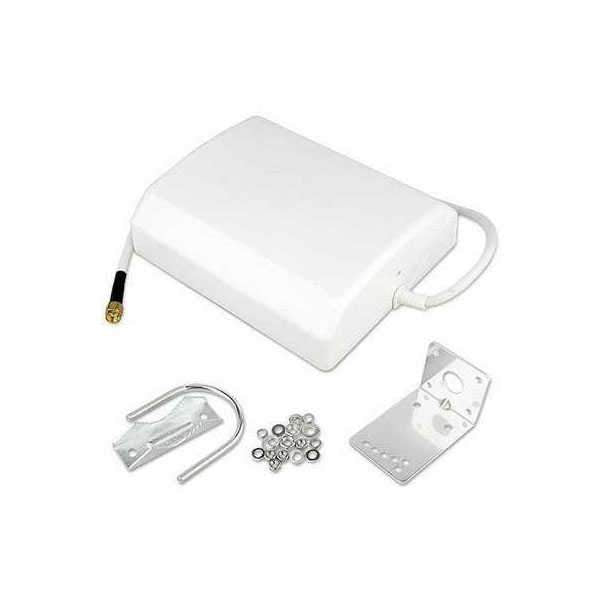

What’s Included	1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable

Warming Tips:

Band Confirmation: This booster can boost signals on Band 8 or 1, please check the band of your devices firstly.

For iPhone: Dial *3001#12345#* → Press call button → Click 'Serving Cell Info' → Check 'Freq Band Indicator'.

For Android: Download 'LTE Discovery' APP → Click ‘SIGNALS’ → Check 'EARFCN'. More refer to Quick Start Guide .

External Signal Needed: The signal booster can only amplify signal but can't create signal. If there is no signal outside, it won't work, please make sure you get 1-2 bars signal outside.

Expandable coverage by adding a second indoor antenna if the outside signal is strong.

2 Indoor Antennas

3 Indoor Antennas

4 Indoor Antennas

10 Indoor Antennas

Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

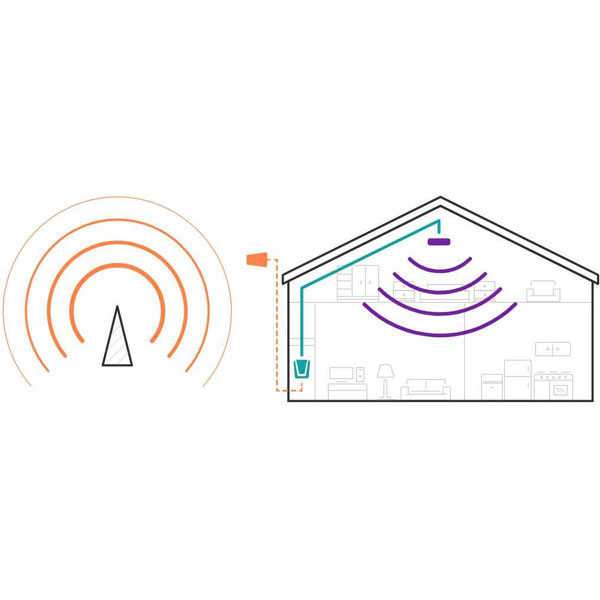

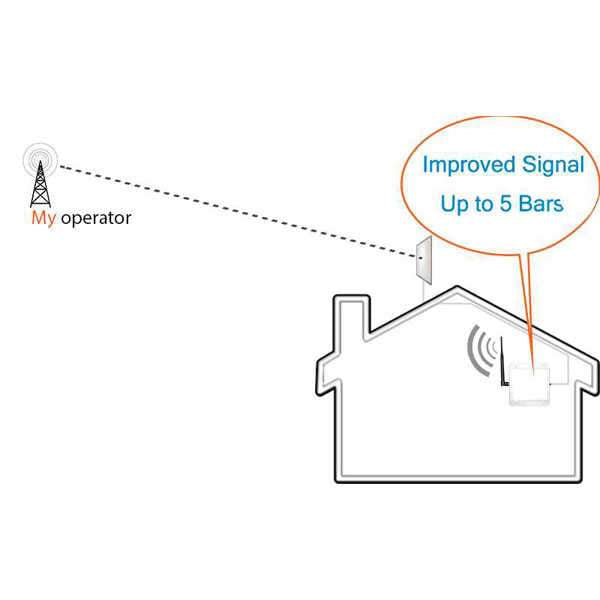

How It Works

1

Receives signal
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster

2

Boosts signal
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3

Broadcasts signal
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.

Get stronger signal

Normal Cell Coverage

Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.

Signal Coverage with our booster

Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.

Installation

1. Connect the indoor antenna to the MS port.
2. Connect the outdoor antenna to the BS Port.
3. Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
4. Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
5. Power on the booster and check the signal strength.
6. Adjust the outdoor antenna until you get the best signal strength.

IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.

Read more about User Manual Documentation.

Application Scenarios

Home

Office

Garage

Metal Buildings
