3G & Calls - 250m2 (Hot Mobile/012 Mobil/Orange/YouPhone) Mobile Signal Booster
Ultimate Signal Boosting
Experience superior signal enhancement with our 3G & Calls booster, designed to improve voice calls and data speeds on popular networks like Hot Mobile, 012 Mobil, Orange, and YouPhone. Covering areas up to 250m², this powerful solution ensures you stay connected whether at home, in cafes, or other indoor environments.
Dual Band Functionality
Our booster operates on both 900MHz and 2100MHz frequencies, effectively amplifying 3G and 2G signals simultaneously. This dual-band capability makes it an indispensable tool for households with users on different mobile networks, providing a reliable signal for all.
Eliminate Dropped Calls
Say goodbye to frustrating dropped calls! With our mobile signal booster, you’ll enjoy consistent voice clarity and fewer interruptions. Stay connected with friends, family, and important contacts, ensuring that every conversation counts.
Rapid SMS and Internet Speeds
Send and receive SMS text messages with lightning speed and enjoy faster upload and download rates for all your 3G internet activities. Our booster enhances your connectivity experience, making it perfect for streaming, browsing, or work-related tasks.
Wide Reception Coverage
Ensure reliable signal strength throughout larger spaces with up to 250m² coverage. This makes our booster ideal for various applications, from homes to restaurants and offices, ensuring everyone enjoys a strong connection.
Easy Installation & Customization
Setting up your mobile signal booster is a breeze! The kit includes everything you need, and customization options like enhanced outdoor cables or higher gain antennas provide the necessary upgrades for optimal performance.
It boost 3G and Calls signal on 900MHz, 2100MHz frequencies, the frequencies used in Israel used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It work on both 900Mhz (Band 8) & 2100Mhz (Band 1) frequencies boost Hot Mobile, 012 Mobil, Orange and YouPhone mobile carrier networks for improving 3G, Voice Calls and Text signal. It is the best suitable for medium size, boost indoor signal areas up to 250 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
This system is compatible with 3G mobile phone networks, will provide coverage on both 900MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 250 sq.m.

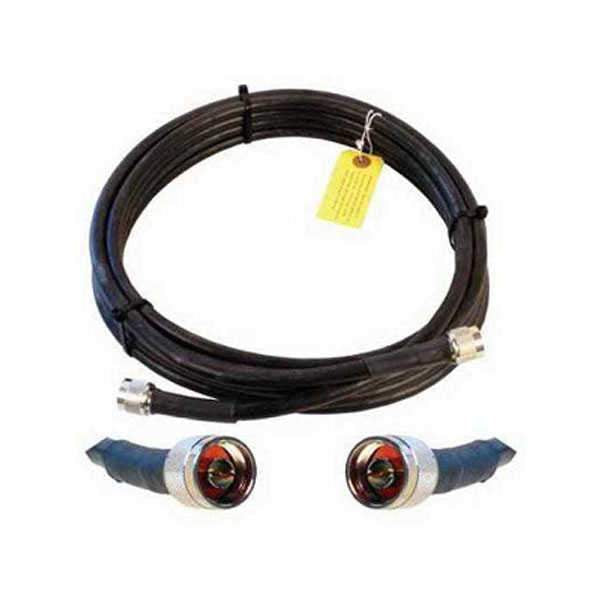

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G Data and Voice Calls] (Band 8, 1) |
| Country | Israel |
| Boost All On | Hot Mobile (3G & 2G) 012 Mobil (3G & 2G) Orange (3G & 2G) YouPhone (3G & 2G) |
| Users Supporting | 25 Simultaneously |
| Band | Dual Band 8 & 1 |
| Frequency | 900 & 2100MHz |
| Gain(dB) | Uplink Gp≥50 Downlink Gp≥55 |
| Up-link | 890~915 MHz 1930~1990 MHz |
| Down-link | 935~960 MHz 2110~2180 MHz |
| Export Power(Po) | -70~-40 dBm/FA(1.23MHz) |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

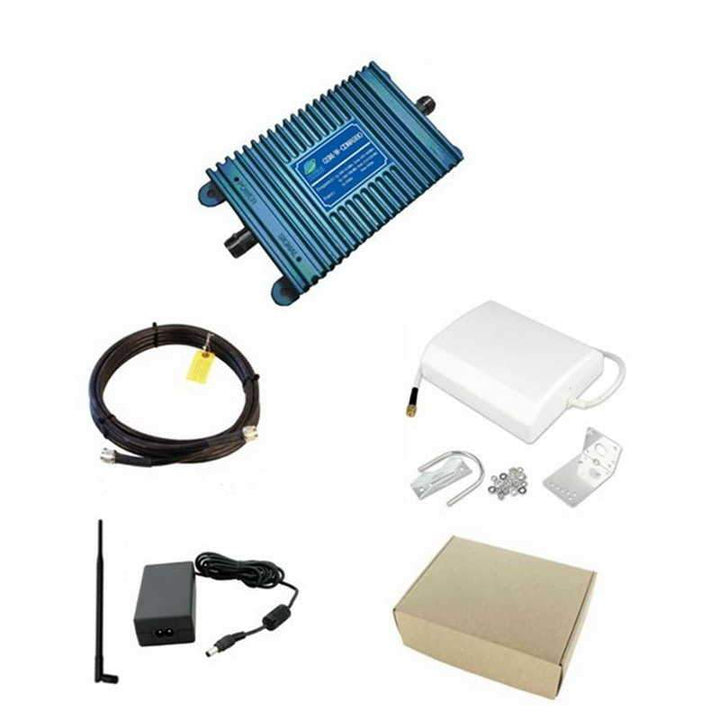

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable |

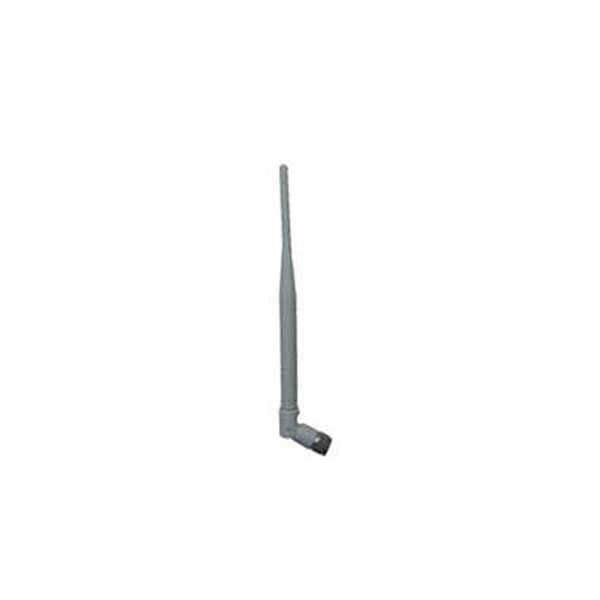

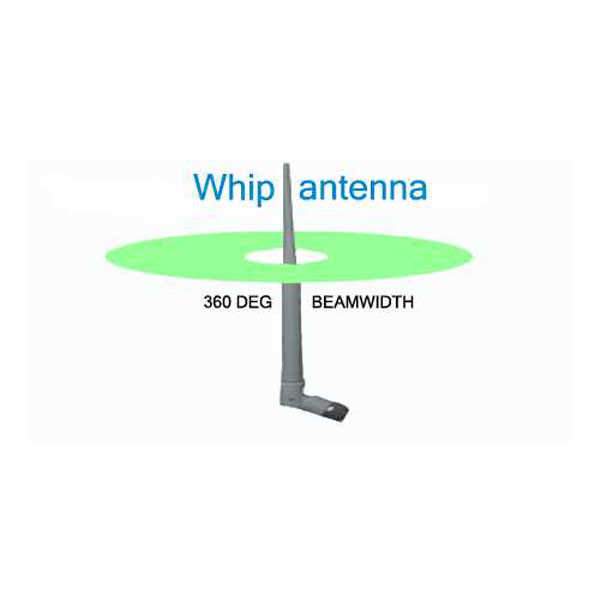

Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

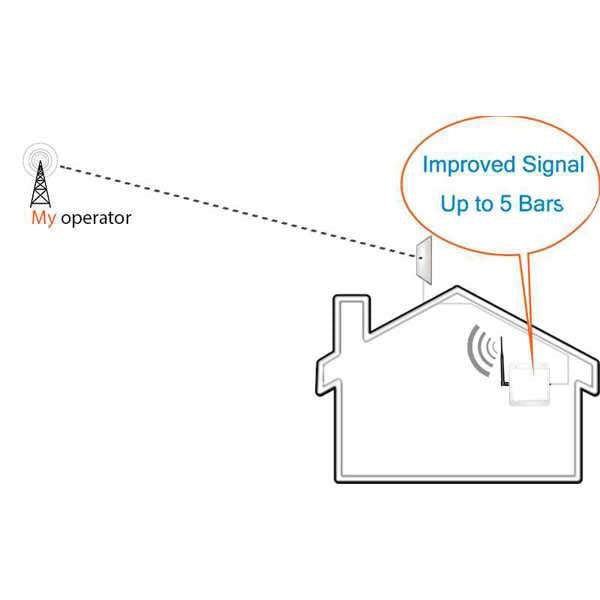

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is the purpose of the 3G & Calls booster? - The 3G & Calls booster is designed to improve mobile phone signals for calls and 3G internet. It works on specific frequencies used by popular mobile networks in Israel, helping users make clear calls and enjoy reliable internet without interruptions.
- How much area does the booster cover? - This mobile signal booster can cover areas up to 250 square meters. It's perfect for places like homes, offices, cafes, and other medium-sized spaces, ensuring that everyone in that area enjoys a strong signal.
- Which mobile networks are supported? - The booster supports several mobile networks in Israel, including Hot Mobile, 012 Mobil, Orange, and YouPhone. This means you can boost your 3G, 2G, and call signals on different networks at the same time.
- Can the booster work if there is a weak signal outside? - The signal booster needs a weak signal from outside to function properly. If there is no signal outside, it won’t be able to create one inside. Make sure that you have at least 1 or 2 bars of signal outdoors for the booster to work effectively.
- What do I need for installation? - For installation, you'll need the booster kit, which includes the booster unit, an outdoor antenna, an indoor antenna, and a power adapter. It’s advisable to have a good location chosen for the outdoor antenna to receive the best possible signal.
- How can I check the current signal frequency on my phone? - You can check your phone's signal frequency by dialing *3001#12345#* on iPhones or using an app like 'LTE Discovery' on Android. This will help you understand which frequency band your phone uses.
- What if I need more cable length for my installation? - If the standard cable length of 10 meters is not enough for your setup, you can upgrade to a longer external cable. This ensures that you can position your antennas in the best locations for optimal signal reception.
- What kind of upgrades are available for the booster? - You can upgrade to a higher gain outdoor antenna if your signal is weak. Also, a lightning surge protector can be added to protect your equipment from thunderstorm damage.
- How does the booster actually work? - The booster works by first receiving a weak signal through the outdoor antenna, then amplifying that signal using the booster unit, and finally broadcasting the improved signal throughout the indoor area for better call quality and internet speed.
- Is the booster easy to set up? - Yes, the booster is designed to be user-friendly. The installation process involves connecting the outdoor antenna and indoor antenna to the booster, followed by positioning them properly to maximize signal strength. A simple guide is provided to assist you through the setup.
