3G & 4G LTE - 200m2 (TIM/Vodafone/Wind) Mobile Phone Signal Booster
It boost 3G and 4G LTE signal on 800MHz, 2100MHz frequency, the frequencies used in Italy by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It work on both 800Mhz (Band 20) & 2100Mhz (Band 1) frequencies for improving TIM, Vodafone and Wind mobile carrier networks 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use 3G. Boost indoor signal cover an area up to 200 m2, is ideal for small apartments or offices.
This system is compatible with 4G and 3G mobile phone networks, will provide coverage on both 800MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
No Miss Important Calls
Reliable 4G/3G Data
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 200 sq.m.
Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
1. We recommend doing a "loose" install first, so that you can test where best to place your cables and antennas.
2. Install the outdoor panel antenna in a location where there is good mobile signal. (usually this is your roof).
3. Using the supplied 10m cable, run it down inside your house to the booster.
4. Run cable from external antenna to booster. Attach this cable to the repeater.
5. Then attach the indoor antenna to the repeater.
6. Plug in the power supply.
Upgrade External CablesIf our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External AerialHigher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:
2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade ProtectorLightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
|Application & Bands||[3G & 4G/LTE Data] (Band 20, 1)|
|Boost All On||TIM (3G & 4G)
Vodafone (3G & 4G)
Wind (3G & 4G)
Three 3 (3G)
Coop voce (3G)
DIGI Mobil (3G)
Ringo Mobile (3G)
|Users Supporting||20 Simultaneously|
|Band||Dual Band 20 & 1|
|Frequency||800MHz & 2100MHz|
|Gain(dB)||Uplink Gp≥60; Downlink Gp≥65|
|Up-link||832~862 MHz; 1930~1990 MHz|
|Down-link||791~821 MHz; 2110~2180 MHz|
|Power Adapter||Input: AC 100V~240V 50/60Hz; Output: DC 5V|

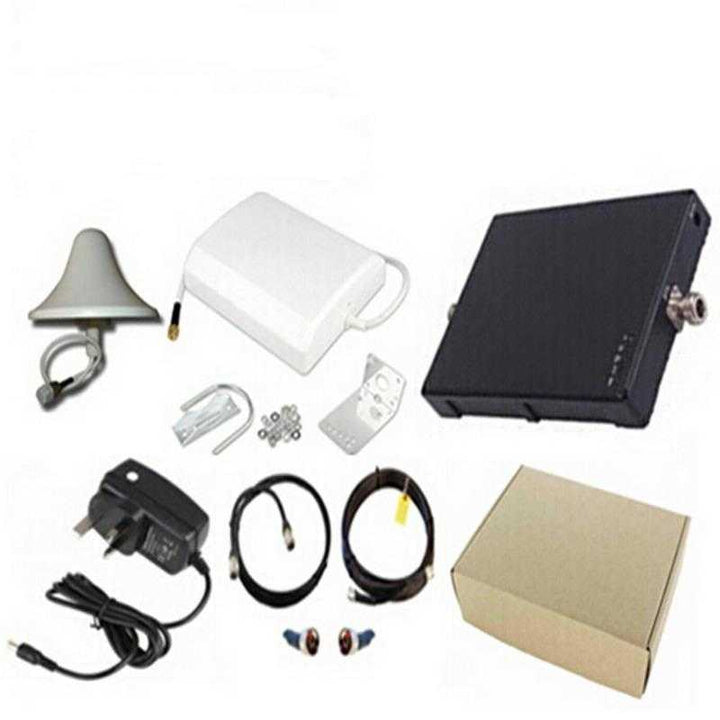

|Kit Includes||1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable, 1 x 5 Meters Indoor Cable|

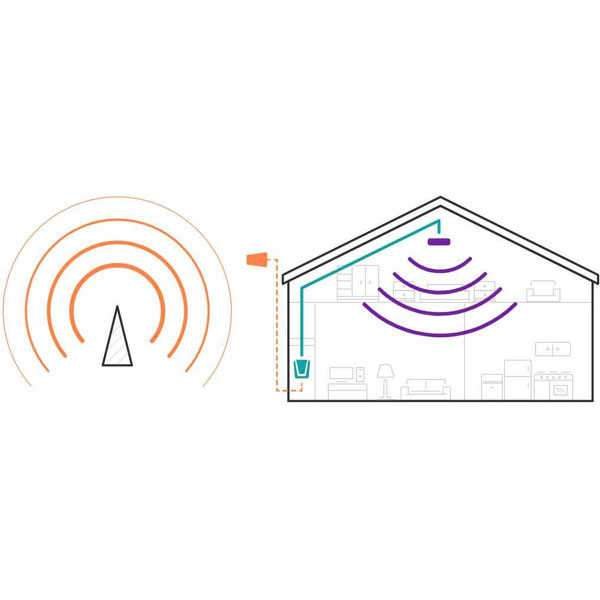

How Signal Booster Works
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get up to 32x stronger signal
Normal Cell CoverageDropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our boosterSignal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.
There are several products on the market that quite frankly do not live up to their promises. However our products set the bar as world-class products engineered for consumers from the same technology implemented by the carriers. They work by capturing a signal with a high gain external aerial antenna. The signal input is fed to the phone booster, which in turn amplifies and rebroadcasts a strong and clear signal in your home/office or buildings.
There are several factors that affect signal penetration into buildings including construction material (metal, concrete, wood), wall density, number of windows and building height. In addition to the physical construction of the building, poor signal can also be a result of your geographic location relative to the closest mobile mast. Many of our customers live in rural areas where low signal strength is common.
Most mobile phone users have experienced some sort of cellular network problems throughout the course of their overall mobile phone usage. Lack of signal, dropped calls and poor call quality are all caused by weak signal strength and network congestion. If you experience any of these symptoms in your home/office, warehouse, facility, basement, park, hospital, hall, farm, square, highway, boat, yacht, vehicle or buildings, a mobile repeater product can amplify the weak signal and provide full (4 or 5) bars of reception resulting in a strong, clear mobile signal. The same applies if you experience weak or slow text messaging, 3G broadband, WAP or any other cellular function – a mobile repeater kit can help you. For broadband data services, a mobile repeater will not only increase the coverage area, but it can improve data transfer speeds; unleashing the full potential of your mobile phone or 3G data card.
Please note that a mobile repeater CAN NOT produce a signal in an area where there is absolutely NO reception. However a mobile repeater CAN amplify a VERY POOR signal in turn producing a VERY STRONG signal at the output. One way to be sure if a mobile repeater will work for you is to see if you can locate an area somewhere inside your home or outside in the near vicinity where your cell phone picks up some amount of signal, even if is weak. Here, a mobile repeater product will amplify a very poor signal and produce a strong one at the output. If you have any questions or would like to discuss a solution, please feel free to contact us or visit our worldwide support centers.
Yes, our products are specifically designed for simple installation and can be used in both homes and businesses. Many consumers want to use their mobiles to replace an expensive landline phone, and many more need a stronger signal for their home office.
Absolutely. Most businesses invest a great deal of money in mobile service plans for the benefit of owners, employees and customers. In a business situation, more than anywhere, a mobile repeater solution is a necessity, not a luxury.
The most apparent benefit is improved mobile signal strength. Signal strength is best in the area where the mobile repeater is mounted. For example, when a mobile repeater is installed, an area with an unreliable signal of just 1 or 2 bars can be turned into one with a full 4 or 5 bars of reception. In some cases, people who have no signal are able to create a cellular ‘hotspot’. This increase in cellular reception will result in clearer phone call quality and fewer dropped calls.
Mobile repeaters also improve the signal for broadband data services such as EVDO, HSDPA etc, which will increase the speed at which they work.
Most mobile carriers broadcast their networks on either of the 900 MHz or 1800 MHz frequency bands, or both. High-speed data networks or 3G service is broadcast on the 2100 MHz band. Your mobile repeater should match the same frequency as your mobile carrier in order to ensure compatibility. To determine which type of mobile repeater you need, you can contact us, we will recommend the best model to suit your needs. European customers can use the Quick Start Guide tool easily determine.
Absolutely. There is no technical expertise required to install your mobile repeater kit. Each kit contains everything needed to improve the mobile coverage in your home/office and includes instructions that will guide you through the simple steps necessary to install your mobile repeater.
DHL Express is the priority to use, NO NEED WAITING 15-30 DAYS FASTER than you thought.
Sample orders send out within 24 hours on working day after orders placed, bulk order (200+ kits) 1~2 days. Shipping information and photo taken will send by then. You will get parcel 2~5 working days after shipment status updating online.
Postage is MUCH CHEAPER, price already include DHL postage (Delivery Address not in Remote Area lists).
Delivery Address in DHL latest Remote Area lists: couriers will charge extra delivery fee £26.85, can check remote area with your post/zip code on site: http://raslist.dhl.com/jsp/first.jsp or can contact local DHL double check it before purchased. To save it can note us new address not in when pay, we will ship parcel to the new address. If cannot provide, parcel will send on working day within 24 hours after this payment checked.
We experienced on DROP SHIP: Ship the cargo to your customers directly from us. Less cost and higher efficiency.
We proud to provide high quality products that are guaranteed to increase signal quality and extend mobile coverage. All returns must be received within 30 days of the delivered signed date.
In order to return your product you must first contact our Customer Service and request an RMA code which includes a special returns address along with that authorization. Your order will be refunded upon received and checked the product in its original packaging with no damaged. Damaged equipment returned even with an RMA will be subject to a 20% restocking fee.
- Provide wrong shipping address.
- Pre-cut lengths of cable.
- Refused sign.
- When out of sign date, package return or destroy by express.
- The original order postage cost: £28.95 GBP/Kit.
- Can not provide installed photos as request and not follow steps to adjust installation (If Wrong Installed). - Any returns received without an RMA authorization, outside of 30 days from the original delivered signed date. Mistake purchased products (intend to purchase mobile phone or others, but not our mobile repeater or accessories).
- Shipping charges of the return delivery.
- All returns are subject to a £4.95 GBP re-stocking fee.
We offers different selection of mobile coverage solutions on the market. With our large selection of solutions we guarantee we’ll have the right one for you! mobile repeater units vary depending on the frequency and power output. Different network providers use different frequencies to broadcast their signals. We carry single band mobile repeaters which work for specific networks, dual band mobile repeaters which work for multiple networks and tri-band mobile repeaters which work for multiple networks plus 3G. Our solutions also vary based on power output i.e. effective coverage area. Our products can provide coverage for small offices and houses as low as 250 sq m and also cover areas up to 2,000 sq m or over such as hospitals, hotels and commercial office buildings. Our solutions are categorized in to Home/Office Solutions or Building mobile repeaters. If you have any specific needs and would like to speak to someone from our Engineering team please contact us.
You can start by reviewing the cooperate ways on our site. We are Number 1 for customer service and pride ourselves on our product knowledge and experience. We are also happy to offer a Price Match Guarantee. We understand that there is competition in our market but we truly believe that our products are superior quality to our competitors. Please note that we were the first company worldwide to sell mobile repeater products in Agencies and Marketing ways, and there have been other companies that have come and go since then. Many of our competitors online have in fact stolen our product branding, tech, part numbers, product pictures, FAQ etc and advertise FALSE information such as 5,000 sq m just only with one kit mobile repeater as they said.
We are the manufacturer and employ a 30 team of staff including technical support and telecoms engineers that are available on hand to answer your questions. We actually manufacture our products and don’t simply buy them from a random companies, you can request visit their factory with their Director. We ensure the best quality products for our customers. Our products are of such high quality that we work directly with the network operators who send their customers to us to solve their coverage needs.
Essentially, this boils down to the issue of licensing. Ofcom states that a licence is required to operate a product broadcasting in a mobile carriers radio spectrum. The reason for this is to avoid interference in the providers networks. However, as can be seen in Sec 1.2 in the link below, taken directly from the Ofcom website, our products are exempt from such licensing requirements, as they do not cause any such network interference.
Indeed, many of our customers are referred to us directly from the network providers themselves, reflecting our trusted position within this industry for providing both high service and product quality.
The simplest way to test if your place is suitable for a mobile booster is to check the signal bars on your phone on the outside of your property.
-Find the highest point where you could put the antenna (generally the roof)
-Check how many signal bars you see on your mobile phone at that place.
-If you have 0 bars – contact us for help to make sure you get a sufficiently powerful option.
-If you have 1-2 bars signal, a booster will help to increase the signal to 5 bars.
Be aware for 1-2 bars is highly recommended that you upgrade to a more powerful antenna than that provided in the standard kit. You can do this by choosing the upgrade option (Yagi) in the product page.
-If you have 3 bars, you won't need such powerful antennas and a standard booster kit will be enough to gain 5 bars.
-Measure your property size to make sure the cable set included in a kit will be enough. We offer extra internal antennas and a cutting tool to help you have an easy set-up.
Yes! The standard antenna can accept signal from within 170 degrees. If towers are located on the opposite side of your property than your antenna, you may need to upgrade your system by adding a second antenna so you can receive signal from all locations.
We sell high-quality products which are all capable of simultaneously supporting multiple devices. The limit for each booster mainly depends on its output power or ‘dBs’. We have provided a list of devices and their support limit converted to dBs below:
Estimations can also be made using this table:
Coverage in square metres Number of supported users Up to 150 sq m Up to 50 users Up to 300 sq m Up to 100 users Up to 600 sq m Up to 150 users Up to 1500 sq m Up to 200 users
How to select the best location is described fully in The installation guide. However, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.
