4G LTE - 2000m2 (Celcom/Maxis/DiGi/Tune Talk/U Mobile) Mobile Signal Booster
Enhanced 4G LTE Coverage
Experience uninterrupted 4G LTE signal, finely tuned to operate on the 2600MHz frequency band utilized by major Malaysian carriers such as U Mobile, Celcom, Maxis, DiGi, and Tune Talk. Say goodbye to dropped calls and enjoy seamless, high-quality connections right where you need them.
Expansive Signal Range
This powerful booster amplifies your mobile signal to cover an impressive area of up to 2,000 m². Perfect for large residences, expansive offices, and bustling hotels, it ensures everyone stays connected across the entire space, creating an optimal environment for work or leisure.
Reliable Voice over LTE (VoLTE)
With support for 4G Calling (VoLTE), making crystal-clear voice calls is easier than ever. The booster enhances your voice quality over the 4G network, providing users with sharp and reliable call clarity, even in challenging signal areas.
All-Inclusive Installation Kit
Get everything you need in one convenient package. Our installation kit comes with an external aerial, cables, booster base unit, internal aerial, and power adapter, ensuring an easy setup process without the hassle of additional purchases or searching for compatibility.
Upgrade Options Available
Customize your signal boosting experience! Need longer cables? Opt for upgraded external cables to meet your needs. Want added protection? Choose our lightning surge protector to safeguard your equipment, ensuring long-lasting and reliable performance under any conditions.
User-Friendly Setup
Designed for hassle-free installation, this booster is straightforward to set up. Enjoy a reliable mobile signal without the technical difficulties. Plus, refer to our easy-to-follow guides for enhanced clarity on installation and performance optimization.
It boost 4G LTE signal on 2600MHz frequency, the frequency used in Malaysia used by mobile networks to deliver their 4G mobile services. It work on 2600Mhz (Band 7) frequency for improving U Mobile, Celcom, Maxis, DiGi and Tune Talk mobile carrier networks 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
Note: This booster improve operators' 4G LTE signal only on Band 7 - 2600MHz frequency, you can purchase it directly if you sure your phone worked on this frequency. If unsure, firstly double check frequency 2600MHz in your area is used for 4G network.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

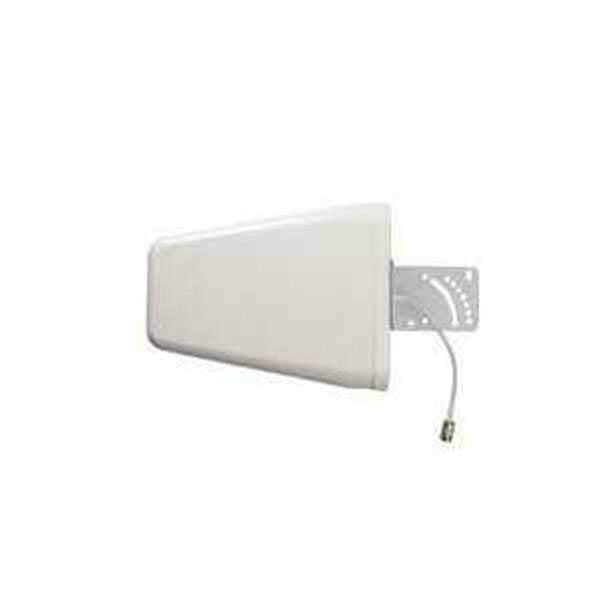

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE] (Band 7) |
| Country | Malaysia |
| Boost All On | U Mobile (4G) Celcom (4G) Maxis (4G) DiGi (4G) Tune Talk (4G) |
| Users Supporting | 200 Simultaneously |
| Band | Single Band 7 |
| Frequency | 2600MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 2500~2570 MHz |
| Down-link | 2620~2690 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

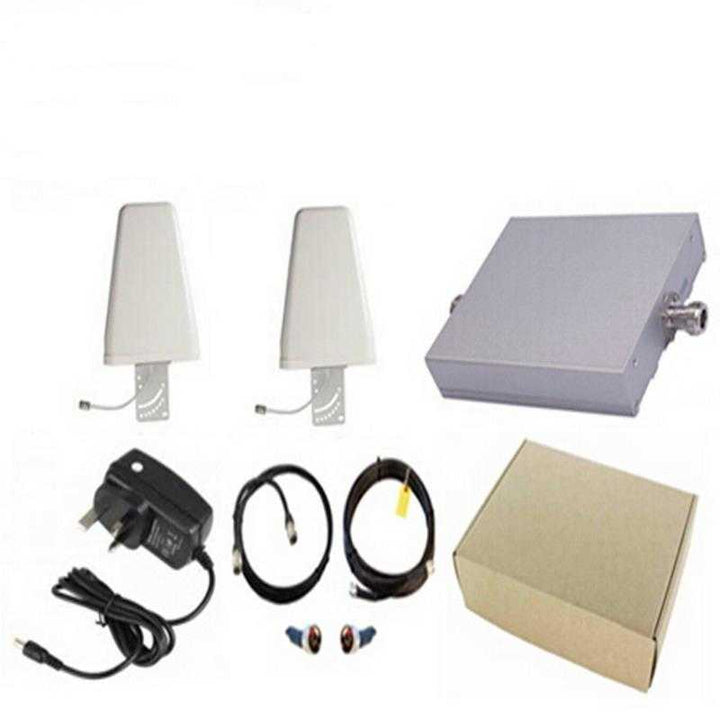

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE mobile signal booster? - A 4G LTE mobile signal booster is a device that helps improve the quality of your mobile signal indoors. It works by capturing the existing weak signal from outside and amplifying it, allowing your devices like mobile phones and tablets to have better reception for calls and Internet usage.
- How does the booster work? - The booster captures weak mobile signals from the outside using an external antenna and then amplifies that signal inside your home or office through another antenna. It is designed specifically to enhance 4G LTE signals on the 2600MHz frequency, which is commonly used in Malaysia by networks like Celcom and Maxis.
- Who can benefit from using this booster? - Anyone living or working in areas with weak mobile signals can benefit from using the 4G LTE mobile signal booster. This includes people in large houses, offices, hotels, and warehouses where the signal struggles to reach.
- How large of an area can the booster cover? - The booster can effectively cover an indoor area of up to 2,000 square meters, making it suitable for large spaces where multiple users need access to good signal quality.
- Is installation easy? - Yes, the booster kit comes with all the necessary equipment for installation, including antennas and cables. Most people find it straightforward to install with basic tools and a little time.
- What if I don't have any signal outside? - It is important to note that a signal booster can only amplify existing signals. If there is no signal coming from the outside at all, the booster won't work. Make sure to check if there is a signal outside before purchasing.
- How can I check if my phone uses the correct frequency? - You can check the frequency your phone uses by dialing *3001#12345# and looking for the 'Freq Band Indicator' in the 'Serving Cell Info' section. Alternatively, you can use apps like CellMapper or Network Signal Info Pro.
- What is a Lightning Surge Protector and do I need it? - A Lightning Surge Protector is a device that protects your booster from damage caused by lightning strikes. If you live in an area where storms are common, it is a wise choice to add this to your installation for added safety.
- What should I do if I experience weak signals after installation? - If you notice that the signal isn’t as strong as expected after installation, check that all connections are secure. Also, ensure the external antenna is facing the direction where the signal is strongest. You may need to adjust its position.
- Can multiple devices use the signal booster at the same time? - Yes, this signal booster can support up to 200 devices simultaneously. So whether you're at home or in a business setting, multiple users can enjoy a better mobile signal at the same time.
