4G LTE - 500m2 (Celcom/Maxis/DiGi/Tune Talk/U Mobile) Mobile Signal Booster
Reliable 4G Coverage
Ensure consistent data connectivity with this mobile signal booster designed specifically for 4G LTE on the 2600MHz Band 7 frequency. Ideal for both residential and commercial spaces, it amplifies weak signals, providing a reliable network experience whenever you need it, whether for work or leisure.
Enhanced Voice Quality with VoLTE
Experience crystal-clear voice calls thanks to 4G Calling (VoLTE) capability. If your mobile carrier supports this service, the booster maximizes your signal quality, making your conversations smooth and distortion-free, even in areas with previously poor reception.
Wide Coverage Area
Cover a substantial area of up to 500 m² with the powerful mobile signal booster. Perfect for medium-sized homes, offices, or warehouses, it ensures that every corner of your space enjoys enhanced signal strength and connectivity.

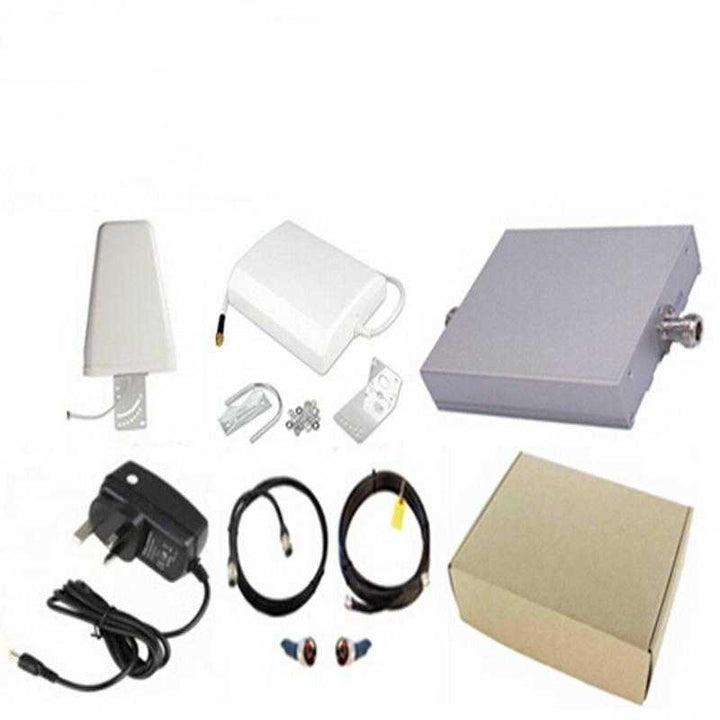

Complete Installation Kit
Get everything you need in one comprehensive kit for hassle-free installation. It includes the external aerial, booster base unit, internal aerial, cables, and a power adapter, allowing you to set up your booster without the need for extra purchases or technical expertise.
Upgrade Options for Your Needs
Customize your setup with upgrade options for longer external cables or a lightning surge protector. These enhancements ensure that your installation fits perfectly in your space and remains protected from electrical surges caused by storms, securing your investment.
Maximum User Support
Support up to 50 users simultaneously with this powerful booster. Perfect for families or small businesses, it effectively distributes the amplified signal to all connected devices, ensuring everyone enjoys seamless internet access without interruptions.
It boost 4G LTE signal on 2600MHz frequency, the frequency used in Malaysia used by mobile networks to deliver their 4G mobile services. It work on 2600Mhz (Band 7) frequency for improving U Mobile, Celcom, Maxis, DiGi and Tune Talk mobile carrier networks 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area of up to 500 m2, perfect for medium houses, offices, warehouse and more.
Note: This booster improve operators' 4G LTE signal only on Band 7 - 2600MHz frequency, you can purchase it directly if you sure your phone worked on this frequency. If unsure, firstly double check frequency 2600MHz in your area is used for 4G network.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 500 sq.m.

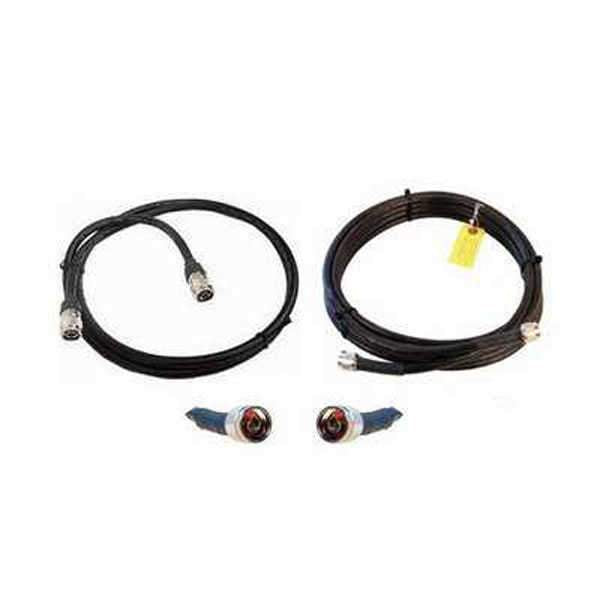

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

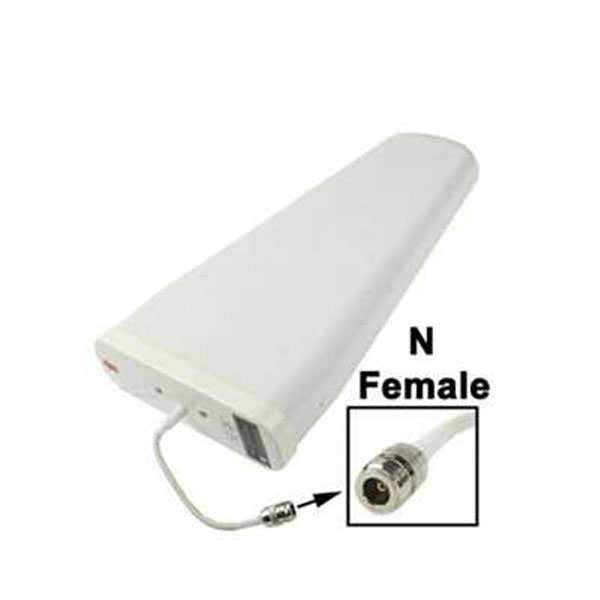

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE] (Band 7) |
| Country | Malaysia |
| Boost All On | U Mobile (4G) Celcom (4G) Maxis (4G) DiGi (4G) Tune Talk (4G) |
| Users Supporting | 50 Simultaneously |
| Band | Single Band 7 |
| Frequency | 2600MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 2500~2570 MHz |
| Down-link | 2620~2690 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |
| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |

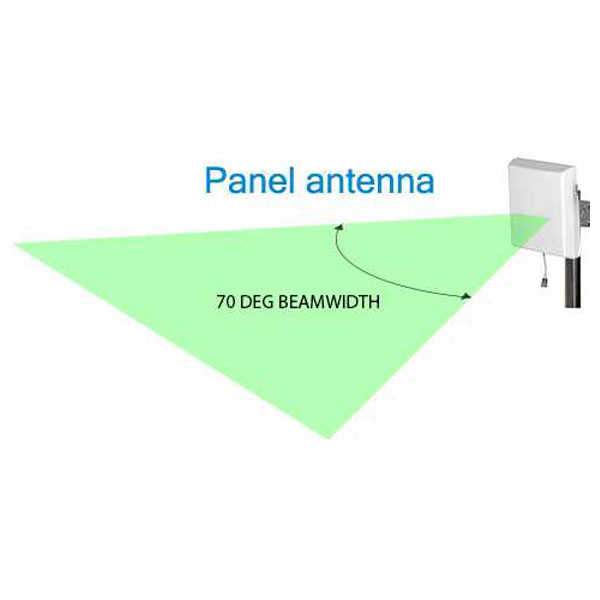

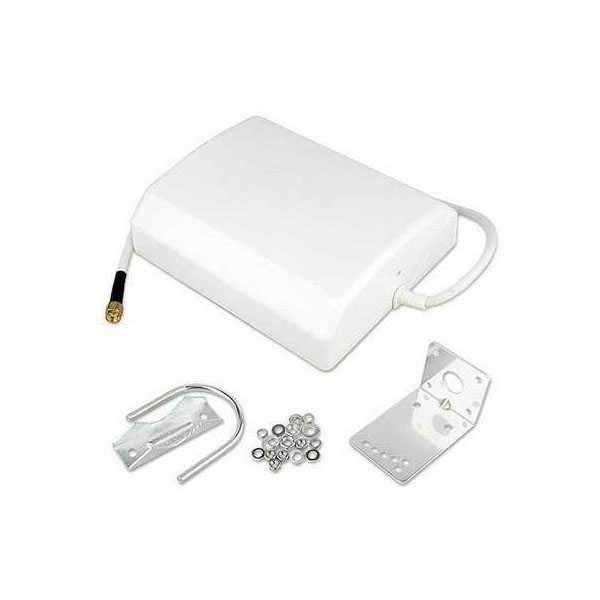

Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

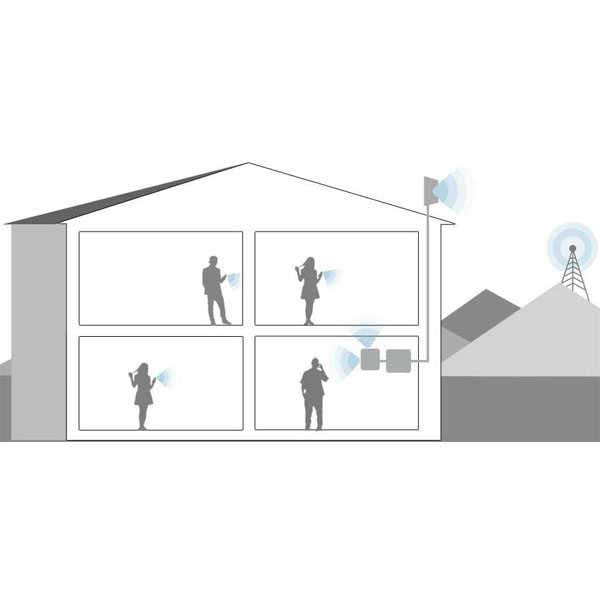

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.

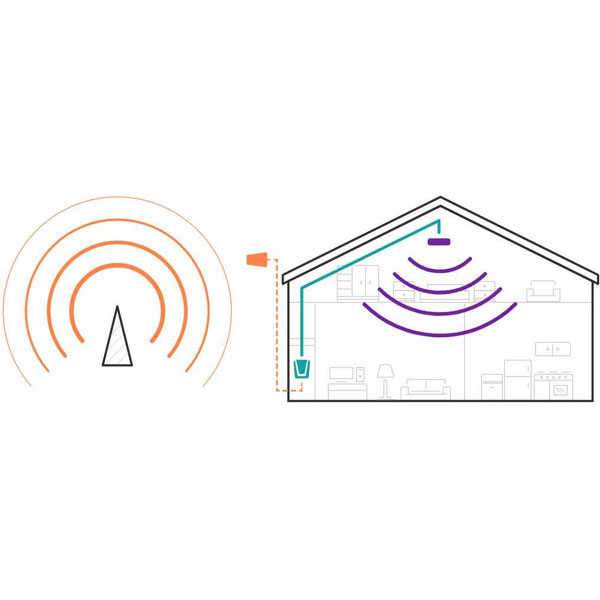

Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE mobile signal booster? - A 4G LTE mobile signal booster is a device that improves the mobile signal strength in your home or office. It works by capturing the weak signal from outside and amplifying it, helping you to get better reception for calls and mobile data, especially if you are in an area with poor network coverage.
- How does the 4G LTE booster work? - The booster connects to a mobile network frequency used by your provider, like Celcom or Maxis, and boosts the signal indoors. It requires a weak outdoor signal to work effectively. If there is no signal outside, the booster won't be able to help.
- How big of an area can the booster cover? - This particular 4G LTE booster can cover an area of up to 500 square meters. That means it is great for medium-sized homes, offices, or other indoor spaces where you need stronger mobile signals.
- Is this booster easy to install? - Yes! The kit includes everything you need, including antennas, cables, and a power adapter. It is designed for easy installation so that you can set it up without needing professional help.
- Can I use the booster with any phone? - The booster is specifically designed to work on the 2600MHz frequency, known as Band 7. If your phone supports 4G Calling and is compatible with this frequency, then it should work fine with the booster.
- What if I’m unsure about the frequency my phone uses? - You can check your phone's frequency by dialing *3001#12345#* and looking for the 'Freq Band Indicator' under 'Serving Cell Info.' You can also use apps like CellMapper to help identify the frequency.
- What happens if there’s no signal outside? - If there is no mobile signal outside your home, the booster will not be able to help. It can only amplify the signal that it can receive from outside.
- How many people can use the booster at once? - The 4G LTE booster can support up to 50 users simultaneously, allowing many people to enjoy the benefits of better mobile signal at the same time.
- What additional accessories can be included with the booster? - You can opt to upgrade your external cables if the standard length is not sufficient for your needs. Additionally, there’s a Lightning Surge Protector available that helps to safeguard your equipment from potential damage due to lightning.
- Is there any maintenance required for the booster? - Generally, the 4G LTE booster does not require much maintenance, but you should regularly check the connections and ensure the antennas are positioned well to maintain optimal performance.
