4G LTE & Calls - 2000m2 (KPN/Vodafone/Tele2/Telfort/Simyo/Ziggo) Mobile Signal Booster
Universal 4G LTE Boost
Experience enhanced 4G LTE connectivity like never before! Our powerful booster covers all major networks in the Netherlands, including KPN, Vodafone, and Tele2. Utilizing both 800MHz and 1800MHz frequencies, it's designed to give you seamless coverage and reliable service across all your devices.
Improved Voice Quality
Say goodbye to dropped calls and hello to crystal-clear conversations! With support for 4G Calling (VoLTE), our booster improves voice clarity, ensuring you never miss an important call. Stay connected and communicate effortlessly within your home or office.
Expansive Coverage Area
Transform your space with robust signal coverage of up to 2,000 square meters. Perfect for large homes, offices, and hospitality venues, our booster provides the reliable connectivity you need whether you’re working or enjoying leisure time.
Fast SMS & Data Services
Send and receive text messages swiftly and experience lightning-fast internet speeds for uploads and downloads. Our mobile booster not only enhances your voice calls but also optimizes your data services for a seamless online experience.
Easy Installation
Get set up in no time with our all-in-one kit that includes everything needed for installation! From external antennas to power adapters, our straightforward instructions make it easy for anyone to boost their signal without hassle.
Durable & Reliable Design
Built to last, our system comes equipped with options like a lightning surge protector and high-gain aerials, ensuring consistent performance even in challenging weather. Safeguard your investment while boosting your connectivity efficiently.
It boost All 4G/LTE and All Calls signal on 800MHz, 1800MHz frequencies, the frequencies used in Netherlands used by mobile networks to deliver their) mobile services: 4G and 2G (also known as GSM. It can boost all networks on KPN, T-Mobile, Vodafone, Tele2, Ziggo, Lebara, Lycamobile, Robin, Simyo, Telfort, Youfone for improving 4G/LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It also can boost all network operators for improving Voice Calls & Text signal. The booster is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
The system is designed for universal 4G coverage. Unlike other kits this device will boost ALL mobile providers' 4G LTE, the solution will provide coverage on on both 800MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 4G/LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

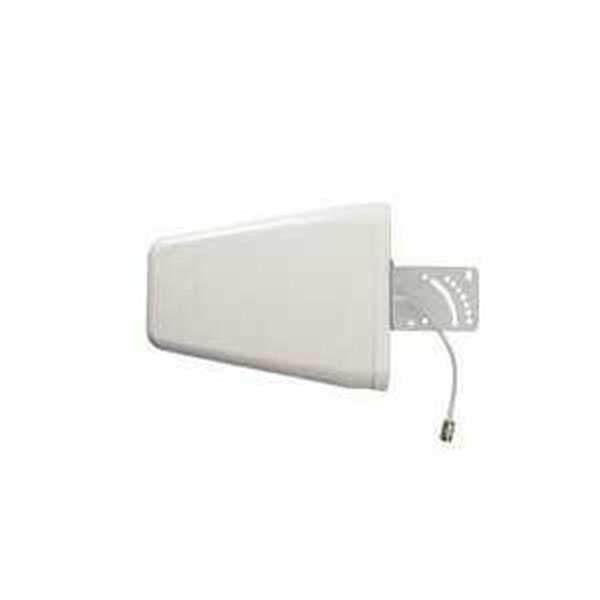

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G/LTE & Voice Calls] (Band 20, 3) |
| Country | Netherlands |
| Boost All On | KPN (2G & 4G) T-Mobile (2G & 4G) Telfort (2G & 4G) Vodafone (2G & 4G) Hollands Nieuwe (2G) AH Mobiel (2G) Aldi Talk (2G) Bliep (2G) Delight Mobile (2G) Hema Mobiel (2G) Lebara Mobile (2G & 4G) Lycamobile (2G & 4G) Robin Mobile (2G & 4G) Simyo (2G & 4G) Tele2 (2G & 4G) Vectone Mobile (2G) Youfone (2G & 4G) Ziggo (2G & 4G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 20 & 3 |
| Frequency | 800MHz & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz; 1710~1785 MHz |
| Down-link | 791~821 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

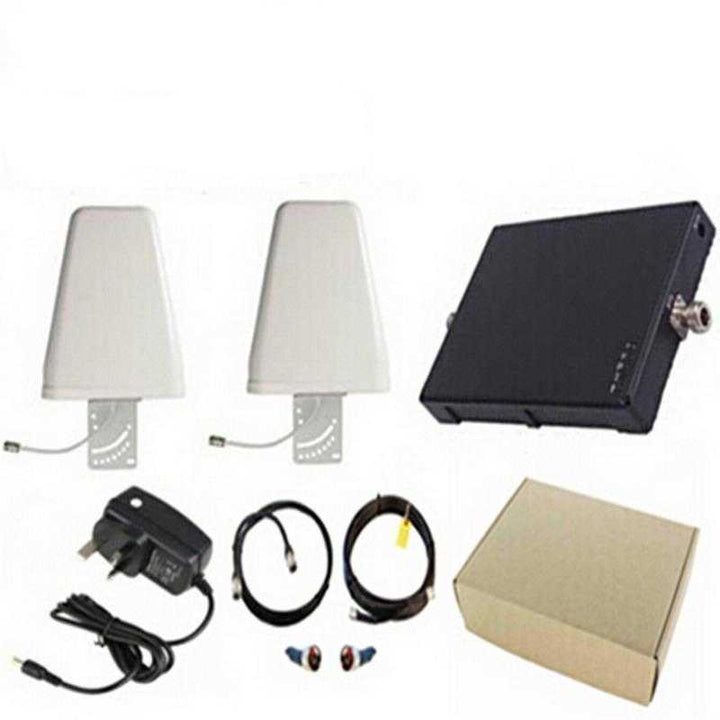

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE signal booster? - A 4G LTE signal booster is a device that helps improve mobile phone reception. It takes weak signals from the outside, amplifies them, and sends the stronger signal inside your home or office. This means you can make clearer phone calls, send texts faster, and enjoy better internet speeds.
- Which mobile networks are supported? - This signal booster works with many mobile networks in the Netherlands like KPN, Vodafone, Tele2, and more. Whether you are using 4G LTE or 2G GSM, the booster enhances the signal for all these networks, helping you stay connected.
- How does this booster improve call quality? - The booster improves call quality by using the 4G network, allowing for clearer voice calls. If your phone supports 4G calling, you can enjoy a more reliable connection without dropped calls and interruptions.
- How big of an area can the booster cover? - The 4G LTE signal booster can cover an area of up to 2,000 square meters. This is suitable for large homes, offices, and even hotels, ensuring everyone inside has a strong signal.
- Can I install it myself? - Yes! The kit comes with all the necessary items for installation, including antennas and cables. You can easily set it up yourself by following the instructions provided.
- What if I don’t have any signal outside? - It's important to have some signal outside for the booster to work. If there is no signal at all, the booster will not be able to create a signal from nothing. You will need to check the outside signal strength.
- Is there a warranty on the signal booster? - Yes, most boosters come with a warranty to ensure that you are protected against any manufacturing defects. Be sure to check the specific warranty details when you purchase your device.
- Do I need special equipment for installation? - No special equipment is needed for installation. The kit includes everything required for a complete setup like antennas, cables, and the booster itself.
- Can the booster be used in offices and warehouses? - Absolutely! The booster is designed to improve signal strength in various environments, including offices, warehouses, and even hotels, making it a versatile solution for different settings.
- How can I check what frequency my phone uses? - You can check your phone's frequency band by dialing *3001#12345#* and tapping the call button. Then, select 'Serving Cell Info' to view the 'Freq Band Indicator'. Alternatively, you can use apps like 'CellMapper'.
