4G LTE & Calls - 2000m2 (Vodafone/2degrees/Warehouse Mobile) Mobile Signal Booster
Enhanced Signal Coverage
Covering an impressive area of up to 2,000 m², this mobile booster ensures that whether you're in a large home, busy office, or expansive hotel, your signal will be consistently strong. No more connectivity black spots—enjoy seamless communications wherever you are inside!
Dual Band Performance
Supporting both 900MHz and 1800MHz frequencies, this dual band booster is essential for families and businesses with multiple network users. Effortlessly improve Vodafone, 2degrees, Warehouse Mobile, Spark, Skinny Mobile, and VOCUS signal without the hassle of juggling different solutions for different networks.
Crystal Clear Voice Quality
Experience enhanced call clarity with the ability to make voice calls over the 4G network using VoLTE technology. Enjoy reduced drop rates and superior clarity, allowing you to never miss an important call again!
Fast SMS and Data Transmission
Send and receive SMS messages quickly and enjoy faster uploads and downloads. This booster enhances your overall 4G/LTE experience, ensuring that your data communications are swift and reliable.
Easy Installation Kit
The comprehensive kit includes everything you need for quick installation: a booster base unit, external aerial, cables, and power adapter. With one complete package, set up your signal booster effortlessly—no additional purchases required!
Customize Your Setup
Need more flexibility? Upgrade your external cables or antennas for an even stronger signal boost tailored to your specific needs. Choose higher gain options for challenging environments to achieve optimal performance.
It boost 4G LTE and Calls signal on 900MHz, 1800MHz frequencies, the frequencies used in New Zealand used by mobile networks to deliver their mobile services: 2G (also known as GSM) and 4G. It work on both 900Mhz (Band 8) & 1800Mhz (Band 3) frequencies for improving Vodafone, 2degrees and Warehouse Mobile carrier Voice Calls, Text and 4G LTE signal. It also can boost Spark and Skinny mobile for improving 4G signal, and boost VOCUS for improving Voice Calls and Text signal. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use voice calls and text. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
This system is compatible with all GSM mobile phone networks, will provide coverage on both 900MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
No Miss Important Calls
Wow 2G/4G Calls
Eliminates Dropped Calls
SMS Text Messages Quickly
Consistent Connection
Reliable 4G/LTE Data
Reception Up to 2,000 sq.m.
4G/LTE Internet
Faster Uploads & Downloads
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G/LTE & Calls] (Band 8, 3) |
| Country | New Zealand |
| Boost All On | Vodafone (2G & 4G) 2degrees (2G & 4G) Warehouse Mobile (2G & 4G) Spark (4G) Skinny mobile (4G) VOCUS (2G) |
| Users Supporting | 200 Simultaneously |
| Band | Dual Band 8 & 3 |
| Frequency | 900 & 1800MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 890~915 MHz; 1710~1785 MHz |
| Down-link | 935~960 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

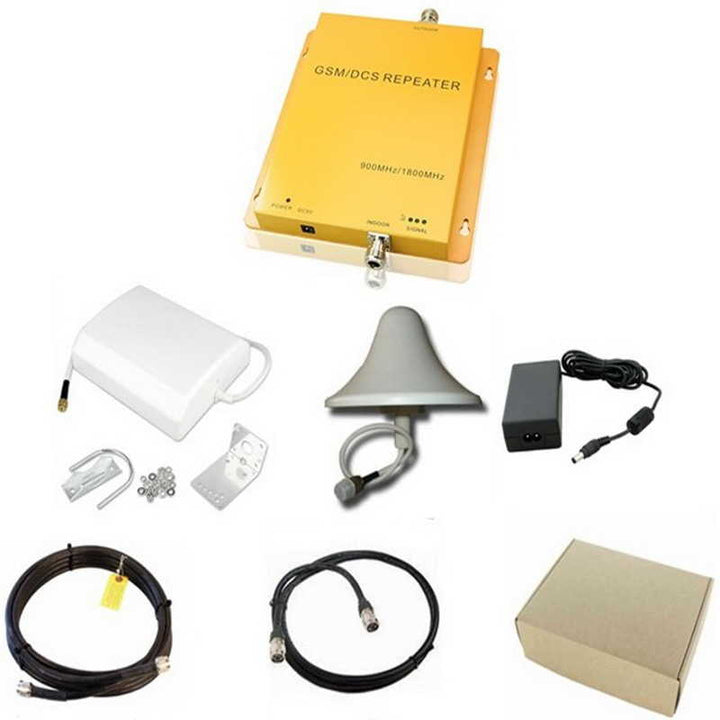

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What does a mobile signal booster do? - A mobile signal booster helps improve your phone's reception by amplifying the existing signal from your mobile provider. It makes calls clearer and speeds up data like browsing the internet and sending texts, so you can enjoy a better connection wherever you are.
- Can I use the booster with any mobile network? - Yes! This signal booster works with multiple networks in New Zealand, including Vodafone, 2degrees, Warehouse Mobile, Spark, Skinny Mobile, and VOCUS. It can improve your voice calls, text messages, and 4G data for all these carriers.
- How much area can the booster cover? - The booster can cover an area up to 2,000 square meters, making it perfect for larger homes, offices, hotels, and even warehouses. Just think of it as a way to create a cozy bubble of strong signal for everyone inside!
- How do I check my phone's frequency band? - To find out which frequency band your phone uses, you can dial *3001#12345#* and then click 'Serving Cell Info.' This will show you the frequency band number. You can also use apps like CellMapper or Network Signal Info Pro.
- What if I have a 4G-ready phone but no 4G signal? - If your phone is 4G-ready and you don’t have a 4G signal in your area, don’t worry! You can still make voice calls and send texts. If 4G Calling is available in your area, the booster will help you enjoy clearer calls using 4G.
- What comes in the booster kit? - The mobile signal booster kit includes everything you need for installation: an external aerial, cables, a booster base unit, an internal aerial, and a power adapter. It’s designed to be simple to set up, so you can boost your signal quickly!
- Can I upgrade the booster components? - Yes! You can upgrade your external cables or antenna for better performance, especially if your phone shows a weak signal indoors. There’s also an option to add a lightning surge protector to keep your equipment safe from surges during storms.
- Do I need to have an existing signal for the booster to work? - Yes, the signal booster can only amplify an existing signal; it cannot create one. If there is no signal outside your location, the booster will not be able to help you.
- How difficult is it to install the signal booster? - Installing the signal booster is designed to be straightforward. The kit comes with all necessary items and instructions, making it easy even for those who are not tech-savvy to set up and start using their booster effectively.
- Will the booster support multiple users? - Absolutely! The mobile signal booster can support up to 200 users at the same time, so it's great for homes with many devices or small businesses with multiple employees needing better connectivity.
