Description

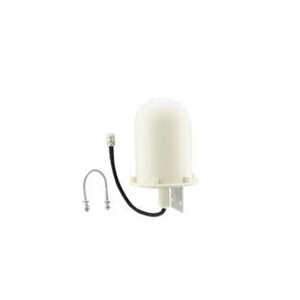

The Outdoor Omni aerial is ideal for applications with tri band mobile boosters or for use where coverage on multiple networks is required.
Since this aerial is omn-directional, it does not need to be oriented towards a particular base station. The aerial will pick up signal from all directions and should be mounted as high as possible for best results. This aerial is particularily popular for marine applications in boats and yachts as well as mobile vehicle applicaitons in caravans and trucks.
Specification
Frequency Range | 800 - 2600 MHz |
Polarization | Vertical |
Gain | 7dBi |
VSWR | <= 2.0 |
Max Power | 100W |
Impedance | 50 Ohm |
Lightening Protection | Direct Ground° |
Connector Type | N-Female |
Radome Material | PVC |
Radome Color | White |
Radiating Element | Copper |
Dimensions | 200 x 120 mm |
