3G & 4G LTE - 2000m2 (Smart) Mobile Signal Booster
Broad Frequency Coverage
The 3G & 4G LTE - 2000m2 Mobile Signal Booster operates on both 850MHz and 2100MHz frequencies. This dual-band functionality ensures enhanced connectivity for Smart mobile users in the Philippines, delivering reliable 3G and 4G LTE signals simultaneously and minimizing service disruptions.
Expansive Indoor Coverage
Elevate your connectivity experience with a substantial coverage area of up to 2,000 sq.m. This mobile signal booster is ideal for large spaces like offices, hotels, and warehouses, allowing multiple users to benefit from strong, clear signals throughout the entire area.
Easy Installation Kit
Every purchase includes a comprehensive installation kit that simplifies the setup process. With all necessary components provided, such as external and internal antennas, cables, and a power adapter, you can effortlessly enhance your mobile signal without needing professional help.
Enhanced Voice and Data Quality
Enjoy uninterrupted voice calls and faster data rates with the capability of supporting 4G Calling (VoLTE). Even in areas where 4G is unavailable, users can seamlessly switch to 3G for reliable connectivity, ensuring you stay connected at all times.
Robust User Support
Designed to support up to 10 simultaneous users, this booster is perfect for households or offices with multiple mobile network users. Each individual can experience improved signal strength, making it an essential addition for a busy environment.
Upgrade Options Available
Customization is key! Enhance your booster setup with upgrade options for external cables and a lightning surge protector. These additions ensure that you have the best possible performance and protection against potential disruptions from the elements.
It boost 3G and 4G LTE signal on 850MHz, 2100MHz frequency, the frequencies used in Philippines used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G LTE. It work on both 850Mhz (Band 5) & 2100Mhz (Band 1) frequencies for improving Philippines Smart mobile carrier 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use 3G. The booster is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
The system is designed for universal 3G and 4G coverage. Unlike other kits this In-One-Solution device will boost mobile providers' 3G and 4G, the solution will provide coverage on on both 850MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks! This booster increases signal strength before re-broadcasting a clear and powerful signal indoors.
Reliable 3G/4G LTE Data
Faster Uploads & Downloads
Reception Up to 2,000 sq.m.

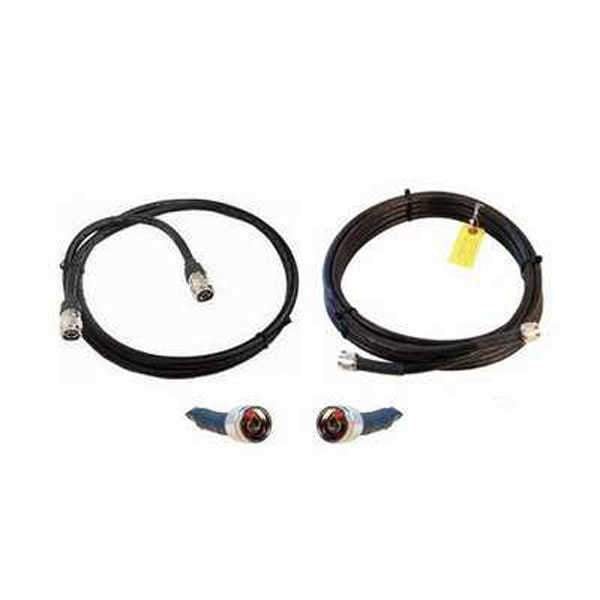

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial

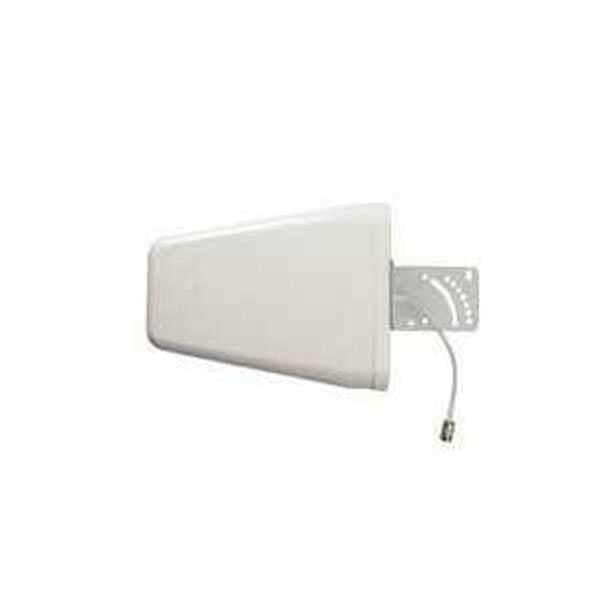

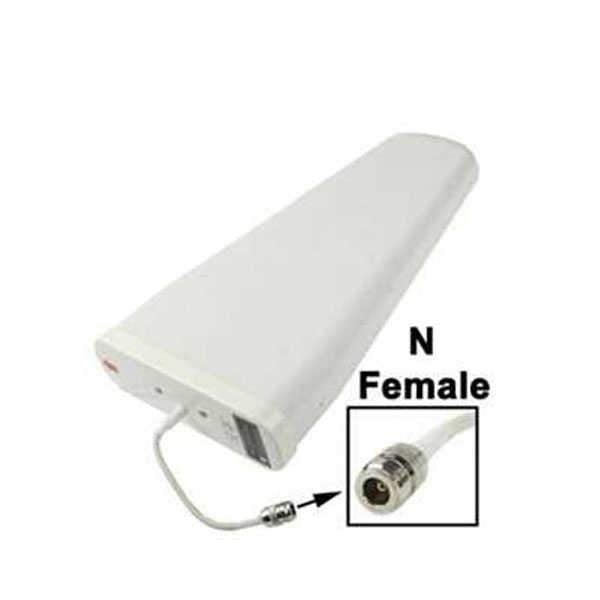

Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [3G & 4G LTE] (Band 5, 1) |
| Country | Philippines |
| Boost All On | Smart (3G & 4G) |
| Users Supporting | 10 Simultaneously |
| Band | Dual Band 5 & 1 |
| Frequency | 850MHz & 2100MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 824~849 MHz; 1920~1980 MHz |
| Down-link | 869~894 MHz: 2110~21700 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

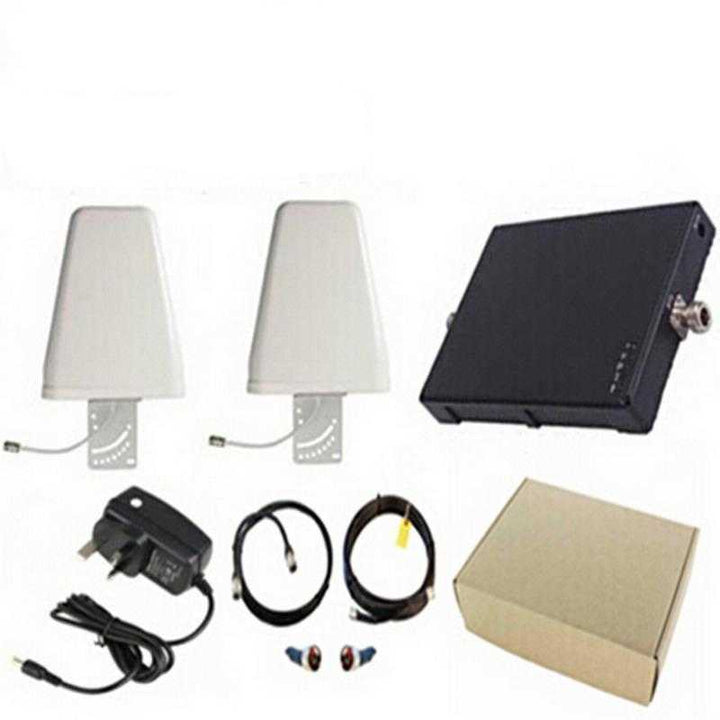

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

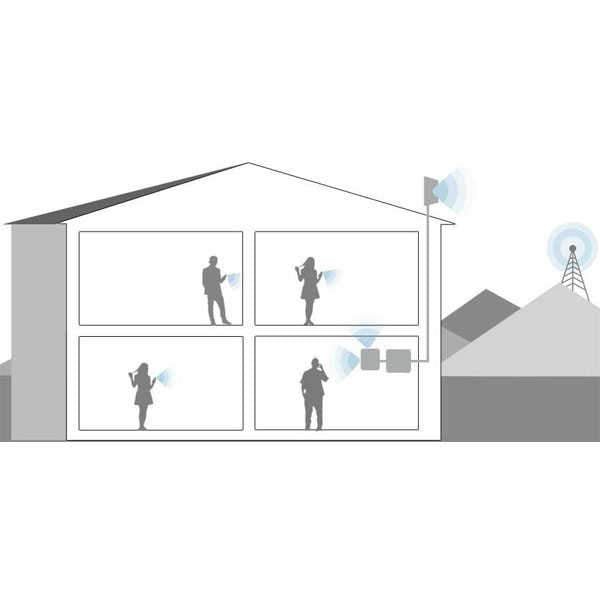

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.

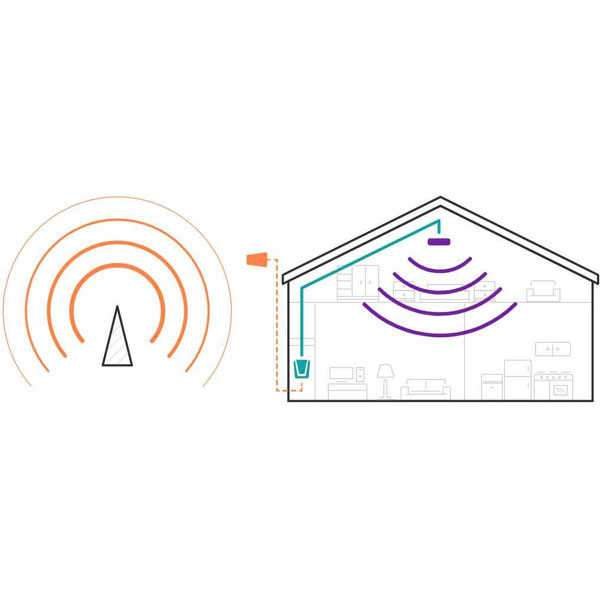

Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a mobile signal booster? - A mobile signal booster is a device that helps improve your phone's reception. It takes weak signals from the outside and makes them stronger inside your home or office. This means you can make calls, send texts, and use the internet more easily, especially in areas where the signal is weak.
- How does the 3G & 4G LTE Mobile Signal Booster work? - The 3G & 4G LTE Mobile Signal Booster works by receiving weak mobile signals from outside and amplifying them. It then distributes the stronger signal throughout your home or office, allowing for better call quality, faster internet, and improved connectivity on both 3G and 4G networks.
- Who can benefit from using this booster? - This booster is great for anyone who struggles with poor mobile signal, whether you live in a large house, work in an office, or manage a hotel or warehouse. If you have multiple people using different mobile networks, this product is especially helpful!
- How large of an area can the booster cover? - The booster can improve signal coverage up to 2,000 square meters. This makes it suitable for large homes, offices, or venues where many people need a strong mobile signal.
- Do I need special equipment to install the booster? - No, the kit comes with everything you need for easy installation, including antennas and cables. Simply follow the instructions provided, and you can set it up without needing special tools or knowledge.
- Can the booster create a signal if there is none outside? - No, a signal booster can only make existing signals stronger; it cannot create a signal from nothing. If there is no signal available outside, the booster will not work.
- What types of phones can use this booster? - The booster supports both 3G and 4G LTE phones. If your phone can connect to 4G and you are in a 4G area, you'll enjoy clearer voice calls and faster internet.
- Can the mobile signal booster work for multiple users? - Yes, this booster can support up to 10 users simultaneously. This is perfect for families or small businesses where several people need to use their mobile phones at the same time.
- Is there a warranty or guarantee with the booster? - Yes, the booster typically comes with a warranty. Check with the retailer for specific warranty details to ensure your investment is protected.
- What should I do if I need more cable length for installation? - If the standard 10-meter external cable is not long enough for your needs, you can upgrade to a longer cable. Make sure to check the specifications to ensure compatibility with your setup.
