4G LTE - 300m2 (Zong/Warid) Mobile Phone Signal Booster
Enhanced 4G LTE Signal Boost
Transform your mobile experience with our powerful 4G LTE booster that operates on the critical 1800MHz frequency, ensuring strong connectivity for Zong and Warid networks. Whether in your home, a cafe, or any medium-sized venue up to 300 m², this device enhances your network reception for crystal-clear voice calls and fast data communication.
Reliable Connectivity Anywhere
Enjoy uninterrupted 4G/LTE data services with consistent coverage throughout your chosen area. Our signal booster not only amplifies weak signals but also maintains reliable connections, allowing you to stream, download, and browse without disruptions.
Wide Coverage Area
Designed for optimal performance, our booster reaches up to 300 square meters, making it ideal for homes, restaurants, and bustling venues. Say goodbye to dead zones and poor signal reception, and welcome a seamless mobile experience.
Complete Installation Kit
Get everything you need for setup in one convenient package! Our kit includes an external antenna, cables, a booster base unit, an internal antenna, and a power adapter. Enjoy hassle-free installation with a user-friendly design.
Upgrade Options for Peak Performance
Customize your installation with our upgrade options, including extended external cables and a high-gain Yagi antenna for improved performance in low-signal areas. Maximize your device’s efficiency to ensure you never miss an important call or message.
Reliable Surge Protection
Protect your investment with our lightning surge protector. Rated for 18KA, it's designed to shield your equipment from high-amperage surges caused by storms, ensuring your signal booster stays operational even in adverse weather conditions.
It boost 4G LTE signal on 1800MHz frequency, the frequency used in Pakistan used by mobile networks to deliver their mobile services: 4G. It work on 1800Mhz (Band 3) frequency for improving Zong and Warid mobile carrier networks 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is the best suitable for medium size, boost indoor signal areas up to 300 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 300 sq.m.

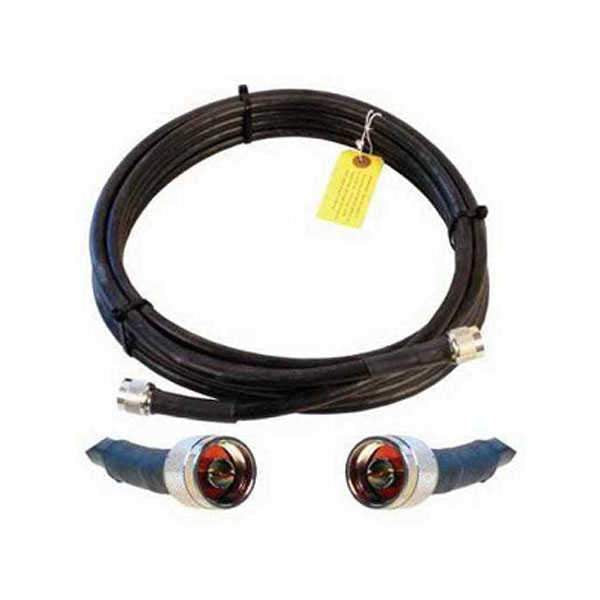

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G LTE] (Band 3) |
| Country | Pakistan |
| Boost All On | Zong (4G) Warid (4G) |
| Users Supporting | 30 Simultaneously |
| Band | Single Band 3 |
| Frequency | 1800MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 1710~1785 MHz |
| Down-link | 1805~1880 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

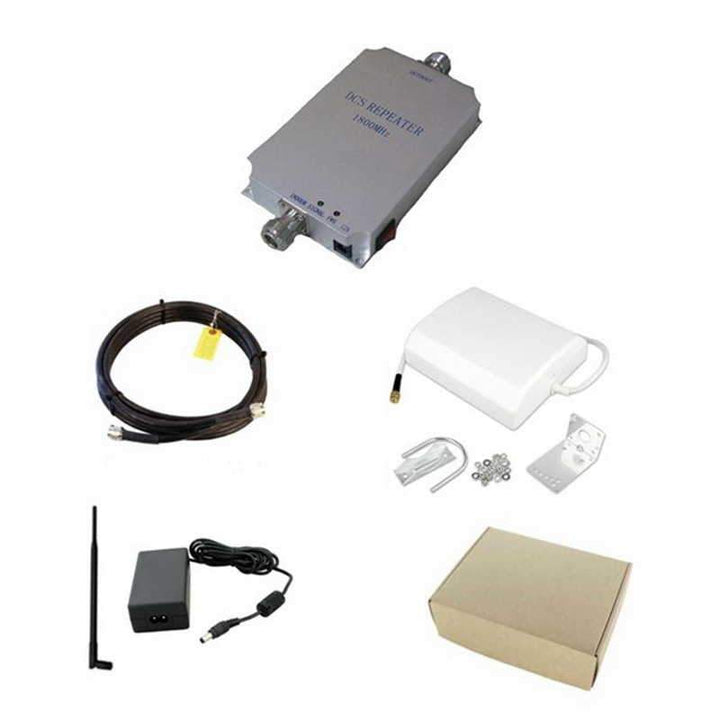

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable |
Band Confirmation: This booster can boost signals on Band 3, please check the band of your devices firstly.For iPhone: Dial *3001#12345#* → Press call button → Click 'Serving Cell Info' → Check 'Freq Band Indicator'.For Android: Download 'LTE Discovery' APP → Click ‘SIGNALS’ → Check 'EARFCN'. More refer to Quick Start Guide .External Signal Needed: The signal booster can only amplify signal but can't create signal. If there is no signal outside, it won't work, please make sure you get 1-2 bars signal outside.
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

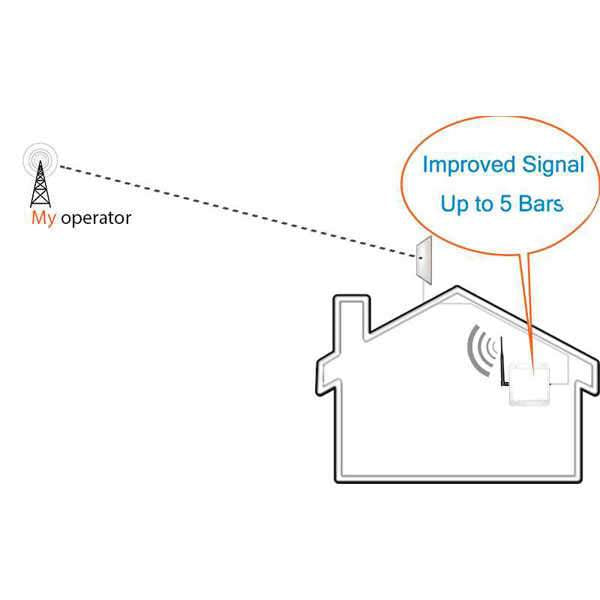

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE Mobile Phone Signal Booster? - A 4G LTE Mobile Phone Signal Booster is a device that helps improve your mobile phone signal. It works specifically on the 1800MHz frequency, which is used for 4G services in Pakistan by networks like Zong and Warid. If your phone struggles to get a strong signal, this booster can help it connect better, allowing you to make clearer calls and enjoy faster internet.
- How does the signal booster work? - The booster takes the existing weak signal from outside your home, boosts it, and sends it indoors. Keep in mind, though, if there is no signal outside, the booster won't be able to create one. So, it relies on some signal outside to function effectively.
- How large of an area does the booster cover? - This 4G LTE booster can improve your signal within a space of up to 300 square meters. It's great for medium-sized places like homes, cafes, restaurants, and pubs, ensuring better coverage in those areas.
- How can I check if my phone supports 4G LTE? - You can check by dialing *3001#12345#* on your iPhone and then pressing the call button. Look for 'Serving Cell Info' and check the frequency band indicator. If it shows Band 3, your phone can use this booster.
- What comes in the installation kit? - The installation kit includes everything you need to set up the signal booster: an external aerial, cables, the booster base unit, an internal aerial, and a power adapter. All items are included at one price for your convenience.
- Can I upgrade my installation equipment? - Yes, you can! If the standard 10-meter external cable is not sufficient for your needs, you have the option to upgrade to a longer cable. You can also upgrade to a higher gain antenna for better performance if your phone shows weak signal bars indoors.
- What is a lightning surge protector? - A lightning surge protector is a device designed to protect your equipment from damage caused by lightning strikes. It is easy to install and can safeguard your booster and aerial from high amperage surges, ensuring they function properly even during storms.
- How many users can connect to this booster at once? - The signal booster can support up to 30 users at the same time. This makes it perfect for homes or small businesses where multiple devices need a reliable signal.
- What should I do if the booster is not working? - If the booster isn't working, first check if there is any signal outside. If there is no signal at all, the booster won't work. Also, ensure all connections are secure and refer to the quick start guide for troubleshooting steps.
- Is it easy to install the signal booster? - Yes! The signal booster is designed for easy installation. You can follow the instructions included in the kit, and if you have any questions, customer support is available to help you through the process.
