4G LTE - 500m2 (Telenor) Mobile Phone Signal Booster
Enhanced 4G LTE Signal
Experience a significant boost in your 4G LTE signal with our mobile phone signal booster, designed specifically for Telenor networks in Pakistan. Operating at a frequency of 850MHz, it effectively enhances mobile connectivity, ensuring you enjoy faster data transfer and smoother voice calls on VoLTE.
Extensive Coverage Area
Catering to spaces up to 500m², our signal booster is perfect for medium-sized homes, offices, and warehouses. Say goodbye to dead zones and weak signals, and welcome reliable connectivity throughout your entire premises.
Comprehensive Installation Kit
Our all-in-one installation kit includes everything you need for a hassle-free setup. With an outdoor aerial, indoor antenna, cables, a power adapter, and detailed instructions, you’ll be up and running in no time without any hidden costs.
User-Friendly Upgrade Options
For locations requiring extended coverage, we offer an upgrade for longer external cables. Additionally, a lightning surge protector is available to shield your equipment from potential damage caused by lightning strikes, ensuring prolonged service life.
Multi-User Support
Support up to 50 simultaneous connections, making it ideal for homes or small businesses. Everyone can enjoy high-quality 4G LTE services at once, from streaming videos to making calls.
Signal Compatibility Assurance
Our booster is specially configured to amplify Telenor's 4G LTE signals, ensuring you don’t just receive a boost but the right kind of boost for optimal performance. Always check your phone’s frequency band compatibility for the best results.
It boost 4G LTE signal on 850MHz frequency, the frequencies used in Pakistan used by mobile networks to deliver their mobile services: 4G LTE. It work on both 850MHz (Band 5) frequencies for improving Telenor mobile carrier networks 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is a high-performance booster, boost indoor signal cover an area of up to 500 m2, perfect for medium houses, offices, warehouse and more.
Reliable 4G/LTE Data
Faster Uploads & Downloads
Reception Up to 500 sq.m.

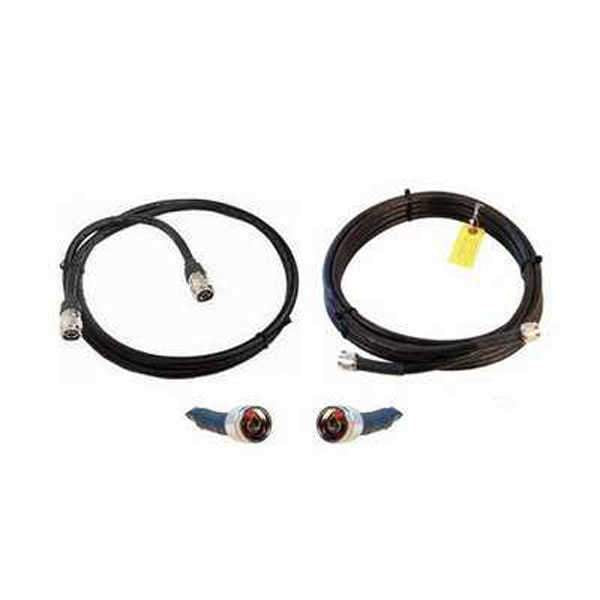

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
About External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [4G LTE] (Band 5) |
| Country | Pakistan |
| Boost All On | Telenor (4G) |
| Users Supporting | 50 Simultaneously |
| Band | Single Band 5 |
| Frequency | 850MHz |
| Gain(dB) | Uplink Gp≥60; Downlink Gp≥65 |
| Up-link | 824~849 MHz |
| Down-link | 869~894 MHz |
| Export Power(Po) | ≥20dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

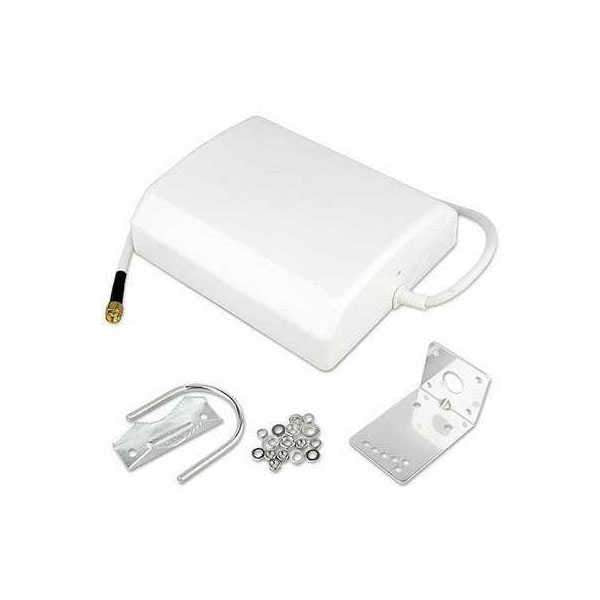

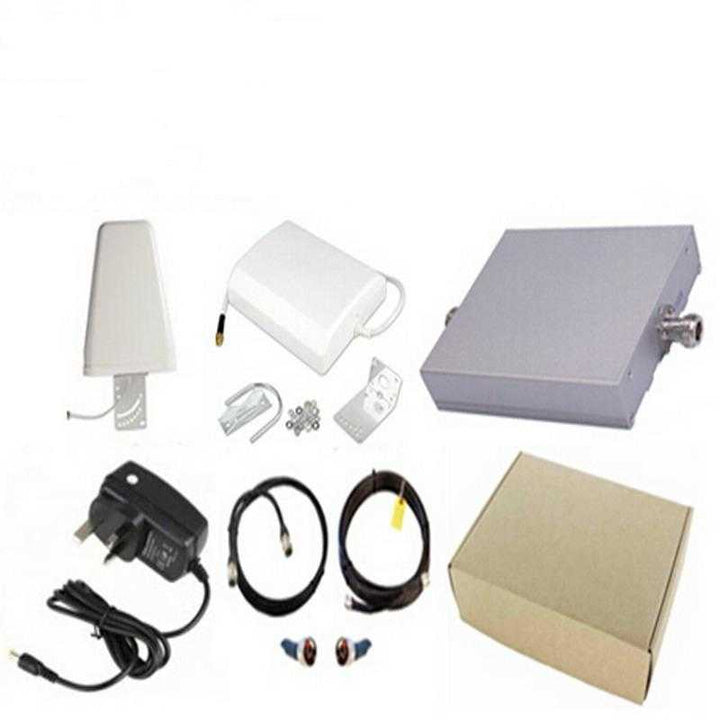

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna

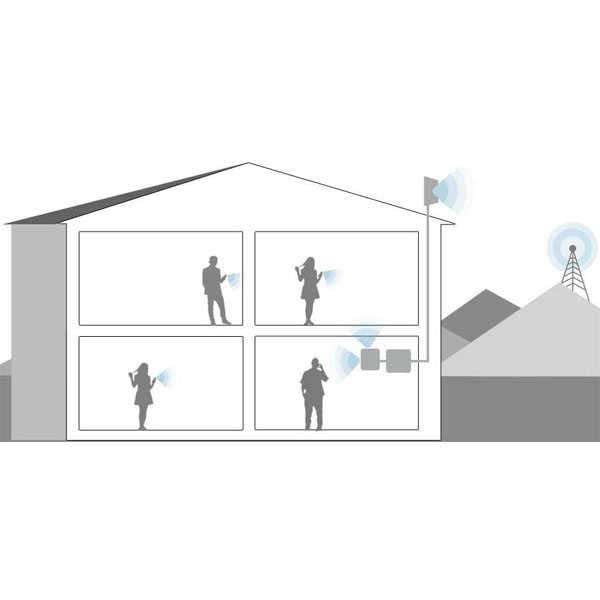

How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.

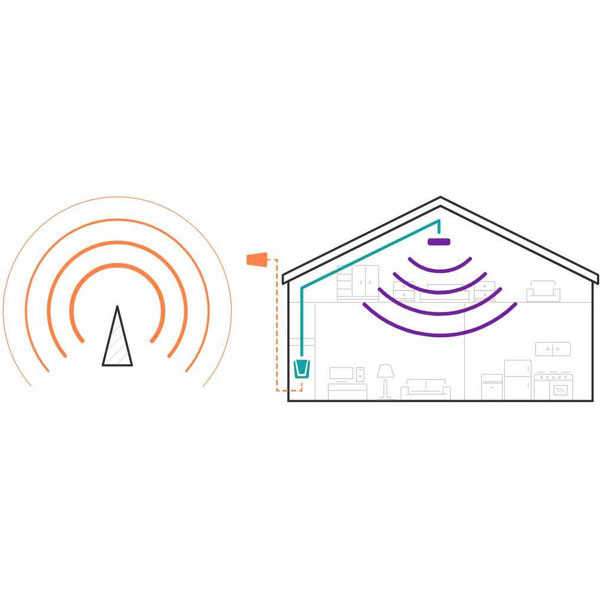

Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a mobile phone signal booster? - A mobile phone signal booster is a device that helps improve the signal strength of your mobile network. It makes weak signals stronger so you can enjoy better connections for calls and internet use inside your home or office.
- How does the 4G LTE signal booster work? - The 4G LTE signal booster works by capturing weak mobile signals from outside, amplifying them, and then sending the stronger signal inside your home or office. This helps you get faster internet speeds and clearer phone calls.
- How much area does the booster cover? - This booster can improve the signal in an area of up to 500 square meters. It's suitable for medium-sized houses, offices, or warehouses, making it a great solution for improving connectivity in larger spaces.
- Can the booster create a mobile signal? - No, the signal booster cannot create a mobile signal. It needs to have a weak signal coming from outside to work effectively. If there is no signal at all outside, the booster won’t be able to help.
- How can I check if my phone supports 4G Calling? - You can check if your phone supports 4G Calling by dialing *3001#12345#* on your iPhone and then looking for 'Freq Band Indicator' in the 'Serving Cell Info' section. Alternatively, you can use apps like CellMapper or Network Signal Info Pro.
- What does the kit include? - The kit includes everything you need for installation—an external antenna, cables, the booster unit, an indoor antenna, and a power adapter. This complete package makes it easy for you to boost your signal effectively.
- How do I upgrade the external cables? - If the standard 10-meter external cable isn't long enough for your needs, you can purchase an upgraded cable to ensure the booster reaches the best outside signal available.
- What is a lightning surge protector? - A lightning surge protector is an accessory that helps protect your signal booster from damage caused by lightning strikes. It’s easy to install and is designed to handle high electrical surges.
- What kind of maintenance does the booster need? - The signal booster generally requires minimal maintenance. It's good to periodically check connections and ensure that the antennas are clean and unobstructed for optimal performance.
- Who can use the 4G LTE signal booster? - Anyone with a weak mobile signal in their home or office can use the 4G LTE signal booster. It's especially useful for those living in rural areas or places with blocked signals due to buildings.
