4G LTE & Calls - 100m2 (MEO/NOS/Vodafone/Portugal Internet) Mobile Phone Signal Booster
Boost 4G LTE & Calls
Enhance your mobile experience with our booster designed to amplify 4G LTE and calls on 800MHz and 1800MHz frequencies. Compatible with MEO, NOS, Vodafone, and Portugal Internet networks, it ensures crystal-clear voice calls and speedy 4G data. Stay connected and eliminate interruptions in call quality, making your conversations seamless.
Simultaneous Dual Band Support
This device operates on both 800MHz (Band 20) and 1800MHz (Band 3) frequencies, granting you universal coverage across all major mobile providers. Whether you have multiple family members on different networks or require reliable service throughout your home, our Dual Band booster is the essential solution for diverse users.
Extensive Coverage Area
Designed to cover an area of up to 100m², our signal booster is ideal for small apartments and offices. No more dead zones or weak signals! Enjoy consistent 4G LTE performance, clear voice calls, and quick SMS delivery wherever you are within the boosted space.

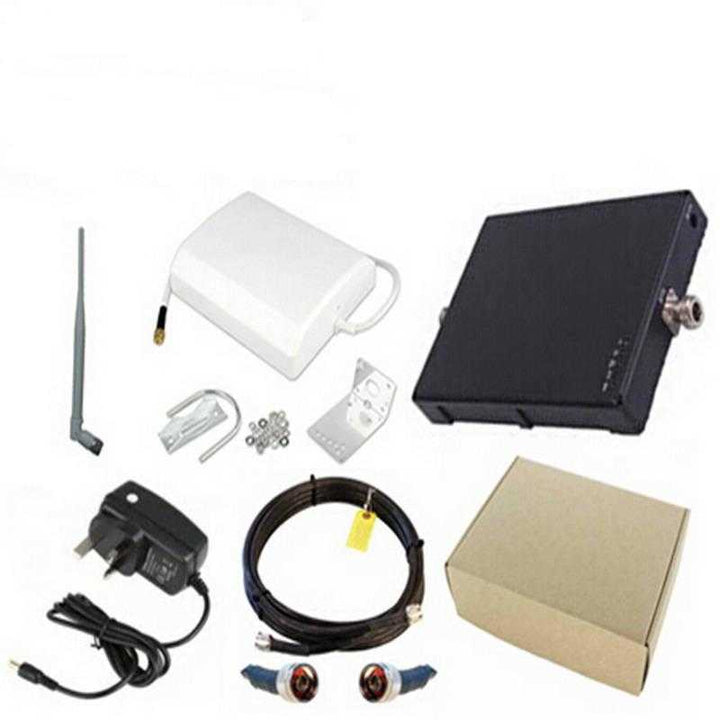

Complete Installation Kit
Everything needed for quick and easy installation is included in one affordable package. With an external antenna, cables, booster base unit, internal antenna, and a power adapter, you won't have to shop around for additional components. Get set up swiftly and enjoy reliable service immediately!
Upgrade Options Available
Tailor your setup for optimal performance with our upgrade options. Choose longer external cables for extended range, higher gain Yagi antennas for improved signal strength, or lightning surge protectors to safeguard your equipment from power surges. Customization ensures you get the best possible service!
Support for Multiple Users
Experience enhanced connectivity as our booster supports up to 10 simultaneous users. Perfect for households or offices with multiple devices, this solution minimizes dropped calls and maintains high-speed data access, ensuring everyone stays connected without compromise.
It boost 4G LTE and Calls signal on 800MHz, 1800MHz frequency, the frequencies used in Portugal used by mobile networks to deliver their mobile services: 4G and 2G (also known as GSM). It work on both 800Mhz (Band 20) & 1800Mhz (Band 3) frequencies for improving MEO, NOS, Vodafone and Portugal Internet mobile carrier networks 4G LTE, Voice Calls and Texts signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use voice calls and text. Boost indoor signal cover an area up to 100 m2, is ideal for small apartments or offices.
The system is designed for universal 4G coverage. Unlike other kits this device will boost ALL mobile providers' 4G LTE, the solution will provide coverage on on both 800MHz, 1800MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 4G/LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 100 sq.m.

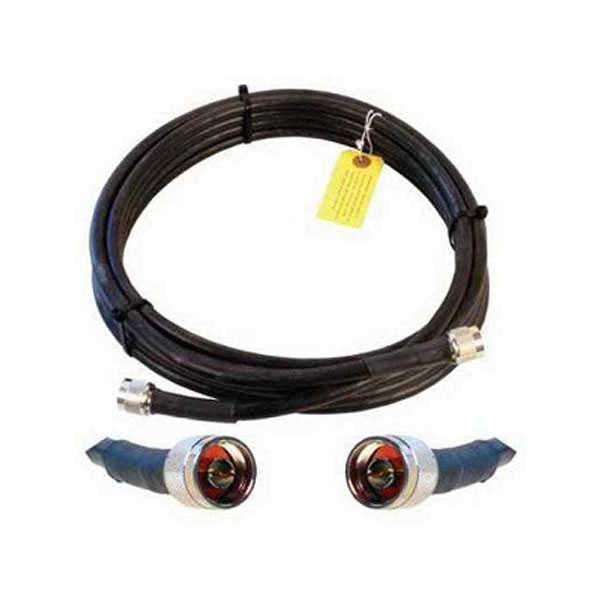

Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [4G/LTE & Voice Calls] (Band 20, 3) |
| Country | Portugal |
| Boost All On | MEO (4G & 2G) NOS (4G & 2G) Vodafone (4G & 2G) Portugal Internet (4G) |
| Users Supporting | 10 Simultaneously |
| Band | Dual Band 20 & 3 |
| Frequency | 800MHz & 1800MHz |
| Gain(dB) | Uplink Gp≥45; Downlink Gp≥50 |
| Up-link | 832~862 MHz; 1710~1785 MHz |
| Down-link | 791~821 MHz; 1805~1880 MHz |
| Export Power(Po) | ≥10dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |
| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a 4G LTE signal booster? - A 4G LTE signal booster is a device that helps strengthen your mobile phone signal indoors. It works by capturing the existing signal from outside and amplifying it, giving you better coverage for your phone calls, texts, and internet browsing.
- How does the booster work for different networks? - This signal booster is designed to work with various mobile networks in Portugal, like MEO, NOS, and Vodafone. It improves signals on two frequencies, 800MHz and 1800MHz, making sure you stay connected no matter which network you're using.
- Can I use the booster in my home? - Yes, the signal booster is perfect for home use! It can cover an area of up to 100 square meters, making it ideal for small apartments or offices. Just set it up, and you should enjoy a stronger signal throughout your space.
- What do I need to check before using this booster? - Before using the booster, check your current signal strength outside with your phone. If there is a signal outside, the booster will amplify it indoors. Use the provided band checker method to confirm your phone's frequency bands.
- Will this booster improve my call quality? - Yes! With the booster, you can enjoy clearer voice calls. If your phone supports 4G Calling, also known as VoLTE, the booster will enhance the quality of your voice calls significantly.
- Can I install the booster myself? - Absolutely! The kit comes with all the items needed for installation, including the external and internal antennas, cables, and a power adapter. It's designed to be easy to set up, so you can do it yourself.
- What if I have low signal outside? - If there is little to no signal outside, unfortunately, the booster cannot create any signal. It can only amplify existing signals. Make sure to check your outside signal strength before installing the booster.
- What upgrades are available for the booster? - You can upgrade to longer external cables or a higher gain Yagi antenna if needed. These upgrades can help improve the booster performance, especially if your outdoor signal is weak.
- How many users can connect to this booster? - The booster can support up to 10 users at the same time, making it perfect for families or small offices where several people need a strong signal.
- Is there any special equipment needed for installation? - No special equipment is needed. Everything you need for installation comes in the kit. If you follow the simple setup instructions, you will be able to install it without any trouble.
