3G & 4G LTE - 2000m2 (MEO/NOS/Vodafone/Portugal Internet) Mobile Phone Signal Booster
Enhanced Signal Strength
Experience superior connectivity with our mobile phone booster, designed to amplify **3G and 4G LTE** signals on **800MHz** and **2100MHz** frequencies. Perfect for users on MEO, NOS, Vodafone, and Portugal Internet, ensure you're always connected, whether at home or in the office.
Wide Coverage Area
Covering up to **2,000 m²**, this high-performance booster is ideal for large homes, offices, hotels, and even warehouses. Say goodbye to dead zones and poor reception—enjoy seamless connectivity no matter where you are.
Multi-Network Compatibility
Our Dual Band booster supports all 3G and 4G mobile networks simultaneously, allowing various users in a household to enjoy enhanced signal strength effortlessly. A must-have for families or businesses where users are on different mobile carriers.
Clear Voice Calls
Enjoy crystal-clear voice communication with **VoLTE** support. Eliminate dropped calls and ensure you never miss an important conversation, even in areas where your reception was previously weak.
Quick SMS Deliveries
Stay connected with the ability to send and receive SMS text messages quickly and reliably. With improved signal, your messages will go through without delays, keeping you in touch with what matters.
Complete Installation Kit
Get everything you need for easy installation in one package! Our kit includes an external aerial, cables, booster base unit, internal aerial, and power adapter, making it convenient to set up and start boosting your signal immediately.
It boost 3G and 4G LTE signal on 800MHz, 2100MHz frequency, the frequencies used in Portugal by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It can boost ALL mobile network operators for improving 3G signal. And boost MEO, NOS, Vodafone and Portugal Internet mobile carrier networks improving 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use 3G. The booster is a high-performance booster, boost indoor signal cover an area of up to 2,000 m2, great for extra-large houses, offices, and hotels. Also works for warehouse production areas, corporative areas and more.
This system is compatible with all 4G and 3G mobile phone networks, will provide coverage on both 800MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G/4G LTE Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 2,000 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.

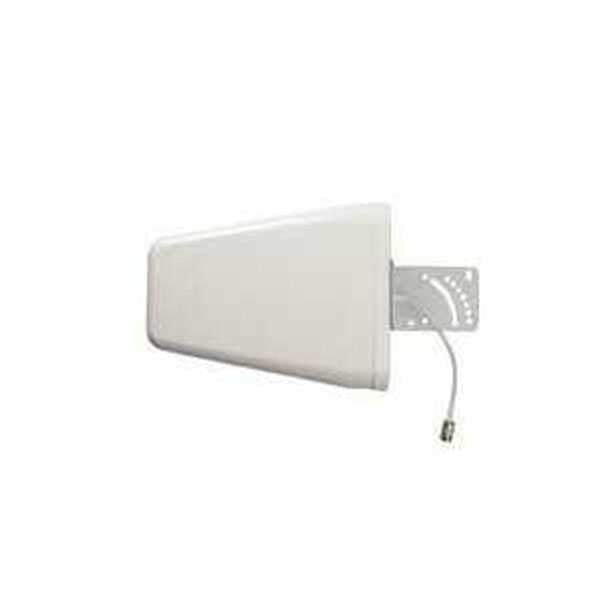

About External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Specification
| Application & Bands | [3G & 4G/LTE Data] (Band 20, 1) |
| Country | Portugal |
| Boost All On | MEO (3G & 4G) NOS (3G & 4G) Vodafone (3G & 4G) Portugal Internet (3G & 4G) Lycamobile (3G) |
| Users Supporting | 10 Simultaneously |
| Band | Dual Band 20 & 1 |
| Frequency | 800MHz & 2100MHz |
| Gain(dB) | Uplink Gp≥70; Downlink Gp≥75 |
| Up-link | 832~862 MHz; 1930~1990 MHz |
| Down-link | 791~821 MHz; 2110~2180 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

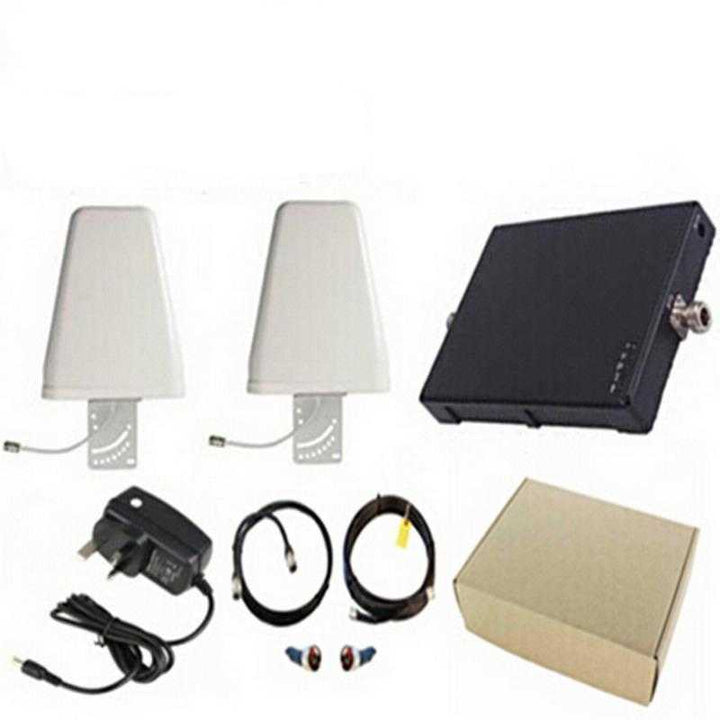

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a mobile signal booster? - A mobile signal booster is a device that helps improve your mobile phone's reception. It takes weak signals from outside and makes them stronger, allowing you to have better calls and faster internet. It can be very helpful if you live in an area where phone signals are weak.
- How does the 3G and 4G LTE booster work? - This booster works by capturing weak mobile signals from outside your home or office and amplifying them. It boosts both 3G and 4G LTE signals, making your phone calls clearer and your internet faster within a 2,000 square meter area.
- Can the booster help with dropped calls? - Yes, using the booster can help eliminate dropped calls. By improving the signal quality, it makes your phone calls more reliable, so you don’t have to worry about important calls getting cut off.
- Who can use this booster? - Anyone with a mobile phone can use this booster, especially if you have many family members or coworkers using different mobile networks like MEO, NOS, or Vodafone. It's designed to work for up to 10 users at the same time.
- Is installation difficult? - Not at all! The kit includes everything you need for installation, and it's designed to be easy to set up. You'll find an external antenna, cables, a booster unit, and an internal antenna, all included in one package.
- What if I have problems with the installation? - If you run into any issues during installation, you can refer to the Quick Start Guide provided in the kit. It has helpful directions and tips. You can also contact customer service for assistance!
- What if there’s no signal outside? - The booster amplifies signals that are already there, meaning if there’s no signal outside at all, the booster won’t be able to help. It needs a weak signal to start working.
- Do I need a specific type of phone for the booster to work? - You don’t need a specific type of phone, but having a 4G-ready phone will allow you to enjoy better call quality through 4G Calling (VoLTE). If you’re not in a 4G area, you can still use 3G.
- Will the booster work for different operators? - Yes! The booster works with multiple mobile networks like MEO, NOS, Vodafone, and Portugal Internet. So, it's great if you have family or friends using different networks.
- What is the coverage area of the booster? - The booster provides signal coverage for an area of up to 2,000 square meters. This makes it perfect for large homes, offices, or even warehouses!
