Calls & 3G & 4G LTE - 500m2 (MEO/NOS/Vodafone/Portugal Internet) Mobile Phone Signal Booster
Comprehensive Signal Boosting
Experience unmatched connectivity as our Tri Band booster enhances Calls, 3G, and 4G LTE signals across 900MHz, 1800MHz, and 2100MHz frequencies. Designed for MEO, NOS, and Vodafone networks in Portugal, this device guarantees seamless communication and data transfer across all supported mobile standards.
Wider Coverage Area
Transform your indoor space with robust signal amplification covering up to 500 square meters. Ideal for homes, offices, and warehouses, this powerful booster ensures that every corner is equipped with reliable mobile connectivity, keeping everyone connected without interruption.
Clear Voice and Smooth Calls
Say goodbye to dropped calls and static with our advanced VoLTE compatibility. Experience crystal-clear voice calls and reliable communication, even in areas where 4G coverage is limited. Enjoy high-quality conversations uninterrupted by signal loss.
Multiple User Support
Our booster is designed to accommodate up to 50 users simultaneously. Whether it’s for family or a busy office environment, all users can surf the web, make calls, and send texts without compromising the quality of service, all from a single device.
Quick Installation Kit
Installation is a breeze with our complete kit, including everything you need from antennas to cables and a power adapter. Follow our easy setup instructions for a hassle-free experience to boost your signal strength and performance in no time.
Optional Upgrades Available
Customize your booster experience with optional upgrades such as high-gain antennas or lightning surge protectors. Tailor your setup to enhance performance based on your specific signal conditions and safeguard your devices from electrical surges.
It boost Calls and 3G and 4G LTE signal on 900MHz, 1800MHz and 2100MHz frequencies, the frequencies used in Malaysia used by mobile networks to deliver their mobile services: 2G (also known as GSM), 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 4G. It work on both 900Mhz (Band 8) & 1800Mhz (Band 3) & 2100Mhz (Band 1) frequencies for improving MEO, NOS, Vodafone and Portugal Internet mobile carrier networks Voice Calls, Text, 3G and 4G LTE signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. If you have a 4G ready phone, but you’re not in a 4G area, you’ll still be able to use voice calls, text and 3G. It is a high-performance booster, boost indoor signal cover an area up to 500 m2, perfect for medium houses, offices, warehouse and more.
The system unlike other kits, this device will boost ALL networks including 2G, 3G, 4G and 4G Calling, is designed for universal mobile voice calls, 3G and 4G coverage. The solution will provide coverage on all 900MHz, 1800MHz, 2100MHz networks simultaneously. It's Tri Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
No Miss Important Calls
Wow 2G/3G/4G Calls
Eliminates Dropped Calls
Battery Life
Get Longer On Your Phone
SMS Text Messages Quickly
Consistent Connection
Reliable 3G/4G Data
Seamless Switching
Back to Normal Network
Reception Up to 500 sq.m.
3G/4G Internet
Faster Uploads & Downloads
Multiple Users
50 Simultaneously
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [Voice Calls & 3G & 4G LTE] (Band 8, 3, 1) |
| Country | Portugal |
| Boost All On | MEO (4G & 3G & 2G) NOS (4G & 3G & 2G) Vodafone (4G & 3G & 2G) Lycamobile (3G & 2G) Portugal Internet (4G & 3G) |
| Users Supporting | 50 Simultaneously |
| Band | Tri Band 8 & 3 & 1 |
| Frequency | 900 & 1800 & 2100MHz |
| Gain(dB) | Uplink Gp≥55; Downlink Gp≥60 |
| Up-link | 890~915 MHz; 1710~1785 MHz; 1930~1990 MHz |
| Down-link | 935~960 MHz; 1805~1880 MHz; 2110~2180 MHz |
| Export Power(Po) | ≥23dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |

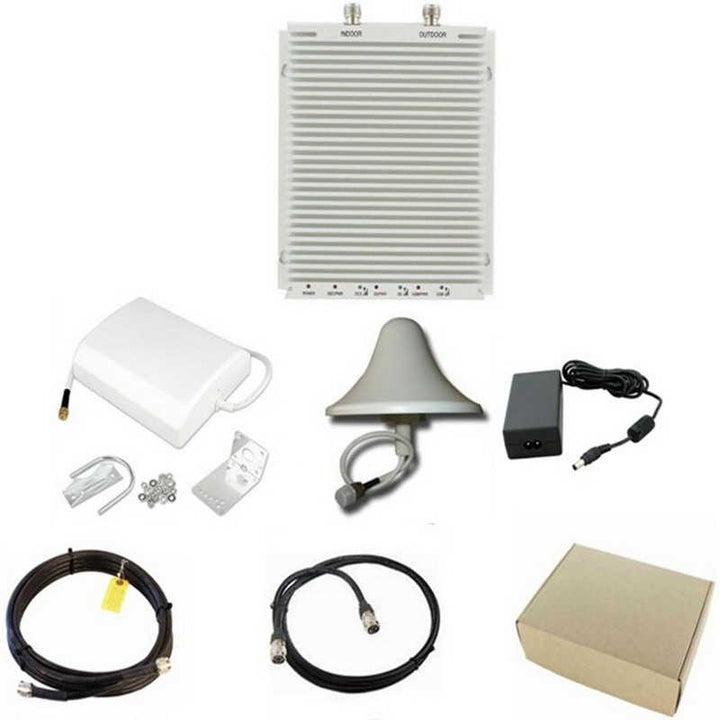

| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Expandable coverage by adding a second indoor antenna if the outside signal is strong.
2 Indoor Antennas
3 Indoor Antennas
4 Indoor Antennas
10 Indoor Antennas
Custom your solution:
2 Way Splitter | 3 Way Splitter | 4 Way Splitter | Indoor Cable | Indoor Antenna
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is a mobile signal booster? - A mobile signal booster is a device that strengthens the cellular signal inside your home or office. It captures weak signals from outside and makes them stronger, helping you make calls, send texts, and use the internet more easily.
- How does the mobile signal booster work? - The booster works by taking the weak signals from your mobile carrier outside, amplifying them, and then sending the stronger signals inside your space. This way, even if the outdoor signal is weak, you'll have better reception indoors.
- Which mobile networks are supported by this booster? - This mobile signal booster supports all major networks in Portugal, including MEO, NOS, Vodafone, and Lycamobile, on 2G, 3G, and 4G frequencies. So, it works for many different phones and services!
- How big of an area can this booster cover? - The booster can cover up to 500 square meters. This makes it great for medium-sized houses, offices, warehouses, and similar spaces where many people might be using different networks.
- Can I use this booster if I don’t have any signal outside? - No, the booster needs some signal to work. If there's no signal outside, the booster won’t be able to amplify anything. It's important to have at least some connection from your mobile network for it to function.
- What is VoLTE and why is it important? - VoLTE stands for Voice over LTE. It's a technology that allows you to make voice calls over the 4G network instead of the older 3G network. If your phone and area support it, you can enjoy clearer and faster calls.
- How many users can connect to the booster at the same time? - The signal booster can support up to 50 users simultaneously. This makes it ideal for larger households or offices where many people are using their mobile phones at the same time.
- Is it easy to install the mobile signal booster? - Yes, the kit comes with everything you need for installation, including antennas, cables, and a power adapter. It is designed for easy setup, even if you have little technical knowledge.
- What if I need longer cables for my installation? - If the standard 10-meter cables are not long enough for your setup, you have the option to upgrade to longer cables. This flexibility helps you position the booster for the best signal.
- What is a surge protector and do I need one? - A surge protector protects your signal booster and cables from damage caused by lightning or power surges. It's highly recommended to use one, especially if you live in an area prone to storms.
