3G & Calls - 250m2 (Three 3/Tele2/Telenor/Telia/Comviq /Vectone Mobile/Lycamobile) Mobile Signal Booster
It boost All 3G, All Calls & 4G LTE signal on 900MHz, 2100MHz frequencies, the frequencies used in Sweden used by mobile networks to deliver their mobile services: 3G, 3.5G (also known as HSDPA provides faster data rates than 3G) and 2G. It can boost all networks on Three 3, Comviq, Tele2, Telenor, Telia, Lycamobile and Vectone Mobile for improving 3G, Voice Calls & Text signal. It also can boost all networks on Comviq, Tele2, Telenor and Telia for improving 4G LTE-900MHz signal. If your phones support 4G Calling (also called Voice over LTE or VoLTE) and your area 4G Calling is available, with the booster you can make clearer voice calls using 4G network. It is the best suitable for medium size, boost indoor signal areas up to 250 m2, perfect for home, cafes, restaurants, pubs, clubs and more.
This system is compatible with all 3G mobile phone networks, will provide coverage on both 900MHz, 2100MHz frequency simultaneously. It's Dual Band booster and is an ESSENTIAL if many people in the same household are on different mobile phone networks!
Note: This booster improve mobile operators' 4G LTE signal only on Band 8 - 900MHz frequency, you can purchase it directly if you sure your phone worked on this frequency. If unsure, firstly contact your provider double check frequency 900MHz in your area is used for 4G network, or download and install APP "Network Signal Pro".
Band Checker: Check frequency band is 8 or 1 show on your iPhone:
- Dial *3001#12345#*, then press Call button
- Click 'Serving Cell Info'
- Check 'Freq Band Indicator'.
Or with app "CellMapper" or "Network Signal Info Pro".
Signal booster can only amplify signal, but can't create signal. If there is no signal outside, the booster will not work for you.
Eliminates Dropped Calls
Clear Voice
No Miss Important Calls
Reliable 3G Data
Send/Receive SMS
SMS Text Messages Quickly
Faster Uploads & Downloads
Signal Wider Coverage
Reception Up to 250 sq.m.

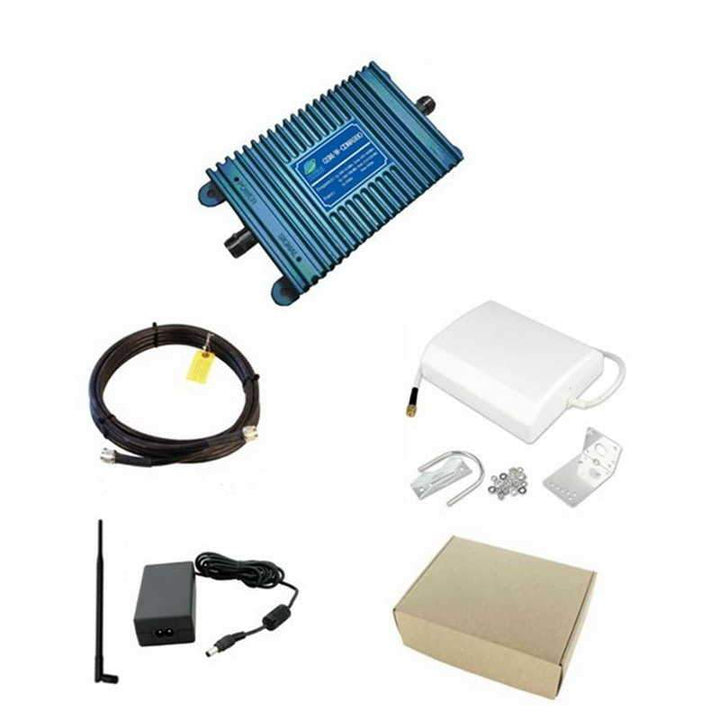

Kit comes complete with everything you need to increase signal, one price includes all peripheral items needed for a complete installation: external aerial, cables, booster base unit, internal aerial, and power adapter and its easy install.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How shown dBm reading on phone, can refer Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [3G Data and Voice Calls] (Band 8, 1) |
| Country | Sweden |
| Boost All On | Tele2 (2G & 3G & 4G) Telenor (2G & 3G & 4G) Telia (2G & 3G & 4G) Three (3) (3G) Comviq (2G & 3G & 4G) Lycamobile (2G & 3G) Vectone Mobile (2G & 3G) |
| Users Supporting | 25 Simultaneously |
| Band | Dual Band 8 & 1 |
| Frequency | 900 & 2100MHz |
| Gain(dB) | Uplink Gp≥50; Downlink Gp≥55 |
| Up-link | 890~915 MHz; 1930~1990 MHz |
| Down-link | 935~960 MHz; 2110~2180 MHz |
| Export Power(Po) | -70~-40 dBm/FA(1.23MHz) |
| Power Adapter | Input: AC 100V~240V 50/60Hz; Output: DC 5V |
| Kit Includes | 1 x Booster, 1 x Outdoor Antenna, 1 x Indoor Antenna, 1 x Power Adapter, 1 x 10 Meters Outdoor Cable |
Example Installation
