Calls - 500m2 (DTAC) Mobile Signal Booster
Frequently Bought Together
Boost Your Calls
Experience crystal clear voice calls with the 500m2 (DTAC) Mobile Signal Booster. Designed to amplify 2G signals on the 1800MHz frequency, this booster ensures that you never miss an important call again, allowing you to stay connected effortlessly.
Wide Coverage Area
Cover a remarkable area of up to 500 square meters with the 500m2 Mobile Signal Booster. Perfect for medium-sized places like houses, offices, or warehouses, this device spreads strong mobile signals throughout any environment, ensuring reliable connectivity.
SMS Support
Easily send and receive SMS text messages swiftly with our signal booster. Whether it's a personal chat or an important notification, you can rely on uninterrupted message delivery, keeping you in touch with friends, family, and colleagues.
Complete Installation Kit
The 500m2 booster comes as a complete package, including everything needed for quick and easy installation. From the external and internal antennas to cables and power adapters, you'll have all components included for a hassle-free setup.
User-Friendly Setup
Installation is a breeze with our user-friendly guide. Simply follow the steps to place antennas and connect cables, and you’ll enhance your mobile signal in no time. Get your signal booster up and running effortlessly!
Enhanced Performance Options
Elevate your signal boosting experience with optional upgrades like a higher gain Yagi antenna or surge protector. These enhancements ensure optimal performance, catering to your specific signal needs, thereby boosting connectivity where it’s needed the most.
It boost Calls signal on 1800MHz frequency, the frequency used in Thailand used by mobile networks to deliver their mobile services: 2G (also known as GSM). It work on 1800Mhz (Band 3) frequency for improving DTAC mobile carrier networks Voice Calls & Text signal. It is a high-performance booster, boost indoor signal cover an area up to 500 m2, perfect for medium houses, offices, warehouse and more.
No Miss Important Calls
SMS Text Messages Quickly
Reception Up to 500 sq.m.
Upgrade External Cables
If our standard package 10 meter external cable length is not enough to cover your area you have an upgrade option.
Upgrade External Aerial
Higher Gain Yagi Antenna - For better performance it's a must if indoor your phone with 1/2 signal bars. Or get this upgrade if outdoor best signal strength in the following range:2G (GSM) -76 to -90 dBm
3G (UMTS) -80 to -94 dBm
4G (LTE) -97 to -105 dBm
How to shown dBm reading on phone? Check Quick Start Guide
Upgrade Protector
Lightning Surge Protector - Designed to Protect your equipment from high amperage surges due to lightning strikes on aerials or masts in close proximity to the device. This unit is rated for 18KA of current surge and is very simple to install on any device.
Specification
| Application & Bands | [Voice Calls] (Band 3) |
| Country | Thailand |
| Boost All On | DTAC (2G) |
| Users Supporting | 50 Simultaneously |
| Band | Single Band 3 |
| Frequency | 1800MHz |
| Gain(dB) | Uplink Gp≥55; Downlink Gp≥60 |
| Up-link | 1710~1785 MHz |
| Down-link | 1805~1880 MHz |
| Export Power(Po) | ≥27dBm |
| Power Adapter | Input: AC 100V~240V 50/60Hz Output: DC 5V |
| Kit Includes | 1 x Booster 1 x Outdoor Antenna 1 x Indoor Antenna 1 x Power Adapter 1 x 10 Meters Outdoor Cable 1 x 5 Meters Indoor Cable |
Custom your solution
Expandable coverage by adding indoor antenna if the outside signal is strong.
How It Works
1
The powerful antenna reaches out to access a voice and 3G, 4G, and LTE data signal, and delivers it to the booster
2
The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.
3
Your devices get increased cell reception, and calls and data are fed through the booster back to the network.
Get stronger signal
Normal Cell Coverage
Dropped calls and slow data are generally caused by three things: distance from a cell tower, building materials in your home or office, or obstruction from tall objects such as trees, topography, and buildings.
Signal Coverage with our booster
Signal boosters increase cell signal by collecting signals with a powerful antenna, delivering those signals to the booster, amplifying the cell signals so your devices receive them, and delivering your device's boosted signals back to the cell tower.Installation
- Connect the indoor antenna to the MS port.
- Connect the outdoor antenna to the BS Port.
- Install the outdoor antenna and keep a minimum vertical distance of 10 meters from the indoor antenna.
- Point the outdoor antenna to the direction where you know there is possibly a higher signal strength from the base station.
- Power on the booster and check the signal strength.
- Adjust the outdoor antenna until you get the best signal strength.
IMPORTANT NOTE:
DO NOT POWER ON THE DEVICE UNTIL YOU HAVE COMPLETED THIS SETUP.
Read more about User Manual Documentation.
Application Scenarios
Home
Office
Garage
Metal Buildings
- What is the Calls - 500m2 (DTAC) Mobile Signal Booster? - The Calls - 500m2 (DTAC) Mobile Signal Booster is a device designed to improve your mobile signal in areas where the reception is weak. It works by boosting the 1800MHz frequency, which is commonly used by mobile networks in Thailand, specifically helping to ensure clearer voice calls and faster text messaging.
- How much area can the signal booster cover? - This signal booster can enhance your mobile signal in an area up to 500 square meters. That means you can use it effectively in medium-sized homes, offices, or warehouses without worrying about losing signal quality.
- Do I need to install it myself? - Yes! The booster comes with everything you need for a complete installation, including antennas and cables. It's designed for easy installation, and we recommend a trial setup to find the best locations for the antennas before finalizing the setup.
- What if there is no signal outside? - The booster amplifies existing signals, but if there is no signal at all outside, it won't work. It's essential to place the external antenna in a location where it can detect a reasonable signal.
- Can I use the booster for multiple users? - Yes, the Calls - 500m2 booster can support up to 50 users at the same time. This means several people can make calls, send texts, and use the mobile internet all while enjoying improved signal strength.
- What upgrades are available for the booster? - You have options to upgrade components of the booster, like choosing longer external cables or a higher-performance outdoor aerial for better signal reception. You can also add a lightning protector to keep your equipment safe.
- Is this booster compatible with all mobile networks? - This specific booster is designed to work with DTAC mobile services that utilize the 1800MHz frequency. It may not be compatible with other networks or frequencies.
- How do I check my current signal frequency? - To check your frequency band, you can dial *3001#12345# on your iPhone and check the 'Freq Band Indicator'. Alternatively, you can use apps like 'CellMapper' or 'Network Signal Info Pro' to determine the frequency.
- What should I do if the signal is still weak after installation? - If the signal remains poor after installation, check to ensure the external antenna is positioned correctly and is in an area with a good signal. You may also want to consider upgrading the external aerial for better performance.

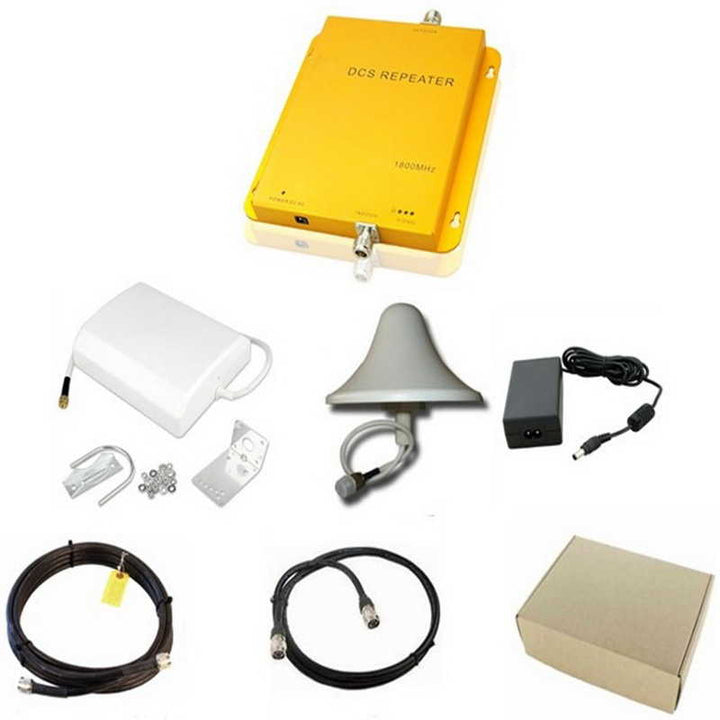

- What is included in the booster kit? - The booster kit contains a booster unit, an outdoor antenna, an indoor antenna, a power adapter, a 10-meter outdoor cable, and a 5-meter indoor cable, everything needed for setting up the system and enhancing your signal.
