Description
7/9/12 dBi Gain
Works for all model boosters
Special Usage
- Outside only can find 1-2 bars signal (best full signal with 5 bars)
- Inside no signal bars or only can get when close to or out of window
- Basement, Farm, Buildings, Offices, Boat/Yacht, Stone or Steel Structure Property, Rural Area, Shed etc
The high gain yagi antenna increases the signal received by the mobile booster and is compatible with all of our products. This improves coverage area and signal quality by capturing a stronger input signal.
Specification
| Frequency Range | 800MHz - 2600MHz |
| Gain | 12dBi |
| VSWR | 1.5:1 |
| Max Impedance | 50Ω |

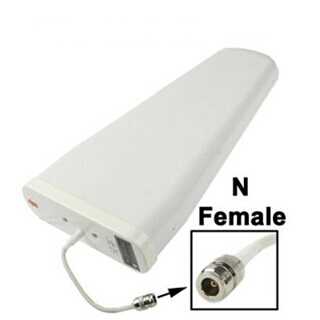

| Termination | 0.6m cable with N-type (F) connector |
| Horizontal Beamwidth | 45° |
| Vertical Beamwidth | 40° |
| Dimension | 420x210x64mm/41" x 8" x 1" |
| Wind survival rating | 200 kph / 125 mph |
| Temperature range (°C) | -35 to +70 |
Higher Gain Yagi Antenna
£50.00
